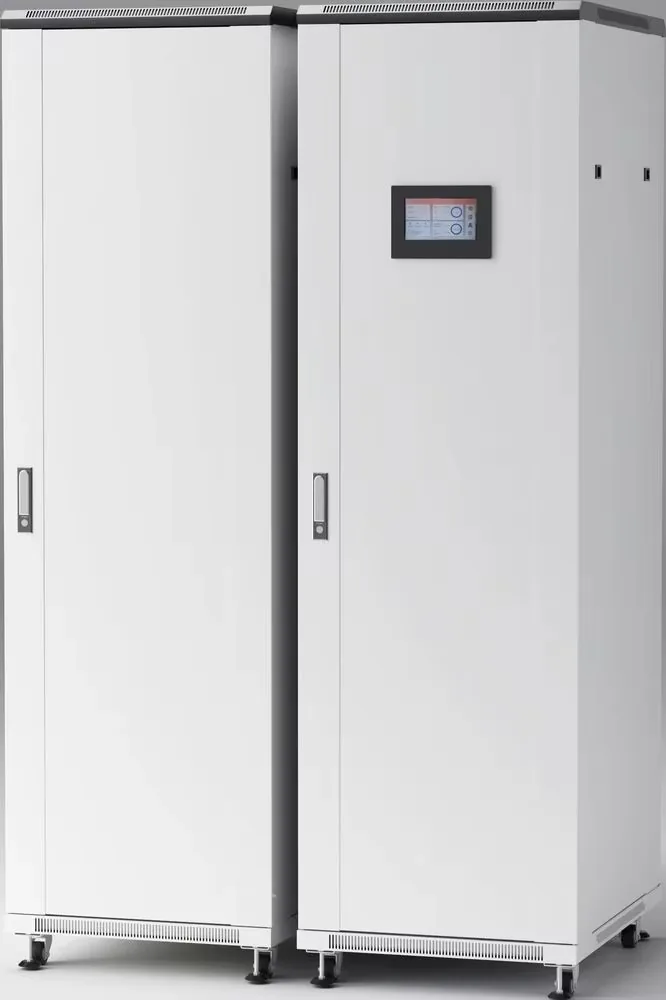

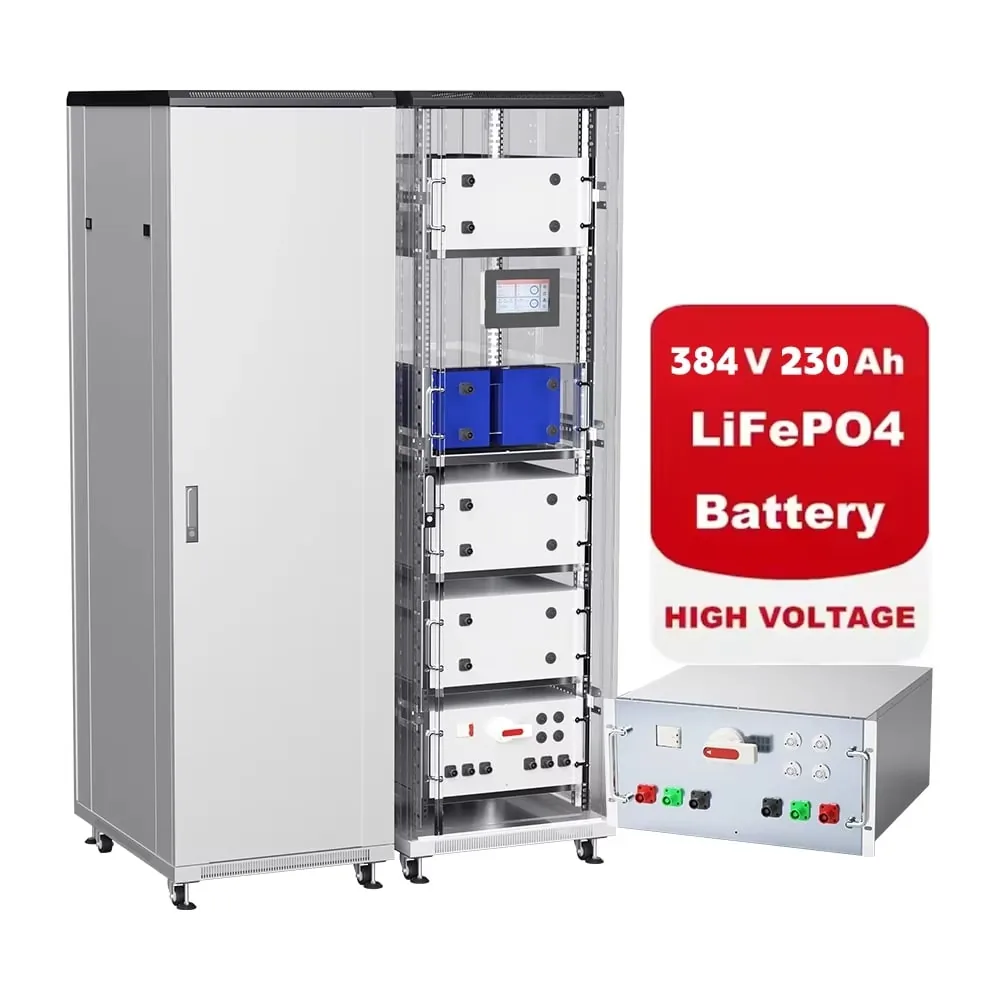

High-voltage lithium battery cabinet, open

Holdvolt L48 / L51 / L144–L576

LiFePO4 Rack Battery for UPS, 48 V and 51.2 V

Rack modules for UPS, telecom and storage; high-voltage cabinets for large UPS systems.

48 / 51.2V: Rack modules
20–200Ah: Capacity
>4000: Cycles
144–576V: High-voltage cabinets

Request a quote Specifications

Features

48 V – 576 V

Cells

LiFePO4
>4000 cycles
Built-in BMS

Interface

RS485
CAN
Dry contact

Options

Display
Bluetooth
GPS
Custom size

Specifications

Factory catalog values, model by model.

Rack modules and high-voltage cabinets

Model	L51-20	L51-50	L51-80	L51-100	L51-150	L51-200	L48-20	L48-50	L48-80	L48-100	L48-150	L48-200	L144-100	L192-120	L192-200	L384-40	L384-60	L384-95	L576-100
Battery
Nominal voltage	51.2V/16S	51.2V/16S	51.2V/16S	51.2V/16S	51.2V/16S	51.2V/16S	48V/15S	48V/15S	48V/15S	48V/15S	48V/15S	48V/15S	144V	192V	192V	384V	384V	384V	576V
Rated capacity	20Ah	50Ah	80Ah	100Ah	150Ah	200Ah	20Ah	50Ah	80Ah	100Ah	150Ah	200Ah	100Ah	120Ah	200Ah	40Ah	60Ah	95Ah	200Ah
Charge current	15A	25A	40A	50A	50A	50A	15A	25A	40A	50A	50A	50A	100A	120A	100A	40A	50A	50A	50A
Discharge current	20A	25A	80A	100A	100A	100A	20A	25A	80A	100A	100A	100A	200A	240A	200A	80A	100A	100A	100A
Thermal decomposition temperature	Up to 800 °C
Cycle life	More than 4,000 cycles
Physical
Dimensions	482.6(360)×90×280mm	482.6(360×133×330mm	482.6(442)×133×380mm	482.6(442)×177×400mm	482.6(442)×222×480mm	482.6(442)×222×580mm	482.6(360)×90×280mm	482.6(360)×133×330mm	482.6(442)×133×380mm	482.6(442)×177×400mm	482.6(442)×222×480mm	482.6(442)×222×580mm	860×633×600mm	600×650×140mm	1850×1500×750mm	550×550×1200mm	550×550×1200mm	1110×633×600mm	1800×750×500mm
Weight	11kg	21kg	36kg	45kg	56kg	63kg	11kg	21kg	36kg	45kg	56kg	63kg	240kg	560kg	300kg	340kg	370kg	410kg	930kg
Display & communication
Optional features	Optional display, Bluetooth, GPS. Communication: RS485, CAN, dry contact
Other
Customization	Dimensions, capacity, and other special requirements can be customized.

Factory values. Specifications may change; confirm against the quotation.Swipe the table sideways.

Where it fits

Applications and guides for this range.

Application

Data Centers

Data center power has to grow with the racks and stay up while you service it. We supply modular, rack-mount and lithium-ion online UPS systems from server room to full data hall.

Application

Telecom

Telecom and network sites run unattended, often on unstable rural supplies. We supply rack-mount, modular and lithium-ion online UPS systems that keep links up and report problems remotely.

Guide

Lithium-Ion vs Lead-Acid UPS Batteries: LiFePO4 or VRLA?

VRLA lead-acid is the low-cost, familiar choice for UPS backup. Lithium iron phosphate (LiFePO4) costs more up front but lasts longer, weighs less, takes heat better and needs fewer replacements. The right answer depends on runtime, room temperature and how long you keep the system.

Questions buyers ask

What do you need for a quotation?

Load in kVA or kW, input voltage and phases, output phases, the backup time you need and where the unit will be installed. If you are unsure, send what you know and we will ask for the rest.

Can the unit carry our brand?

Yes. Logo, front panel, packaging and manual can be supplied under your brand. Minimum quantities and lead times are on the OEM / ODM page.

Five numbers get you a quote

Send what you know. We reply within one working day.

LoadkVA or kW, and what it is
Input voltage and phasese.g. 400 V three-phase, 50 Hz
Output phasesSingle- or three-phase
Backup timeMinutes at full or typical load
SiteIndoor, temperature, altitude, generator
