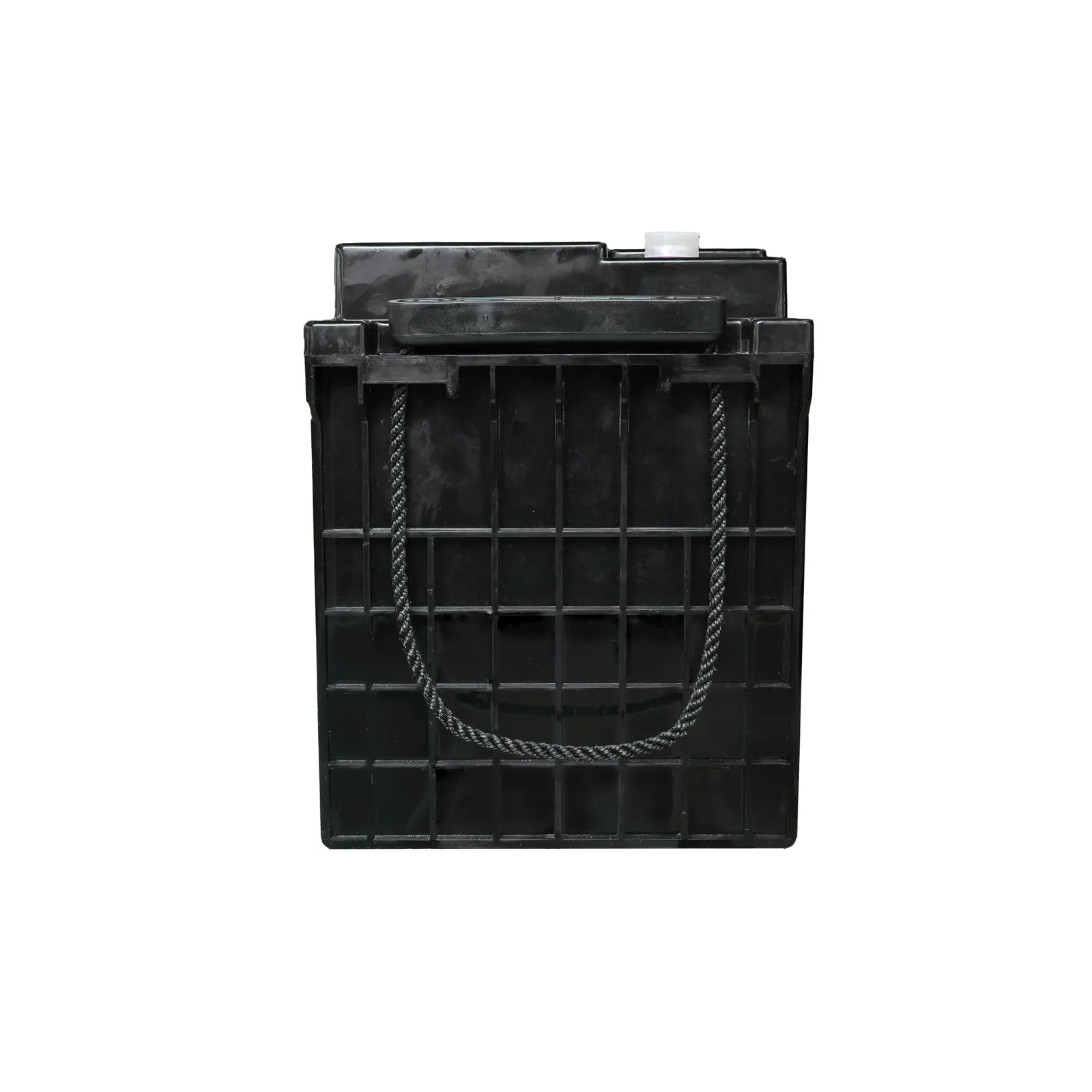

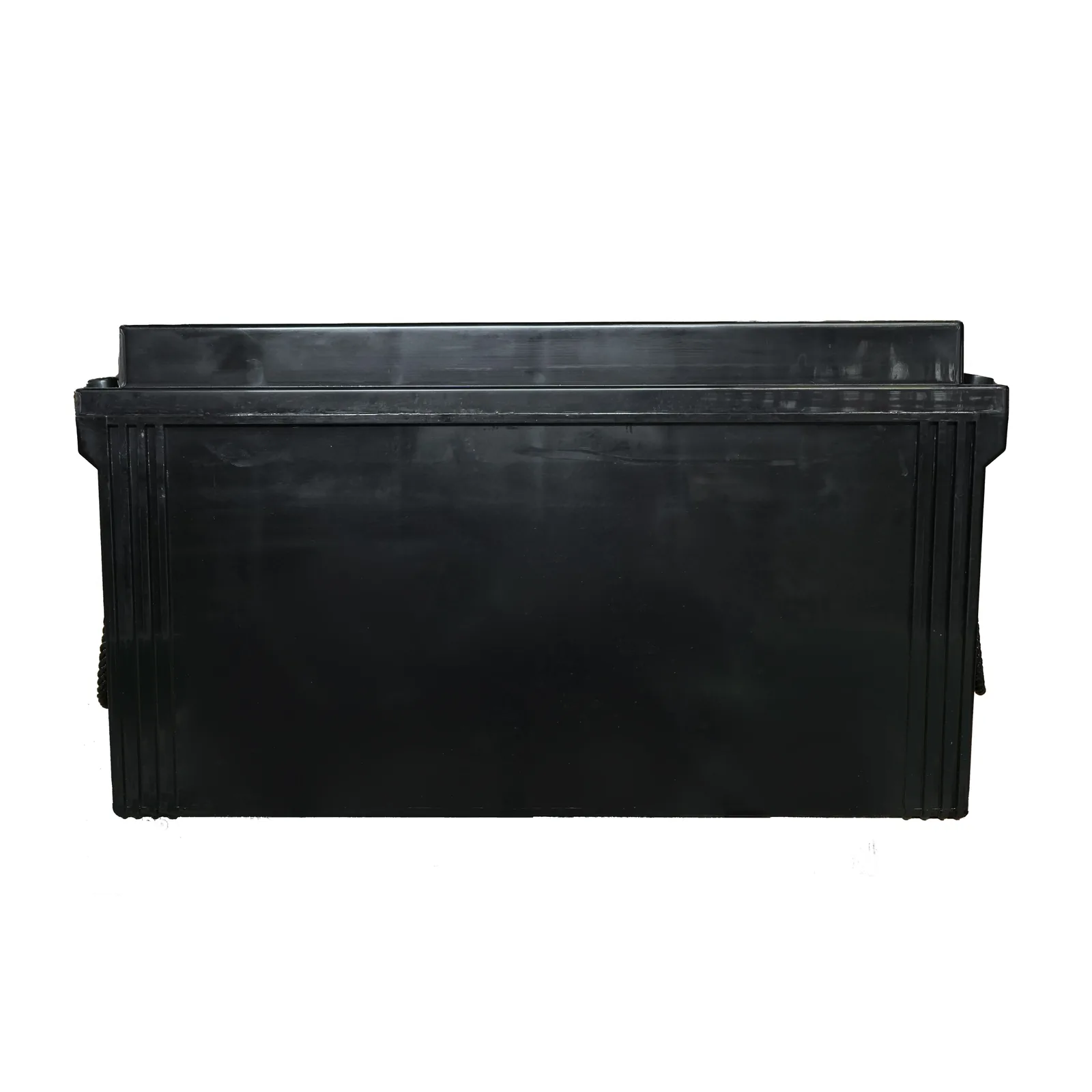

Holdvolt B12
VRLA Battery for UPS, 12 V 24–250 Ah
Sealed maintenance-free lead-acid batteries for UPS battery cabinets and replacements.
- 12V
- Nominal voltage
- 24–250Ah
- Capacity range
- 23
- Models
Features
12 V, 24–250 Ah
Battery
- Valve-regulated
- Maintenance-free
- AGM
Specifications
Factory catalog values, model by model.
12 V range
| Model | B12-24A | B12-24B | B12-33 | B12-38 | B12-40 | B12-50A | B12-65 | B12-80A | B12-80B | B12-80C | B12-90 | B12-100A | B12-100B | B12-120A | B12-120B | B12-150A | B12-150B | B12-150D | B12-180 | B12-190 | B12-200A | B12-200B | B12-250A |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Battery | |||||||||||||||||||||||
| Rated voltage (V) | 12 | ||||||||||||||||||||||
| Rated capacity (Ah) | 24 | 24 | 33 | 38 | 40 | 50 | 65 | 80 | 80 | 80 | 90 | 100 | 100 | 120 | 120 | 150 | 150 | 150 | 180 | 190 | 200 | 200 | 250 |
| Internal resistance (mΩ) | 16.0 | 21.0 | 13.0 | 12.2 | 12.2 | 11.8 | 7.5 | 6.6 | 6.6 | 6.6 | 5.9 | 5.2 | 5.2 | 5.2 | 4.2 | 4.8 | 3.8 | 5.0 | 5.5 | 4.0 | 4.0 | 4.0 | 3.8 |
| Max. discharge current / Imax | 360 | 360 | 396 | 456 | 480 | 540 | 780 | 960 | 960 | 960 | 1080 | 1200 | 1200 | 1440 | 1440 | 1800 | 1800 | 1800 | 2160 | 2280 | 2400 | 2400 | 3000 |
| Rated hour-rate capacity (Ah) – 20-hour rate (HR) | 24.0 | 24.0 | 35.6 | 40.8 | 43.0 | 53.8 | 70.0 | 86.0 | 86.0 | 86.0 | 96.8 | 100.0 | 107.6 | 120.0 | 129.2 | 150.0 | 157.4 | 161.4 | 193.8 | 206.0 | 216.0 | 216.0 | 270.0 |
| Rated hour-rate capacity (Ah) – 10-hour rate (HR) | 22.1 | 22.3 | 33.0 | 38.0 | 40.0 | 50.0 | 65.0 | 80.0 | 80.0 | 80.0 | 90.0 | 92.9 | 100.0 | 112.0 | 120.0 | 143.0 | 150.0 | 150.0 | 180.0 | 190.0 | 200.0 | 200.0 | 250.0 |
| Rated hour-rate capacity (Ah) – 3-hour rate (HR) | 18.9 | 18.0 | 27.1 | 31.2 | 32.7 | 40.8 | 53.4 | 65.7 | 65.7 | 65.7 | 73.8 | 76.2 | 81.9 | 89.7 | 94.5 | 114.3 | 121.5 | 123.0 | 147.9 | 156.0 | 164.1 | 164.1 | 205.2 |
| Rated hour-rate capacity (Ah) – 1-hour rate (HR) | 15.8 | 15.0 | 22.2 | 25.6 | 26.9 | 33.6 | 43.8 | 53.9 | 53.9 | 53.9 | 60.6 | 62.6 | 67.3 | 71.0 | 74.9 | 96.0 | 93.0 | 101.0 | 121.0 | 128.0 | 135.0 | 135.0 | 168.0 |
Factory values. Specifications may change; confirm against the quotation.Swipe the table sideways.
Where it fits
Applications and guides for this range.
How to Size an Online UPS: kVA, kW, Inrush and Battery Runtime
Sizing a UPS system is two jobs: choose a power rating that carries the load with margin, then a battery that carries it for long enough. Here is a method and a worked estimate; for a real project, ask us for a calculation.
GuideLithium-Ion vs Lead-Acid UPS Batteries: LiFePO4 or VRLA?
VRLA lead-acid is the low-cost, familiar choice for UPS backup. Lithium iron phosphate (LiFePO4) costs more up front but lasts longer, weighs less, takes heat better and needs fewer replacements. The right answer depends on runtime, room temperature and how long you keep the system.
Questions buyers ask
What do you need for a quotation?
Load in kVA or kW, input voltage and phases, output phases, the backup time you need and where the unit will be installed. If you are unsure, send what you know and we will ask for the rest.
Can the unit carry our brand?
Yes. Logo, front panel, packaging and manual can be supplied under your brand. Minimum quantities and lead times are on the OEM / ODM page.
