Holdvolt ES
All-in-One Energy Storage, Inverter and LiFePO4

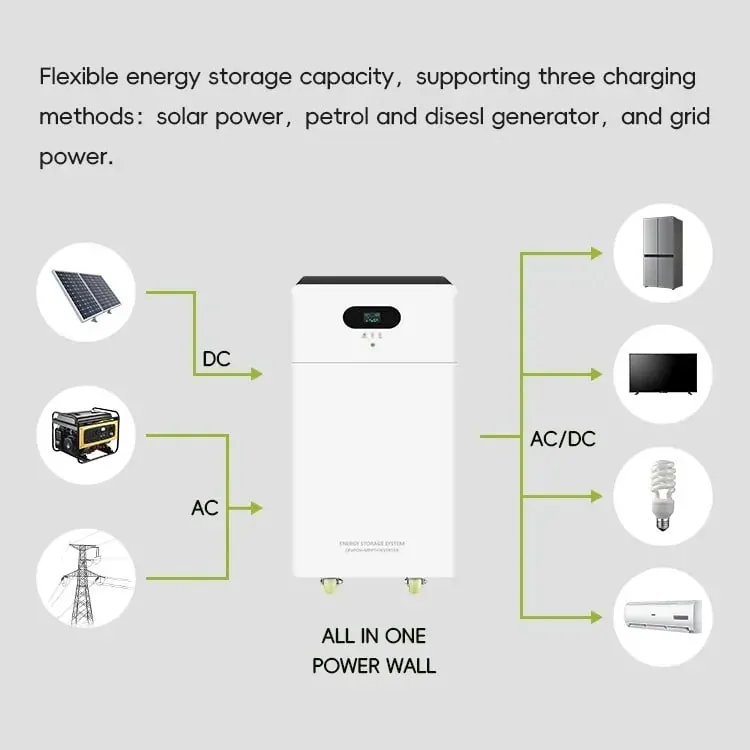

Inverter, solar charger and lithium battery in one cabinet.
- 3kW
- Pure sine inverter
- 5.1kWh
- LiFePO4 battery
- 2240W
- PV input, max.
Features
3 kW / 5.1 kWh
System
- Inverter + battery
- LiFePO4
- MPPT solar input
- 50 / 60 Hz
Specifications
Factory catalog values, model by model.
3 kW / 5.1 kWh
| Model | ES-3K |
|---|---|
| Other | |
| Rated power | 3000W |
| Protection | Battery undervoltage protection/Battery overvoltage protection/Battery overvoltage recovery voltage/Overload power protection/Short circuit protection/Overtemperature protection |
| Cooling method | Cooling fan in intelligent control |
| Working mode | Inverter priority/mains priority/energy saving mode |
| LiFePO4: Optional add-on features | Bluetooth/Heating |
| Battery | |
| Maximum charging current (mains + photovoltaic) | 55A |
| Maximum photovoltaic / mains charging current | 40A/15A |
| LiFePO4: Nominal voltage | 51.2V |
| LiFePO4: Nominal capacity | 100Ah |
| LiFePO4: Rated capacity (C5) | 100Ah@25°C |
| LiFePO4: Energy | 5120Wh |
| LiFePO4: Months self discharge | <3% |
| LiFePO4: Charge efficiency | 99.5%@0.2C |
| LiFePO4: Discharge efficiency | 96-99%@1C |
| LiFePO4: Terminal diameter | M8 |
| LiFePO4: Internal resistance (fully charged, 25°C) | <30mΩ |
| LiFePO4: Cycle life | >8000 cycles @ 0.2C 80% O.D.D |
| LiFePO4: Capacity affected by temperature | 40°C 101%; -10°C 75% |
| LiFePO4: Water dust resistance | IP20 |
| LiFePO4: Cells | 16 Strings |
| LiFePO4: Container | Metal |
| LiFePO4: Nominal operating temperature | 25°C±3°C (77°F±5°F) |
| LiFePO4: Operating temperature range | Discharge -20°C–60°C (-4°F–140°F); Charge 0°C–45°C (32°F–113°F); Storage 0°C–40°C (32°F–104°F) |
| LiFePO4: Charge current | 40A |
| LiFePO4: Maximum charge current | 100A |
| LiFePO4: Charge cut off voltage/charge voltage | 58.4V |
| LiFePO4: Continuous discharge current | 100A |
| LiFePO4: Maximum pulse current | 100A (<500us) |
| LiFePO4: Discharge cut off voltage | 43.2V |
| Input | |
| AC input voltage | AC100V-120V model: 105VAC/110VAC/115VAC/120VAC (can be set); AC220V-240V model: 220VAC/230VAC/240VAC (can be set) |
| AC input frequency | 45Hz–55Hz(50Hz), 55Hz–65Hz(60Hz) |
| Max PV input voltage (Voc) | 180VDC |
| PV array maximum power | 2240W |
| MPPT tracking voltage range | 60V-140VDC |
| Output | |
| Output wave | Pure Sine Wave |
| Output voltage/frequency (INV mode) | 110VAC/120VAC/220VAC/230VAC/240VAC, 50Hz±1%, 60Hz±1%(can be set) |
| Efficiency | |
| Conversion efficiency (INV mode) | >85% |
| Display & communication | |
| Display | LCD |
| Communication | RS485 communication / APP (WIFI/GPRS data collection) optional |
| LiFePO4: Communicate protocol (optional) | RS485 |
| Environment | |
| Operating temperature | -10°C–40°C |
| Relative humidity | 0%-95% (No condensation) |
| Physical | |
| Product size (L*W*H mm) | 525*245*938 |
| Package size (L*W*H mm) | 585*305*1100 |
| N.W. (kg) (excluding battery) | 132kg±2.5kg |
| G.W. (kg) (excluding battery) | 140kg±2.5kg |
Factory values. Specifications may change; confirm against the quotation.Swipe the table sideways.
