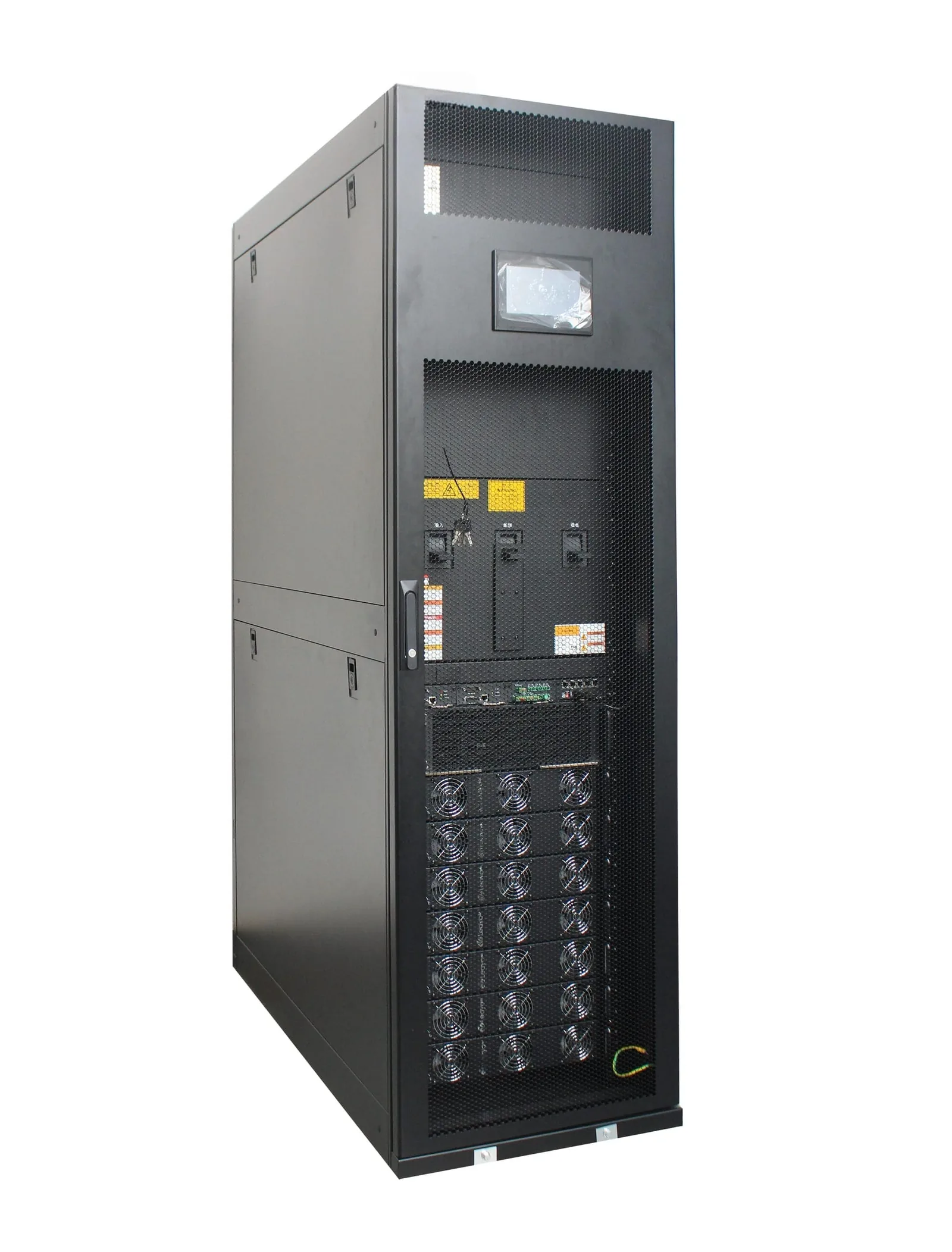

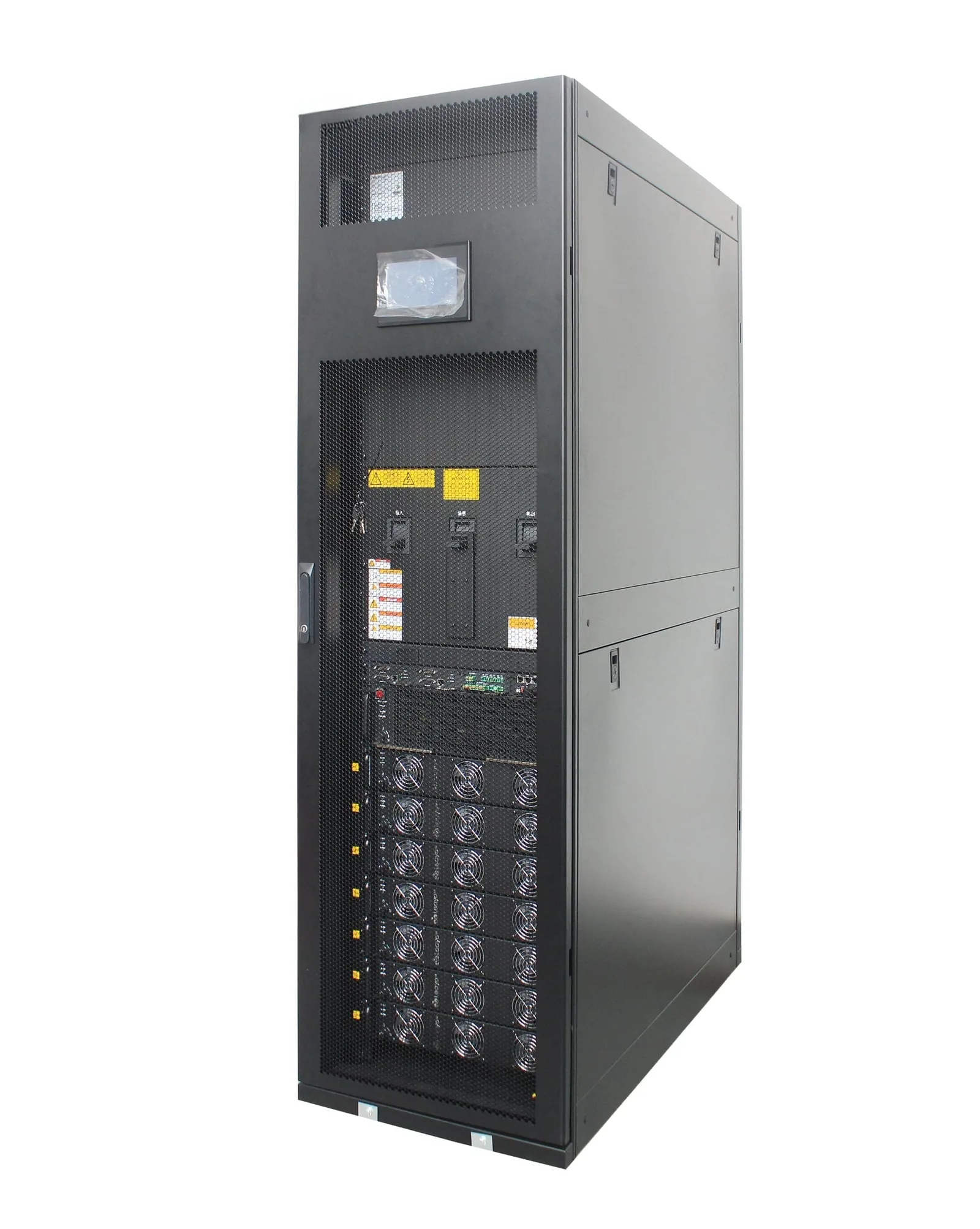

Holdvolt M33R
Rack-Mount Modular UPS, 10–200 kVA
Modular double conversion in a 19-inch cabinet, sized for server rooms and edge data centers.
- 10–200kVA
- System capacity
- Hot
- Swap power modules
- N+X
- Redundancy
- 19"
- Rack cabinet
Features
10–200 kVA
Modules
- Hot-swappable
- N+X redundancy
Cabinet
- 19-inch rack
- Front access
Control
- LCD
- RS-232 / RS-485
- SNMP (option)
Specifications
Factory catalog values, model by model.
Rack and rack / tower cabinets
T = rack / tower compatible, R = rack only; number = module slots.
| Model | M33R-T2 | M33R-T4 | M33R-T6 | M33R-R2 | M33R-R4 | M33R-R6 |
|---|---|---|---|---|---|---|
| Other | ||||||
| Cabinet capacity | 20\30kVA | 40\60kVA | 60\90\120\150kVA | 40\50\60\100kVA | 80\100\120\200kVA | 120\150kVA |
| Maximum number of modules | 2 | 4 | 6 (30kVA module: 5+1 redundancy) | 2 | 4 | 6 (30kVA module: 5+1 redundancy) |
| Compatible power module | 10\15kVA | 10\15kVA | 10\15\20\25\30kVA | 20\25\30\50kVA | 20\25\30\50kVA | 20\25\30kVA |
| Caution function | Multiple alarm functions such as overload, abnormal mains power, UPS failure, battery undervoltage, etc | |||||
| Protection function | Battery undervoltage, output undervoltage, short circuit, overload, overheating, fan fault alarm, lightning protection | |||||
| Physical | ||||||
| Cabinet size: D × W × H (mm) | 750 × 545 × 649 | 750 × 545 × 827 | 750 × 545 × 1005 | 40\50\60kVA: 835 × 485 × 356 / 100kVA: 485 × 825 × 489.5 | 80\100\120kVA: 835 × 485 × 534 / 200kVA: 485 × 835 × 756.5 | 485 × 835 × 712 |
| Module size: W × D × H (mm) | 440 × 620 × 86mm | 440 × 620 × 86mm | 440 × 620 × 86mm | 20/25/30kVA: 620 × 440 × 86 / 50kVA: 440 × 620 × 131 | 20/25/30kVA: 620 × 440 × 86 / 50kVA: 440 × 620 × 131 | 20/25/30kVA: 620 × 440 × 86 |
| Cabinet weight (kg) | 63 | 75 | 87 | 40\50\60kVA: 44.5 / 100kVA: 50 | 80\100\120kVA: 53.5 / 200kVA: 72.5 | 63.5 |
| Module weight (kg) | 10/15/20kVA: 20.8; 25/30kVA: 21.6 | 10/15/20kVA: 20.8; 25/30kVA: 21.6 | 10/15/20kVA: 20.8; 25/30kVA: 21.6 | 20kVA: 20.8; 25/30kVA: 21.6; 50kVA: 33 | 20kVA: 20.8; 25/30kVA: 21.6; 50kVA: 33 | 20kVA: 20.8; 25/30kVA: 21.6 |
| Input | ||||||
| Input wiring | Three phase five wire | |||||
| Rated input voltage | 380/400/415Vac | |||||
| Input voltage | 138–485Vac | |||||
| Input frequency range | 40Hz-70Hz | |||||
| Input power factor | ≥ 0.99 | |||||
| Input current harmonics (THDI) | ≤ 3% (100% linear load) | |||||
| Generator connection | support | |||||
| Bypass | ||||||
| Bypass voltage range | 220Vac upper limit: 25% (optional+10%, +15%,+20%) 230Vac upper limit: 20% (optional+10%,+15%) / 240Vac upper limit: 15% (optional+10%) Lower limit: -45% (optional -10%, -20%, -30%) | |||||
| Frequency protection range | ± 10% | |||||
| Output | ||||||
| Output wiring | Three phase five wire | |||||
| Rated output voltage | 380/400/415Vac | |||||
| Output power factor | 0.9 or 1 | |||||
| Voltage accuracy | ±1% | |||||
| Output frequency | Commercial power mode: ± 1%, ± 2%, ± 4%, ± 5%, ± 10% can be set; Battery Mode: (50/60±0.1%)Hz | |||||
| Peak current ratio | 3:1 | |||||
| Output voltage harmonics (THDV) | < 2% (100% linear load); < 4% (100% non-linear load) | |||||
| Overload | ||||||
| Overload capacity | 110% load, continue for 60 minutes and then switch to bypass; 125% load, continue for 10 minutes and then switch to bypass; 150% load, continue for 1 minute and then switch to bypass | |||||
| Battery | ||||||
| Battery voltage | ± 180V/192V/± 204V/± 216V/± 228V/± 240/± 252/± 264/± 276/± 288/± 300Vdc (30-50 sections optional) | |||||
| Charging current (A) – cabinet (website column 1 / column 2) | 2 slots 20A/4 slots 40A/6 slots 60A | 2 slots 30A/4 slots 60A | |||||
| Charging current (A) – module (website column 1 / column 2) | Maximum 10A | Maximum 15A | |||||
| Transfer time | ||||||
| Transfer time | Switching from mains mode to bypass mode: 0ms (tracking); Switching from mains mode to battery mode: 0ms | |||||
| Display & communication | ||||||
| Communication interface | CAN,RS485,FE,LBS, Parallel card, SNMP adapter (optional), relay card (optional) | |||||
| Display | 4.3/7-inch color touch screen (features) | |||||
| Environment | ||||||
| Operation temperature | 0°C–40°C | |||||
| Storage temperature | -25°C–55°C | |||||
| Humidity range | 0–95% (non condensing) | |||||
| Working altitude | <1500 meters | |||||
Factory values. Specifications may change; confirm against the quotation.Swipe the table sideways.
Where it fits
Applications and guides for this range.
Data Centers
Data center power has to grow with the racks and stay up while you service it. We supply modular, rack-mount and lithium-ion online UPS systems from server room to full data hall.
GuideWhat Is a Modular UPS? Frames, Hot-Swap Modules and N+X
A modular UPS is one cabinet holding several identical power modules that share the load, the bypass and the battery. You add modules as the load grows, carry a spare for resilience, and swap a failed module without taking the load off line.
Questions buyers ask
What do you need for a quotation?
Load in kVA or kW, input voltage and phases, output phases, the backup time you need and where the unit will be installed. If you are unsure, send what you know and we will ask for the rest.
Can the unit carry our brand?
Yes. Logo, front panel, packaging and manual can be supplied under your brand. Minimum quantities and lead times are on the OEM / ODM page.
