Holdvolt M33
Modular Online UPS, 20–600 kVA
Hot-swap power modules in a single cabinet. Pay for today’s load, add modules later, replace one without dropping the load.
- 20–600kVA
- System capacity
- 20/30/50kVA
- Power modules
- N+X
- Module redundancy
- >0.99
- Input PF at full load
- ≤1.5%
- THDv, linear load
- Hot
- Swap modules on line
How it works
Mains lost. The load does not notice.
- 0 ms
- mains to battery
- DC bus
- battery always connected
- Inverter
- load never sees the grid
Modules

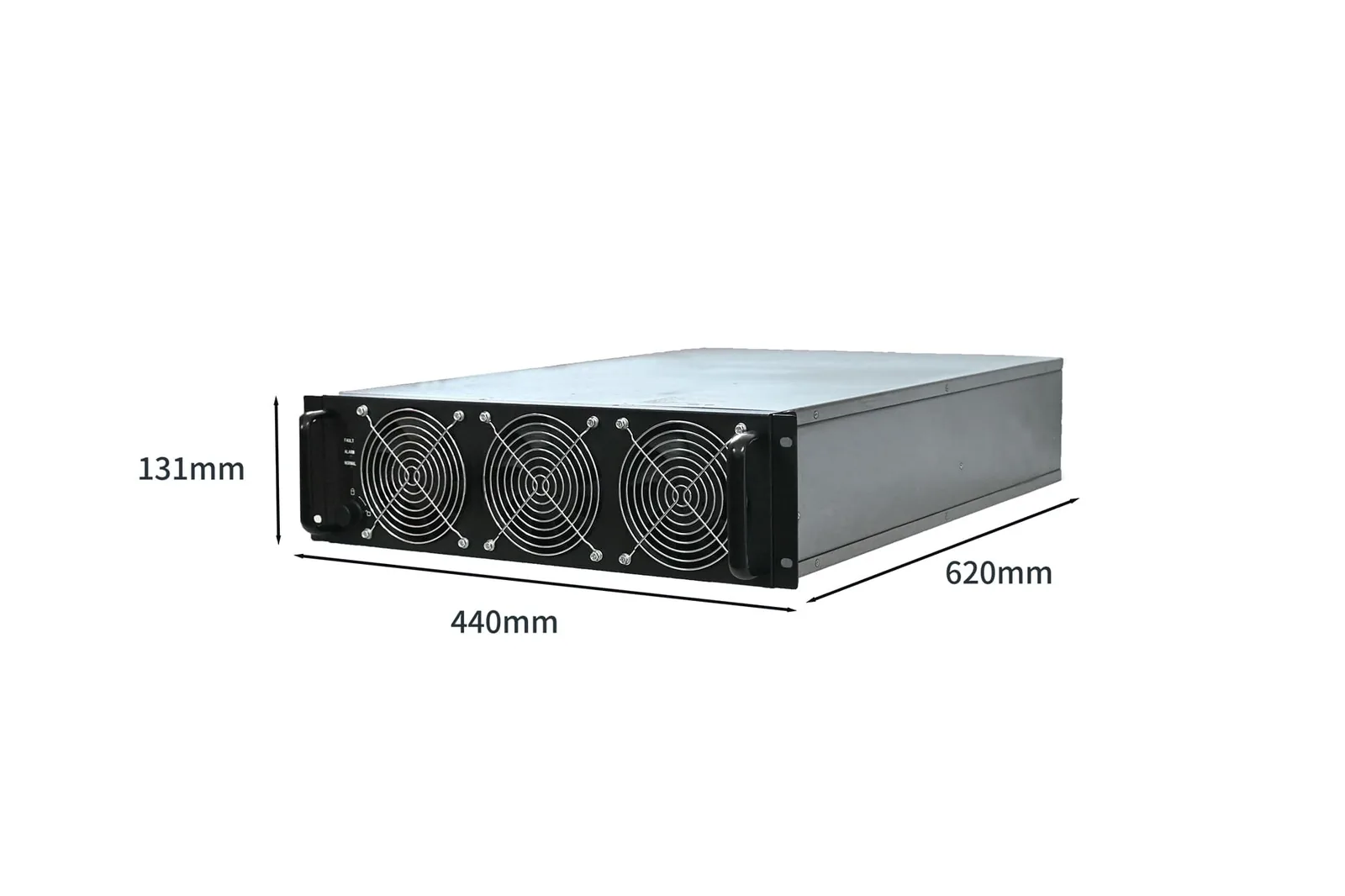

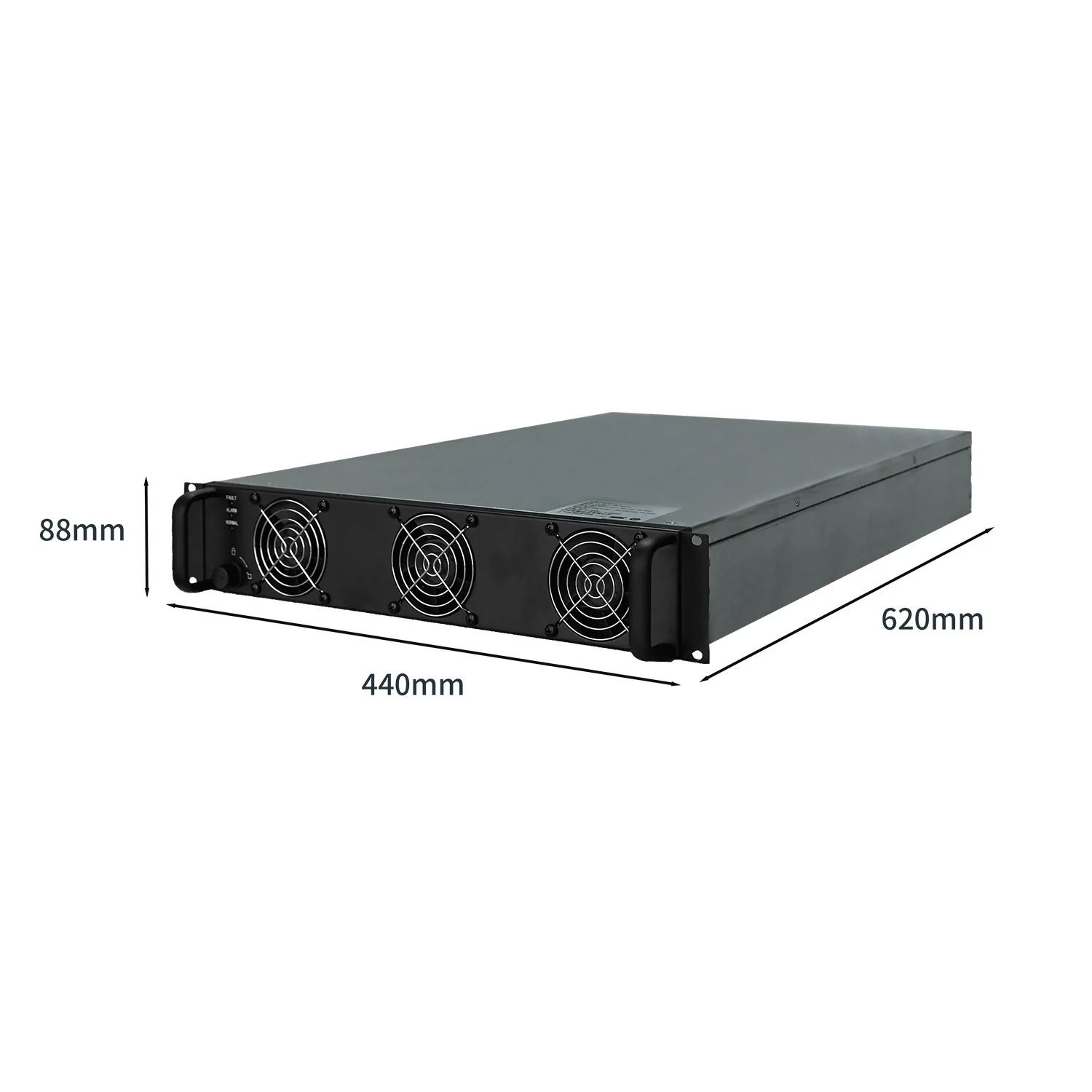

- 20 / 30 / 50 kVA
- Hot-swappable
- N+X redundancy
- Centralised bypass
Grid
- Wide input voltage
- 50 / 60 Hz auto-select
- Input PF >0.99
- THDi <3%
Battery
- External battery
- ±216 V nominal
- Temperature compensation
- Shared battery
Control
- Touch screen
- RS-232 / USB
- SNMP (option)
- Dry contacts
Specifications
Factory catalog values, model by model.

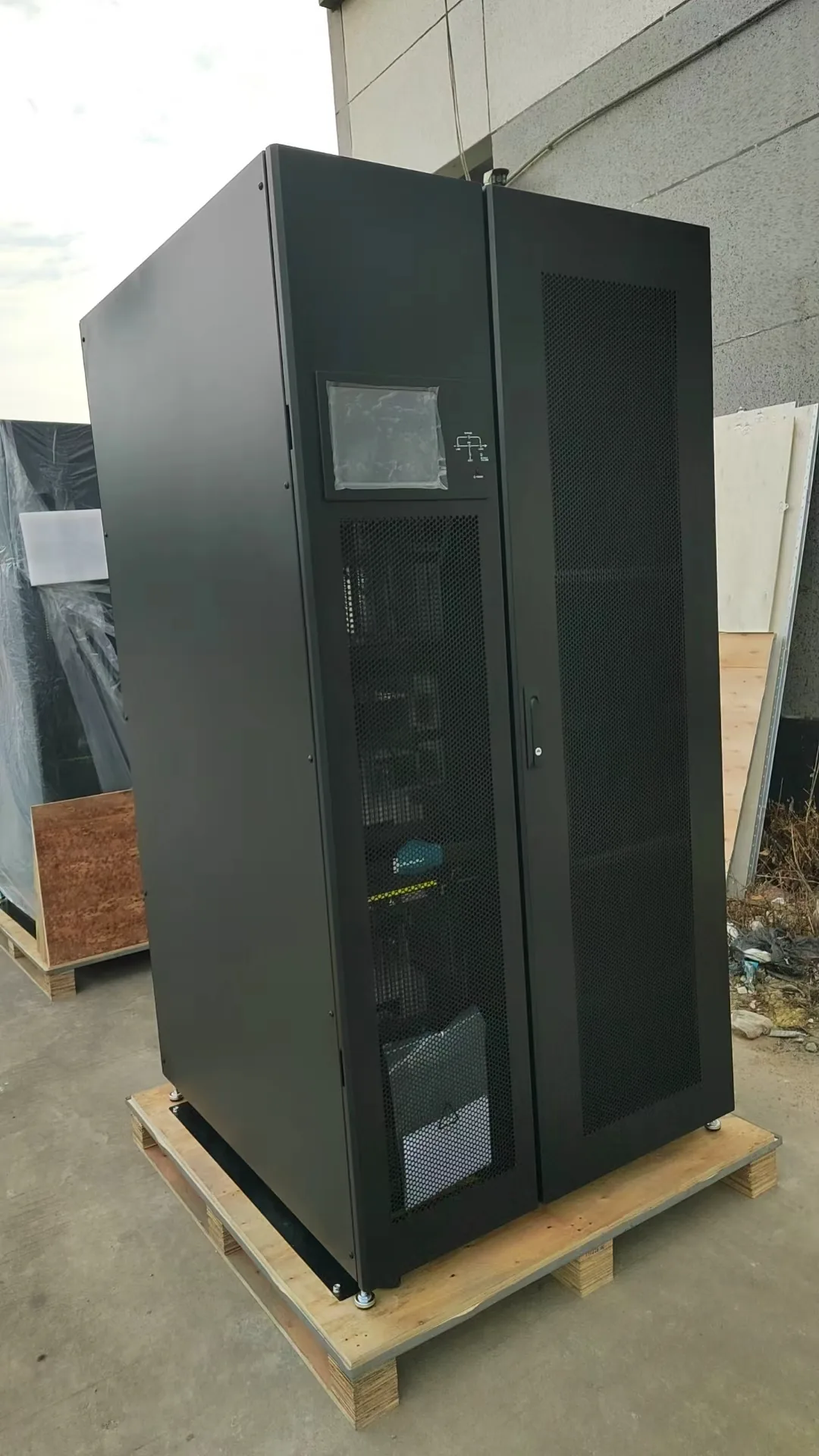

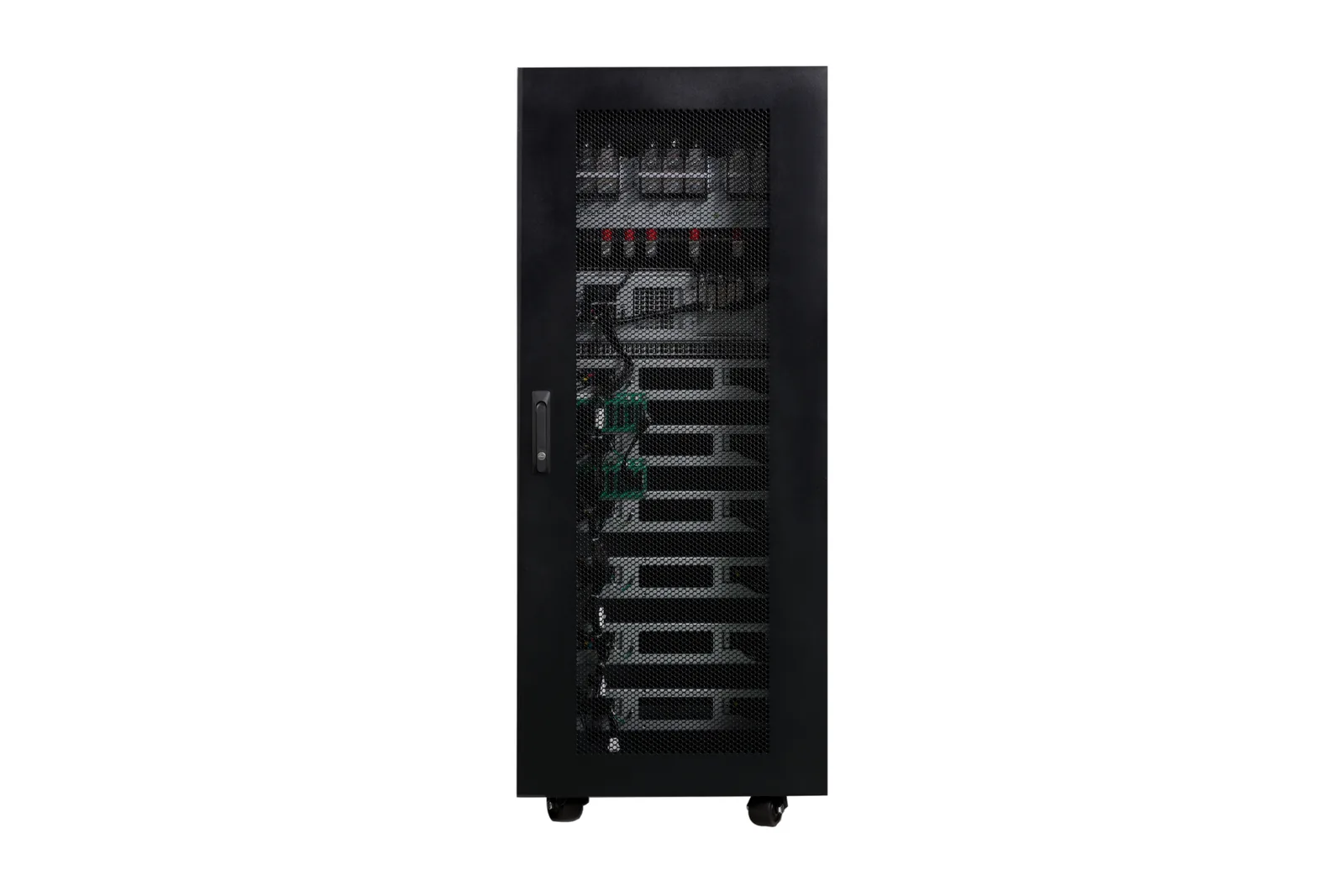

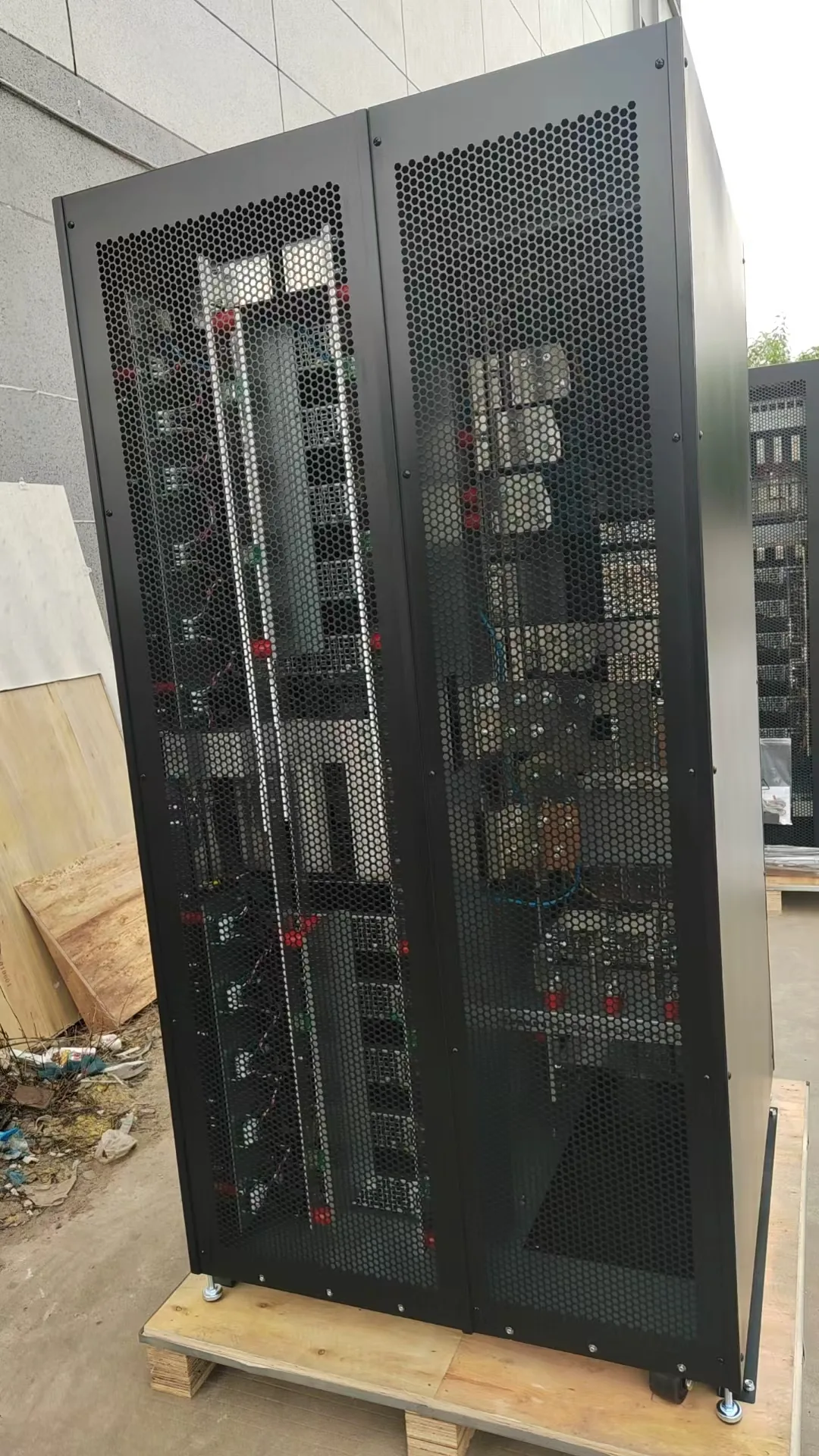

Cabinets with 20, 30 and 50 kVA modules
Model = system kVA / module kVA.
| Model | M33-60/20 | M33-120/20 | M33-200/20 | M33-90/30 | M33-120/30 | M33-180/30 | M33-300/30 | M33-300/50S | M33-300/50 | M33-350/50 | M33-400/50 | M33-500/50 | M33-600/50 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Other | |||||||||||||
| Phase | 3P in 3P out | ||||||||||||
| Cabinet capacity | 60KW | 120KW | 200KW | 90KW | 120KW | 180KW | 300KW | 300KW | 300KW | 350KW | 400KW | 500KW | 600KW |
| Power module capacity | 20KVA/20KW | 20KVA/20KW | 20KVA/20KW | 30KVA/30KW | 30KVA/30KW | 30KVA/30KW | 30KVA/30KW | 50KVA/50KW | 50KVA/50KW | 50KVA/50KW | 50KVA/50KW | 50KVA/50KW | 50KVA/50KW |
| Max. power modules | 3 | 6 | 10 | 3 | 4 | 6 | 10 | 6 | 6 | 7 | 8 | 10 | 12 |
| Max. battery module sets | 3 | - | - | 3 | - | - | - | — | — | — | — | — | — |
| Battery | |||||||||||||
| Battery type | External battery | ||||||||||||
| Rated voltage | ±216V(12Vx36cell) | ±216V(12Vx36cell) | ±216V(12Vx36cell) | ±216V(12Vx36cell) | ±216V(12Vx36cell) | ±216V(12Vx36cell) | ±216V(12Vx36cell) | ±192V–±240V (optional) | ±192V–±240V (optional) | ±192V–±240V (optional) | ±192V–±240V (optional) | ±192V–±240V (optional) | ±192V–±240V (optional) |
| Max. voltage | ±240V(12Vx40cell) | ||||||||||||
| Min. voltage | ±192V(12Vx32cell) | ||||||||||||
| Float voltage | 2.25V/Cell | 2.25V/Cell | 2.25V/Cell | 2.25V/Cell | 2.25V/Cell | 2.25V/Cell | 2.25V/Cell | 2.28V/cell (2.25V–2.33V optional) | 2.28V/cell (2.25V–2.33V optional) | 2.28V/cell (2.25V–2.33V optional) | 2.28V/cell (2.25V–2.33V optional) | 2.28V/cell (2.25V–2.33V optional) | 2.28V/cell (2.25V–2.33V optional) |
| Equalize voltage | 2.35V/Cell | ||||||||||||
| Temperature compensation | Supported | ||||||||||||
| Max. charging current | 6A | 6A | 6A | 8A | 8A | 8A | 8A | 12A (adjustable)per power module | 12A (adjustable)per power module | 12A (adjustable)per power module | 12A (adjustable)per power module | 12A (adjustable)per power module | 12A (adjustable)per power module |
| Input | |||||||||||||
| Rated voltage | 3×380VAC/400VAC/415VAC(3Ph+N) | 3×380VAC/400VAC/415VAC(3Ph+N) | 3×380VAC/400VAC/415VAC(3Ph+N) | 3×380VAC/400VAC/415VAC(3Ph+N) | 3×380VAC/400VAC/415VAC(3Ph+N) | 3×380VAC/400VAC/415VAC(3Ph+N) | 3×380VAC/400VAC/415VAC(3Ph+N) | 3x 380/400/415 VAC(3Ph+N) | 3x 380/400/415 VAC(3Ph+N) | 3x 380/400/415 VAC(3Ph+N) | 3x 380/400/415 VAC(3Ph+N) | 3x 380/400/415 VAC(3Ph+N) | 3x 380/400/415 VAC(3Ph+N) |
| Voltage range | 100%load305–478VAC;<70%load208–304VAC | 100%load305–478VAC;<70%load208–304VAC | 100%load305–478VAC;<70%load208–304VAC | 100%load305–478VAC;<70%load208–304VAC | 100%load305–478VAC;<70%load208–304VAC | 100%load305–478VAC;<70%load208–304VAC | 100%load305–478VAC;<70%load208–304VAC | -20%–+15% | -20%–+15% | -20%–+15% | -20%–+15% | -20%–+15% | -20%–+15% |
| Rated frequency | 50/60Hz(autoselect) | 50/60Hz(autoselect) | 50/60Hz(autoselect) | 50/60Hz(autoselect) | 50/60Hz(autoselect) | 50/60Hz(autoselect) | 50/60Hz(autoselect) | 50/60Hz (auto select) | 50/60Hz (auto select) | 50/60Hz (auto select) | 50/60Hz (auto select) | 50/60Hz (auto select) | 50/60Hz (auto select) |
| Frequency range | 40-70Hz | 40-70Hz | 40-70Hz | 40-70Hz | 40-70Hz | 40-70Hz | 40-70Hz | 40Hz–70Hz | 40Hz–70Hz | 40Hz–70Hz | 40Hz–70Hz | 40Hz–70Hz | 40Hz–70Hz |
| Power factor | 100%load>0.99;50%load>0.98 | 100%load>0.99;50%load>0.98 | 100%load>0.99;50%load>0.98 | 100%load>0.99;50%load>0.98 | 100%load>0.99;50%load>0.98 | 100%load>0.99;50%load>0.98 | 100%load>0.99;50%load>0.98 | 100%load>0.99, 50%load>0.98 | 100%load>0.99, 50%load>0.98 | 100%load>0.99, 50%load>0.98 | 100%load>0.99, 50%load>0.98 | 100%load>0.99, 50%load>0.98 | 100%load>0.99, 50%load>0.98 |
| THDi | <3%@100%load | <3%@100%load | <3%@100%load | <3%@100%load | <3%@100%load | <3%@100%load | <3%@100%load | <4%@100%load | <4%@100%load | <4%@100%load | <4%@100%load | <4%@100%load | <4%@100%load |
| Output | |||||||||||||
| Rated voltage | 3x380VAC/400VAC/415VAC(3Ph+N) | 3x380VAC/400VAC/415VAC(3Ph+N) | 3x380VAC/400VAC/415VAC(3Ph+N) | 3x380VAC/400VAC/415VAC(3Ph+N) | 3x380VAC/400VAC/415VAC(3Ph+N) | 3x380VAC/400VAC/415VAC(3Ph+N) | 3x380VAC/400VAC/415VAC(3Ph+N) | 3x380/400/415 VAC(3PH+N) | 3x380/400/415 VAC(3PH+N) | 3x380/400/415 VAC(3PH+N) | 3x380/400/415 VAC(3PH+N) | 3x380/400/415 VAC(3PH+N) | 3x380/400/415 VAC(3PH+N) |
| Voltage regulation (steady state) | ≤ ± 1%typ. (balanced load) ; ≤ ± 2% typ.(unbalanced load) | ||||||||||||
| Voltage regulation (dynamic) | ≤±5%typ. | ≤±5%typ. | ≤±5%typ. | ≤±5%typ. | ≤±5%typ. | ≤±5%typ. | ≤±5%typ. | — | — | — | — | — | — |
| Rated frequency | 50/60Hz | ||||||||||||
| Frequency range (sync range) | 46Hz–54Hz or 56Hz–64Hz | ||||||||||||
| THD | ≤ 1.5% THD (linear load) ;≤ 4% THD (non-linear load) | ≤ 1.5% THD (linear load) ;≤ 4% THD (non-linear load) | ≤ 1.5% THD (linear load) ;≤ 4% THD (non-linear load) | ≤ 1.5% THD (linear load) ;≤ 4% THD (non-linear load) | ≤ 1.5% THD (linear load) ;≤ 4% THD (non-linear load) | ≤ 1.5% THD (linear load) ;≤ 4% THD (non-linear load) | ≤ 1.5% THD (linear load) ;≤ 4% THD (non-linear load) | ≤ 2% THD (linear load) ;≤ 4% THD (non-linear load) | ≤ 2% THD (linear load) ;≤ 4% THD (non-linear load) | ≤ 2% THD (linear load) ;≤ 4% THD (non-linear load) | ≤ 2% THD (linear load) ;≤ 4% THD (non-linear load) | ≤ 2% THD (linear load) ;≤ 4% THD (non-linear load) | ≤ 2% THD (linear load) ;≤ 4% THD (non-linear load) |
| Overload | |||||||||||||
| Overload capability | ≤110% 1 h; 111–125% 10 min; 126–150% 1 min; >150% 200 ms | ||||||||||||
| Efficiency | |||||||||||||
| Efficiency | Up to 94.5% | Up to 94.5% | Up to 94.5% | Up to 94.5% | Up to 94.5% | Up to 94.5% | Up to 94.5% | 95.50% | 95.50% | 95.50% | 95.50% | 95.50% | 95.50% |
| Physical | |||||||||||||
| Cabinet dimensions (D×W×H) mm | 1100x514x763 | 1000×600×1475 | 1000×600×2010 | 1100×514×763 | 1100×600×1475 | 1100x600x1475 | 1000×600×2010 | 850x600x2010 | 1065x 600×2010 | 1065x 600×2010 | 1065x 600×2010 | 1065x 1000×2010 | 1065x 1000x 2010 |
| Cabinet weight (kg) | 182 | 434.5 | 625 | 183.5 | 335 | 437.5 | 620 | 490 | 545 | 654 | 932 | 1020 | 1130 |
| Environment | |||||||||||||
| Working environment / operating temperature | 0–40°C;0–95%RH (non-condensing) | 0–40°C;0–95%RH (non-condensing) | 0–40°C;0–95%RH (non-condensing) | 0–40°C;0–95%RH (non-condensing) | 0–40°C;0–95%RH (non-condensing) | 0–40°C;0–95%RH (non-condensing) | 0–40°C;0–95%RH (non-condensing) | 0–40 °C | 0–40 °C | 0–40 °C | 0–40 °C | 0–40 °C | 0–40 °C |
| Relative humidity | — | — | — | — | — | — | — | 0–95% RH (non-condensing) | 0–95% RH (non-condensing) | 0–95% RH (non-condensing) | 0–95% RH (non-condensing) | 0–95% RH (non-condensing) | 0–95% RH (non-condensing) |
| Altitude | <1000m rated power | <1000m rated power | <1000m rated power | <1000m rated power | <1000m rated power | <1000m rated power | <1000m rated power | < 1,000 m at rated power; above 1,000 m, derate output power by 1% per 100 m | < 1,000 m at rated power; above 1,000 m, derate output power by 1% per 100 m | < 1,000 m at rated power; above 1,000 m, derate output power by 1% per 100 m | < 1,000 m at rated power; above 1,000 m, derate output power by 1% per 100 m | < 1,000 m at rated power; above 1,000 m, derate output power by 1% per 100 m | < 1,000 m at rated power; above 1,000 m, derate output power by 1% per 100 m |
| IP rating | IP20 | ||||||||||||
| Display & communication | |||||||||||||
| RS-232/USB | Supports Windows, Linux and macOS | ||||||||||||
| SNMP (optional) | Power management: supports SNMP and network management. | ||||||||||||
Factory values. Specifications may change; confirm against the quotation.Swipe the table sideways.
