Holdvolt H11R / H31R / H33R
Rack-Mount Online UPS, 1–40 kVA
19-inch rack UPS for server and network cabinets, with matching battery packs. Rack or tower installation.
- 1–40kVA
- 19-inch rack format
- 0ms
- Mains to battery
- 2U–3U
- Height, by rating
- ≥0.99
- Input power factor
- 1Ph / 3Ph
- Single- and three-phase
- CE
- EN IEC 62040-1, single-phase rack
How it works
Mains lost. The load does not notice.
- 0 ms
- mains to battery
- DC bus
- battery always connected
- Inverter
- load never sees the grid
Conversion
- Online double conversion
- DSP control
- Active PFC, input PF ≥0.99
- ECO mode
Grid and generator
- Wide input voltage
- Generator compatible
- 50 / 60 Hz auto-sensing
- Rack or tower mounting
Battery
- Adjustable battery quantity
- Multi-stage charging
- Cold start on battery
Monitoring
- LCD panel
- RS-232 / USB
- SNMP card (option)
- EPO
Specifications
Factory catalog values, model by model.

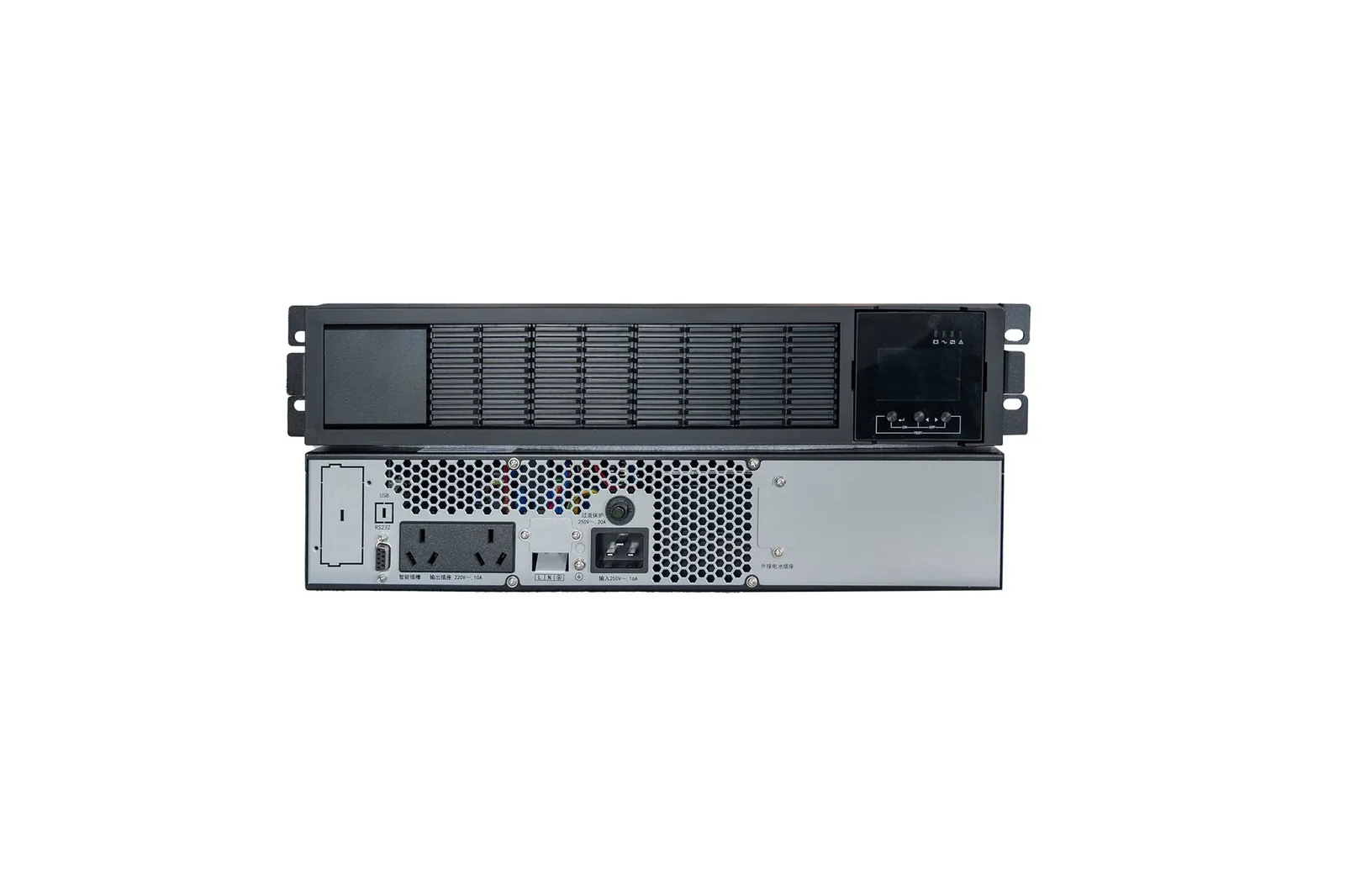

Single-phase, 1–10 kVA
E = long-run model for external battery.
| Model | H11-1KR | H11-1KRE | H11-2KR | H11-2KRE | H11-3KR | H11-3KRE | H11-6KR | H11-10KR |
|---|---|---|---|---|---|---|---|---|
| Other | ||||||||
| Capacity/Power | 1kVA/1kW | 1kVA/1kW | 2kVA/2kW | 2kVA/2kW | 3kVA/3kW | 3kVA/3kW | 6KVA/6KW | 10KVA/10KW |
| Input | ||||||||
| Input wiring | L+N+PE | |||||||
| Rated input voltage | 208/220/230/240VAC | |||||||
| Voltage range | 110–300VAC | 110–300VAC | 110–300VAC | 110–300VAC | 110–300VAC | 110–300VAC | 110-300VAC | 110-300VAC |
| Frequency range | 44–56Hz or 54Hz–66Hz,Default | 44–56Hz or 54Hz–66Hz,Default | 44–56Hz or 54Hz–66Hz,Default | 44–56Hz or 54Hz–66Hz,Default | 44–56Hz or 54Hz–66Hz,Default | 44–56Hz or 54Hz–66Hz,Default | 44-56Hz or 54Hz-66Hz | 44-56Hz or 54Hz-66Hz |
| Input power factor | ≥0.99 | |||||||
| Input total harmonic distortion | ≤4% (Linear Load) ≤5% (Non-linear Load,PF = 0.8) | ≤4% (Linear Load) ≤5% (Non-linear Load,PF = 0.8) | ≤4% (Linear Load) ≤5% (Non-linear Load,PF = 0.8) | ≤4% (Linear Load) ≤5% (Non-linear Load,PF = 0.8) | ≤4% (Linear Load) ≤5% (Non-linear Load,PF = 0.8) | ≤4% (Linear Load) ≤5% (Non-linear Load,PF = 0.8) | — | — |
| Output | ||||||||
| Output wiring | L+N+PE | |||||||
| Output voltage | 208/220/230/240VAC | |||||||
| Voltage regulation | ±1% | |||||||
| Output frequency | Online mode: Follow the mains frequency. Battery mode: 50/60Hz±0.1% | Online mode: Follow the mains frequency. Battery mode: 50/60Hz±0.1% | Online mode: Follow the mains frequency. Battery mode: 50/60Hz±0.1% | Online mode: Follow the mains frequency. Battery mode: 50/60Hz±0.1% | Online mode: Follow the mains frequency. Battery mode: 50/60Hz±0.1% | Online mode: Follow the mains frequency. Battery mode: 50/60Hz±0.1% | Online mode: Follow the mains frequency. Battery mode: 50/60Hz ±0.1% | Online mode: Follow the mains frequency. Battery mode: 50/60Hz ±0.1% |
| Output harmonic distortion | ≤3%(Linear Load) ≤5%(Non-linear Load) | |||||||
| Output power factor | 1 | |||||||
| Transfer time | ||||||||
| Transfer time | Mains – battery: 0 ms. Inverter – bypass: 4 ms. | |||||||
| Overload | ||||||||
| Overload capacity | Mains mode: 30min@102%–110%Load;10min@110%–130%Load;30s@130%–150%Load;200ms@>150%Load / Battery mode: 1min@102%–110%Load;10s@110%–130%Load;3s@130%–150%Load;200ms@>150% Load | |||||||
| Efficiency | ||||||||
| Efficiency (mains supply mode) | 94.5% | 94.5% | 95.5% | 95.5% | 95.5 | 95.5 | 95% | 95% |
| Battery | ||||||||
| Battery voltage | Built-in 2x12V 7AH/9 AH battery | Built-in 2x12V 7AH/9 AH battery | 36Vdc | Built-in 4x12V 7 AH/9AH battery | Built-in 4x12V 7 AH/9AH battery | 72Vdc | 192-240Vdc | 192-240Vdc |
| Charge current | 1A | 1-12A(max) | 1-12A(max) | 1A | 1-12A(max) | 1-12A(max) | 1-12A(max) | 1-12A(max) |
| Display & communication | ||||||||
| Display interface | Liquid crystal display interface, which supports operating mode/load/electric quantity/input/output, etc. | |||||||
| Communication interface | It is standardly equipped with an RS232 communication interface. SNMP smart cards and USB interfaces are optional. | |||||||
| Environment | ||||||||
| Operating temperature | 0–40°C | 0–40°C | 0–40°C | 0–40°C | 0–40°C | 0–40°C | 0-40°C | 0-40°C |
| Operating humidity | No condensation at 20% – 95% (humidity level) | |||||||
| Altitude | It should not exceed 1000m. Derating is required when it is above 1000m. The maximum altitude is 4000m. Refer to IEC62040. | |||||||
| Physical | ||||||||

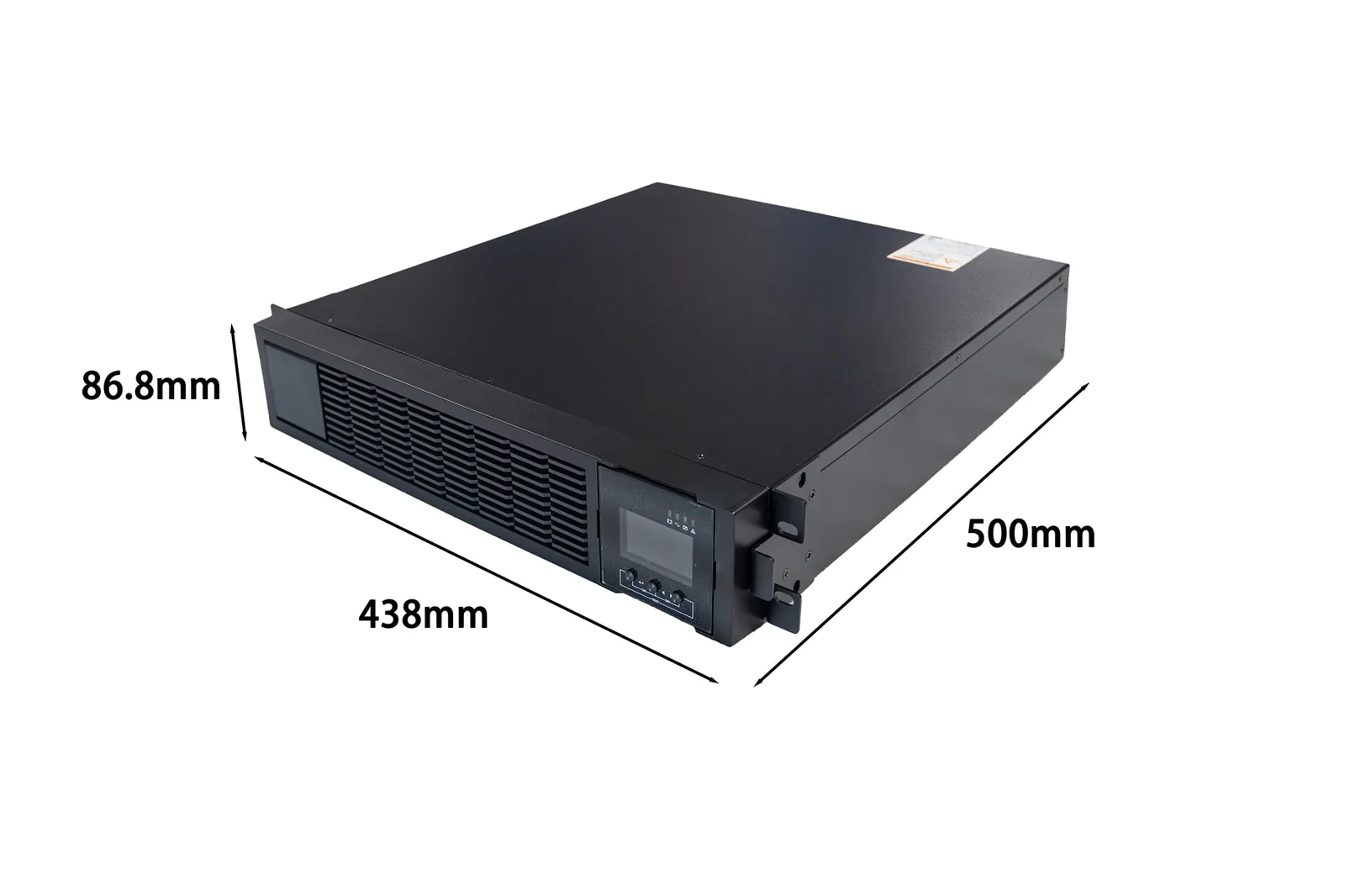

| Size W × D × H (mm) | 438×315×86.8 | 438×315×86.8 | 438×400×86.8 | 438×400×86.8 | 438×400×86.8 | 438×500×86.8 | 438x500x86.8 | 438x500x86.8 |
| Net weight (kg) | 9.8/10.8 | 4.8 | 16.4/18.4 | 8 | 21/24 | 8.2 | 8.8 | 11 |
Factory values. Specifications may change; confirm against the quotation.Swipe the table sideways.

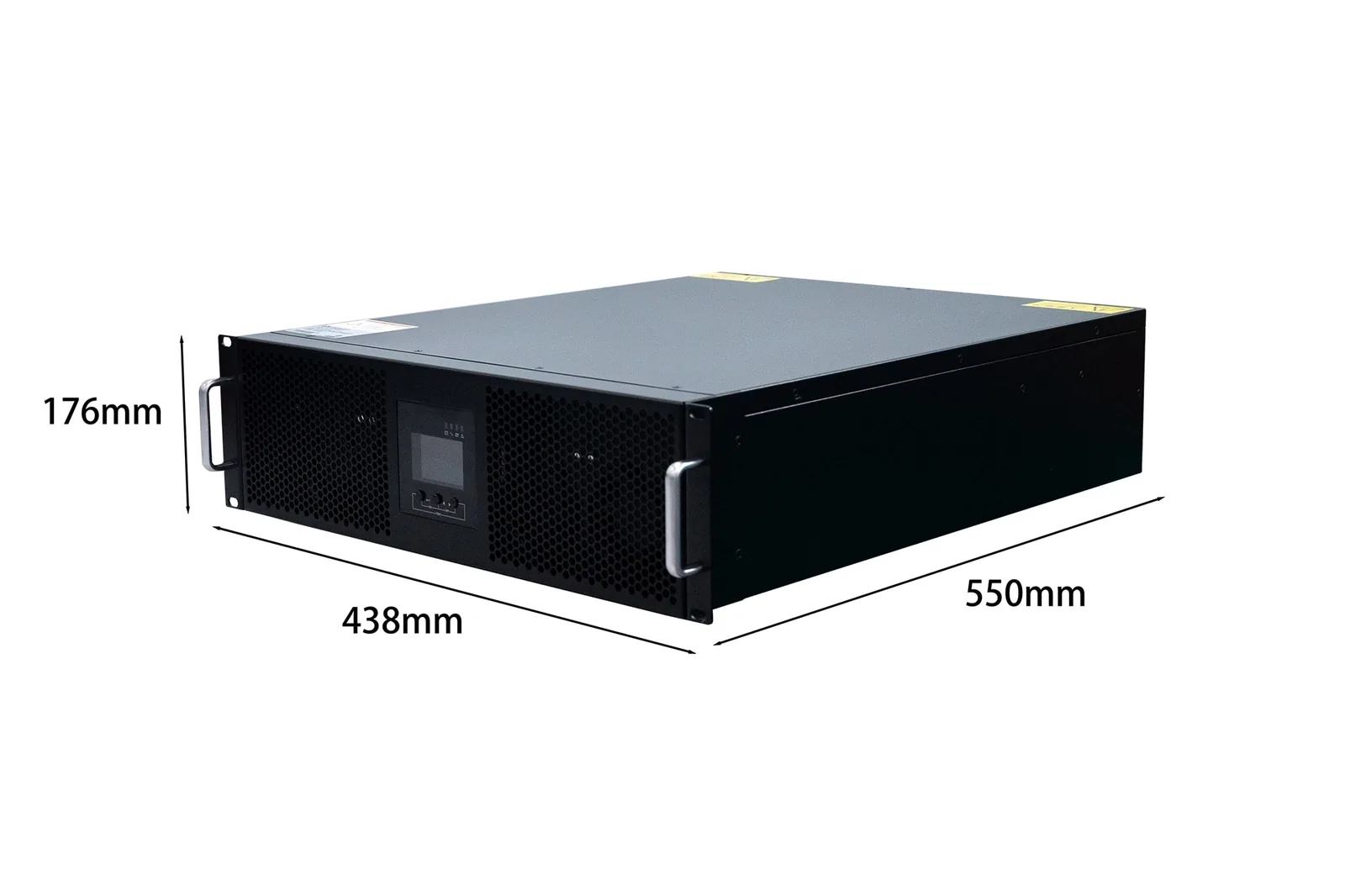

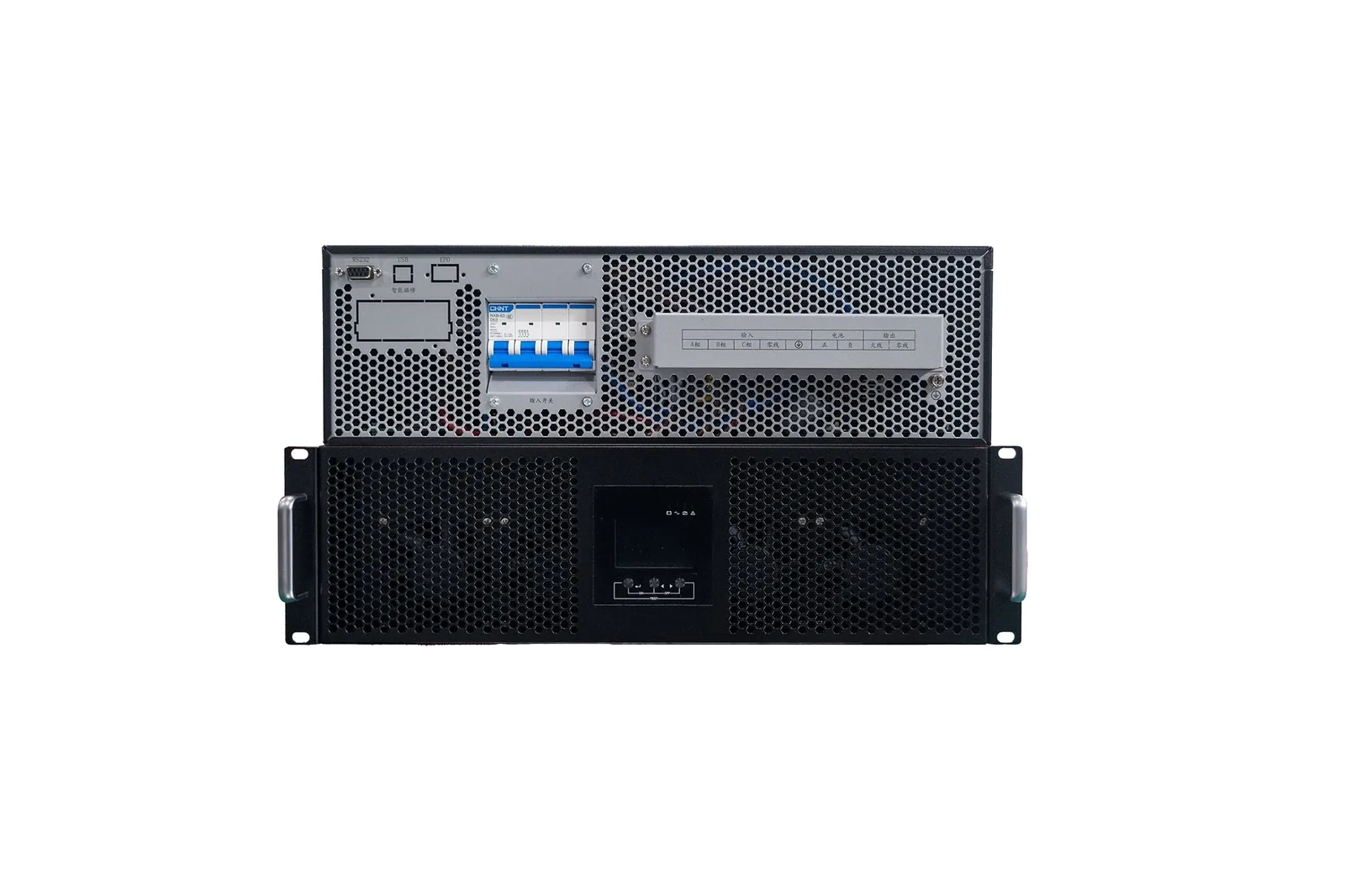

Three-in, single-out, 10–20 kVA
| Model | H31-10KR | H31-15KR | H31-20KR |
|---|---|---|---|
| Input | |||
| Rated voltage | 380Vac three-phase four-wire + grounding wire | ||
| Voltage range | Phase voltage: 110–300VAC, Line voltage: 190–520VAC | ||
| Frequency range | 44–56Hz @50Hz / 54Hz–66Hz@60Hz | ||
| Power factor | 0.99@100% load | ||
| Bypass | |||
| (row label blank on website) | (60%–120%)*220Vac can be set through software | ||
| Output | |||
| Output power factor | 0.8@16-17 sections, 0.9@18-19 sections, 1.0@20 sections | ||
| Rated voltage | 220Vac | ||
| Voltage range (battery mode) | ±1% | ||
| Frequency range (synchronization correction range) | 50Hz (44-56)Hz, tracking; 60Hz: (54-66)Hz, tracking | ||
| Frequency range (battery mode) | 50 HZ±0.1 HZ | ||
| Current crest factor | 3:1 | ||
| Total harmonic distortion (THD) | ≤3%THD (linear load); ≤5%THD (non-linear load) | ||
| Waveform (battery mode) | Pure sine wave | ||
| Transfer time | |||
| Conversion time: from mains mode to battery mode | 0 | ||
| Overload | |||
| Overload capacity | Commercial power: 102%≤Load ≤ 110%, switch to bypass mode after 10 minutes and warn; 110%≤Load ≤ 130%, switch to bypass mode after 1 minute and warn; 130%≤Load ≤ 150%, switch to bypass mode for 5 seconds and warn. / Battery: 102%≤Load ≤ 110%, switch to bypass mode after 10 minutes and warn; 110%≤Load ≤ 130%, switch to bypass mode for 1 minute and warn; 130%≤Load ≤ 150%, switch to bypass mode for 5 seconds and warn; load>150%, switch to bypass mode for 500ms and warn | ||
| Efficiency | |||
| Mains efficiency | ≥95.5% | ||
| ECO efficiency | ≥98.5% | ||
| Battery | |||
| Battery voltage | 192–240Vdc (The default value is 192Vdc at the factory) | ||
| Number of battery cells | 16-20 battery cells | ||
| Charging current | It can be set from 1 to 12A (The default value is 5A for the long-machine type at the factory) | ||
| Other | |||
| Alarm sound | Battery Mode: Sound every 4 seconds; Low battery: Sound once every second; overload: Sound once every second; fault: Continuous ringing | ||
| Physical | |||
| Size W×D×H (mm) (website row mislabelled 'Mains efficiency') | 438x571x131(3U) | ||
| Net weight (kg) (website row mislabelled 'ECO efficiency') | 19 | 19 | 20 |
| Environment | |||
| Temperature and humidity | 0 °C–40 °C, 20%–95% non condensing | ||
| Noise | ≤ 60dB@ 1 rice | ||
| Display & communication | |||
| Communication and monitoring functions | RS232; Network monitoring card (optional); EPO (optional) | ||
Factory values. Specifications may change; confirm against the quotation.Swipe the table sideways.

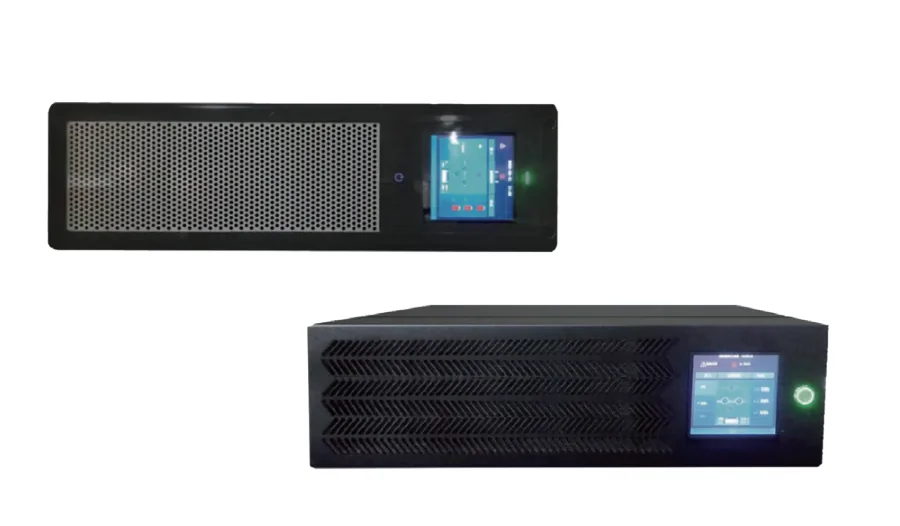

Three-phase, 10–40 kVA
| Model | H33-10KR | H33-15KR | H33-20KR | H33-30KR | H33-40KR |
|---|---|---|---|---|---|
| Input | |||||
| Input wiring | 380V, three-phase + N + ground wire | ||||
| Rated input voltage | 380V, three-phase + N + ground wire | ||||
| Input voltage range | 110-300VAC | ||||
| Input frequency range | 40-70Hz (Automatically select the synchronization range according to the grid frequency) | ||||
| Input power factor | ≥0.99 | ||||
| Input current harmonic (THDi) | <5% | ||||
| Bypass | |||||
| Bypass voltage range | 380×(15%–-15%) | ||||
| Output | |||||
| Waveform | Pure sine wave | ||||
| Output power factor | 1.0 | ||||
| Frequency | 50Hz ±0.2% | ||||
| Output voltage harmonic (THDv) | For linear loads ≤3%, for non-linear loads ≤5% | ||||
| Output mode | Terminal block | ||||
| Efficiency | |||||
| Efficiency | >95%, ECO mode>98% | ||||
| Overload | |||||
| Overload capacity | In case of 125% full load, it will switch to bypass after 1 minute; in case of 150% full load, it will switch to bypass after 10 seconds. | ||||
| Battery | |||||
| Battery voltage | ±192V (Default is 32 pieces of 12V batteries, adjustable from 30 to 40 pieces) | ||||
| Charge current | Charging current adjustable from 1 – 13A | ||||
| Transfer time | |||||
| Transfer time | Mains power mode → Battery mode: 0ms; Inverter → Bypass, Bypass → Inverter: 0ms | ||||
| Display & communication | |||||
| Display | LCD: Input/output, bypass, inversion, frequency, load capacity, battery voltage, fault information, etc. | ||||
| Background status indication | Mains power status, battery power supply, fault | ||||
| Communication interface | Intelligent expansion of RS232, RS485, USB, EPO, and SNMP cards | ||||
| Physical | |||||
| W × D × H (mm) | 440x700x133(3U) | 440x700x133(3U) | 440x700x133(3U) | 440x900x133(3U) | 440x900x133(3U) |
| Net weight (kg) | 25 | 28 | 32 | 36 | 38 |
Factory values. Specifications may change; confirm against the quotation.Swipe the table sideways.
CE certificates
EN IEC 62040-1 safety (LVD) and EN IEC 62040-2 EMC, high-frequency online range.
LVD · Three-phase online, to 600 kVA
EMC · Three-phase online, to 600 kVA
LVD · Three-in, single-out online, 10–30 kVA
EMC · Three-in, single-out online, 10–30 kVA
LVD · Single-phase online tower, 1–10 kVA
EMC · Single-phase online tower, 1–10 kVA
LVD · Single-phase online rack, 1–10 kVA
EMC · Single-phase online rack, 1–10 kVA
