Holdvolt H33
Three-Phase Online UPS, 10–600 kVA
Double conversion, three-phase in and out, for plants, data rooms and critical lines. Tower to 200 kVA, three-level cabinet to 600 kVA.
- 10–600kVA
- Tower and cabinet
- 0ms
- Mains to battery
- 95.5%
- Efficiency, AC mode
- 0.99
- Input power factor
- 98.5%
- ECO mode
- 4
- Units in parallel
How it works
Mains lost. The load does not notice.
- 0 ms
- mains to battery
- DC bus
- battery always connected
- Inverter
- load never sees the grid
Conversion
- Online double conversion
- DSP control
- Active PFC, input PF ≥0.99
- ECO mode
Grid and generator
- Wide input voltage
- Generator compatible
- 50 / 60 Hz auto-sensing
- Dual AC input
- 100% unbalanced load
Battery
- Adjustable battery quantity
- Multi-stage charging
- Cold start on battery
Monitoring
- LCD panel
- RS-232 / USB
- SNMP card (option)
- EPO
Specifications
Factory catalog values, model by model.

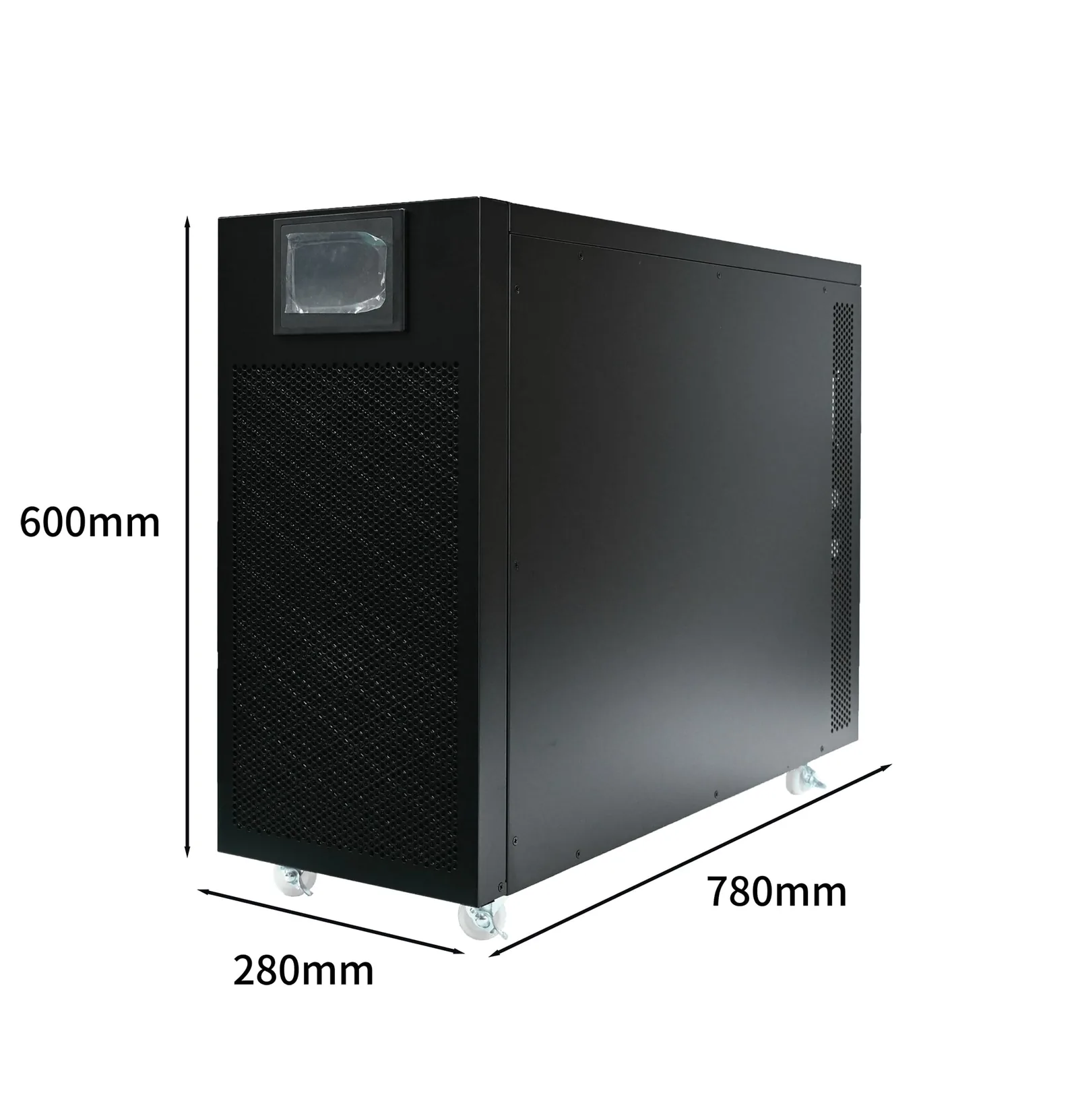

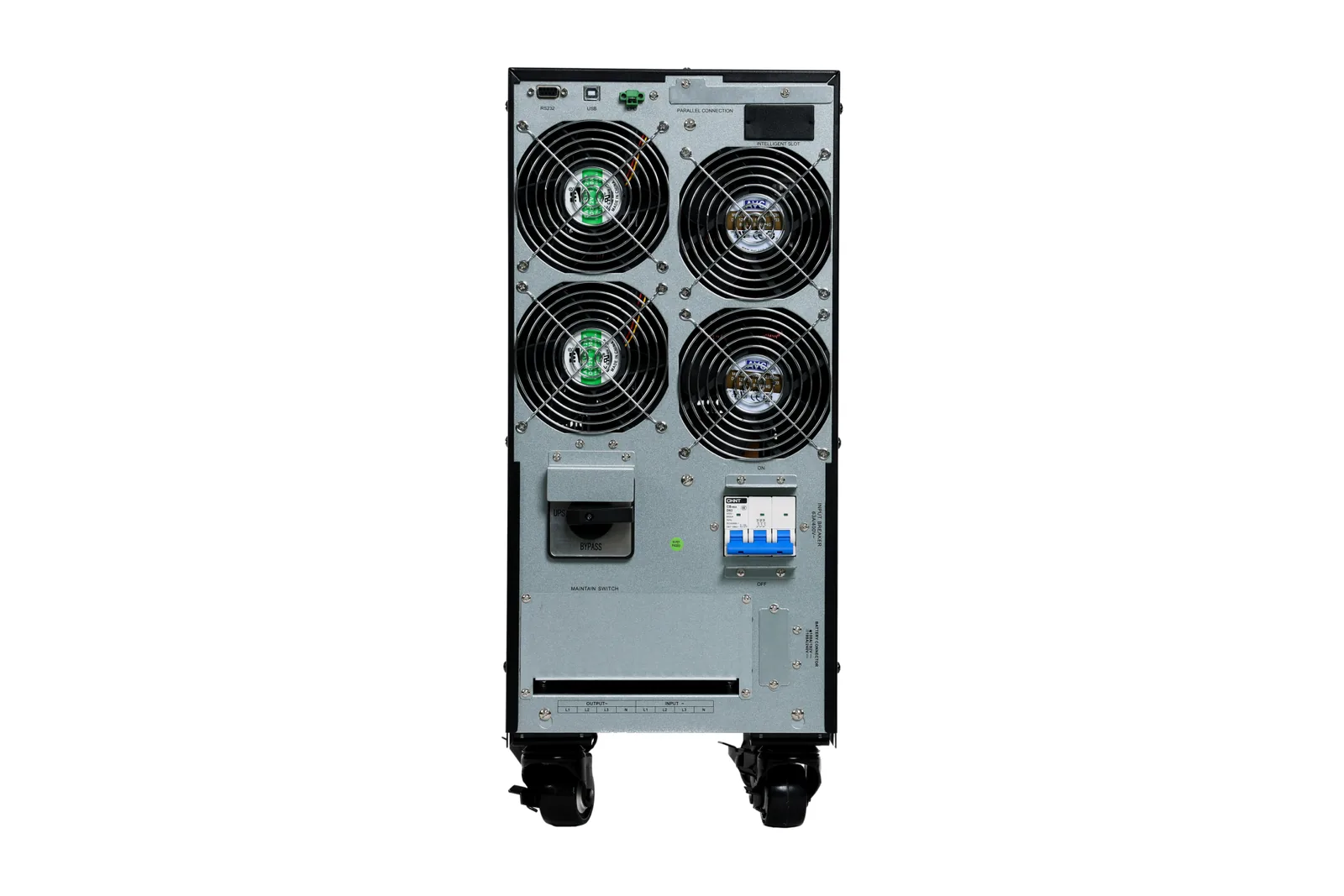

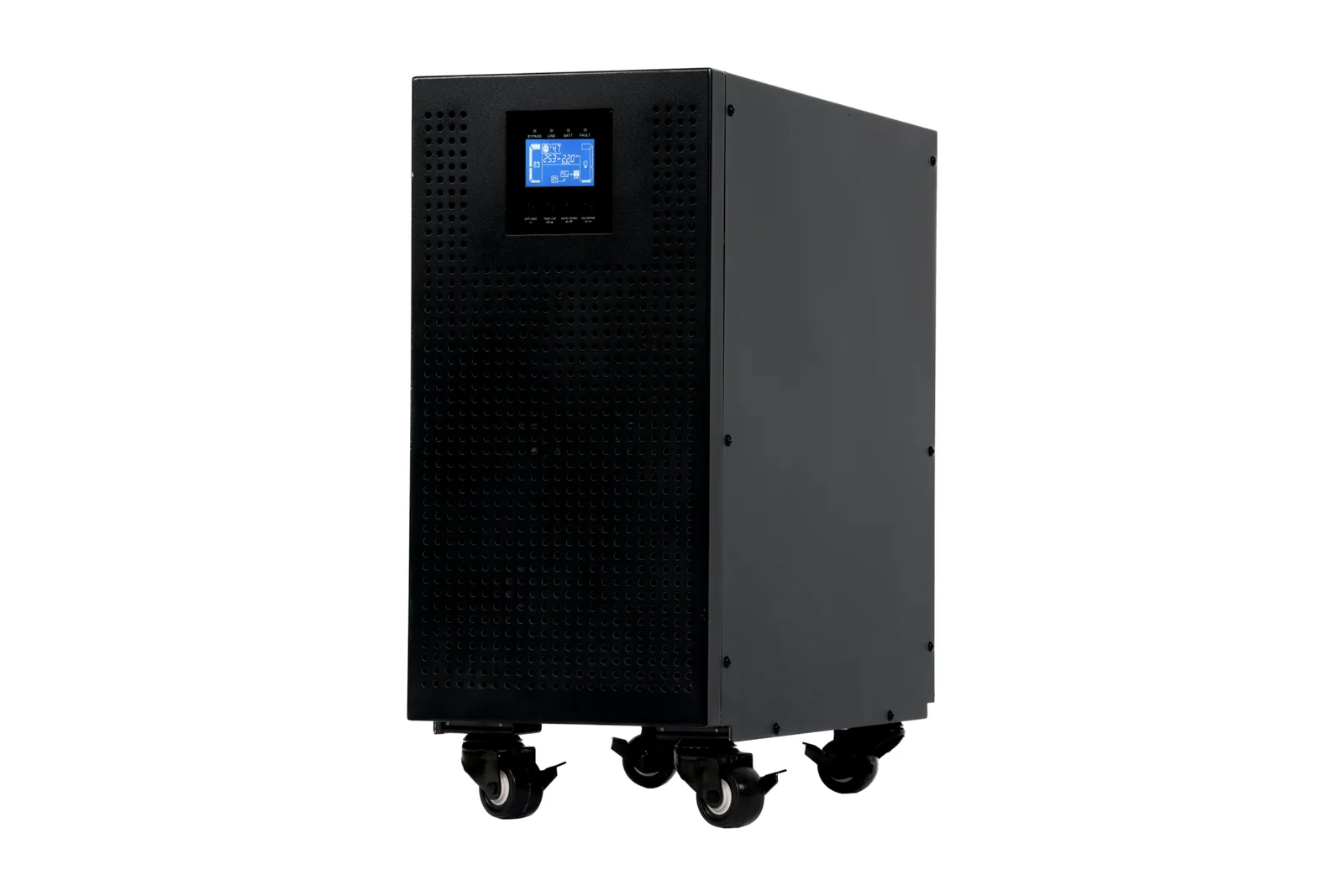

10–200 kVA tower
Long-run models for external battery.
| Model | H33-10K | H33-20K | H33-30K | H33-40K | H33-60K | H33-80K | H33-100K | H33-120K | H33-160K | H33-180K | H33-200K |
|---|---|---|---|---|---|---|---|---|---|---|---|
| Other | |||||||||||
| Parallel capability | 4 units | ||||||||||
| Input | |||||||||||
| Input wiring | 3Ph+N+PE | ||||||||||
| Rated voltage | 3×360/380/400/415 VAC(3Ph+N+PE) | ||||||||||
| Voltage range | 110–300 VAC @ 50% load; 176–276 VAC @ 100% load | ||||||||||
| Frequency range | 40–70Hz | ||||||||||
| Power factor | 0.99@100%load | ||||||||||
| THDi | Linear load<4% | ||||||||||
| Output | |||||||||||
| Output voltage | 3x360/380/400/415VAC (3Ph+N) | ||||||||||
| Output accuracy (battery mode) | ±1% | ||||||||||
| Frequency range: Sync range | 46-54Hz or 56-64Hz | ||||||||||
| Frequency range: Battery mode | 50/60Hz±1% | ||||||||||
| Crest factor | 3:1 (max) | ||||||||||
| THD | 2% (linear load); 5% (non-linear load) | ||||||||||
| Waveform | Pure sine wave | ||||||||||
| Power factor | 0.9 | 0.9 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 |
| Transfer time | |||||||||||
| Transfer time: Utility → Battery | 0ms | ||||||||||
| Transfer time: Inverter → Bypass | 0ms | ||||||||||
| Overload | |||||||||||
| Overload capability | 100-110%60min,111-125%10min,126%-150%1min;>150%400ms | ||||||||||
| Bypass | |||||||||||
| Rated voltage | 3x360/380/400/415VAC (3Ph+N) | ||||||||||
| Voltage range | 305VAC-457VAC | ||||||||||
| Frequency range (Sync range) | 46–54Hz or 56–64Hz | ||||||||||
| Overload capability | >130%1min | ||||||||||
| Efficiency | |||||||||||
| AC mode | 95.5% | ||||||||||
| ECO mode | 98.5% | ||||||||||
| Battery mode | 94.5% | ||||||||||
| Battery | |||||||||||
| Long-run model: Battery model | Depends on application | ||||||||||
| Long-run model: Battery quantity | 16-20cells | 16-20cells | 32-40cells | 32-40cells | 32-40cells | 32-40cells | 32-40cells | 32-40cells | 32-40cells | 32-40cells | 32-40cells |
| Long-run model: Max. charging current | 4.0A±10% | 4.0A±10% | 1–12 A ±10%; preset: 1 A | 1–12 A ±10%; preset: 1 A | 1–18A ±10%; preset: 1 A | 2–24A ±10%; preset: 2 A | 2–36A ±10%; preset: 3A | 2–36A ±10%; preset: 3A | 3-54A±10%; preset: 3A | 3-54A±10%; preset: 3A | 3-54A±10%; preset: 3A |
| Long-run model: Charging voltage | 13.65 VDC × battery quantity ±1% | 13.65 VDC × battery quantity ±1% | ±13.65VDC×N±1%(N = 16-20) | ±13.65VDC×N±1%(N = 16-20) | ±13.65VDC×N±1%(N = 16-20) | ±13.65VDC×N±1%(N = 16-20) | ±13.65VDC×N±1%(N = 16-20) | ±13.65VDC×N±1%(N = 16-20) | ±13.65VDC×N±1%(N = 16-20) | ±13.65VDC×N±1%(N = 16-20) | ±13.65VDC×N±1%(N = 16-20) |
| Physical | |||||||||||
| Long-run model: D×W×H (mm) | 592×250x576 | 592×250x576 | 815x300x1000 | 815x300x1000 | 815x300x1000 | 796X360X1010 | 1000X430X1200 | 1000X430X1200 | 1000X600X1200 | 1000X600X1200 | 1000X600X1200 |
| Long-run model: Weight(kg) | 38 | 40 | 64 | 68 | 108 | 124 | 200 | 200 | 265 | 265 | 265 |
| Environment | |||||||||||
| Operating temperature | 0–40 °C (Battery life will be reduced when ambient temperature is > 25°C) | ||||||||||
| Relative humidity | <95%RH (non-condensing) | ||||||||||
| Altitude | < 1000m ; Above 1,000 m, derate output power by 1% per 100 m | ||||||||||
| Noise (1 m in front) | <60dB | <60dB | <65dB | <65dB | <75dB | <75dB | <75dB | <75dB | <75dB | <75dB | <75dB |
| Display & communication | |||||||||||
| Management | Intelligent RS-232/USB; optional SNMP card | ||||||||||
Factory values. Specifications may change; confirm against the quotation.Swipe the table sideways.

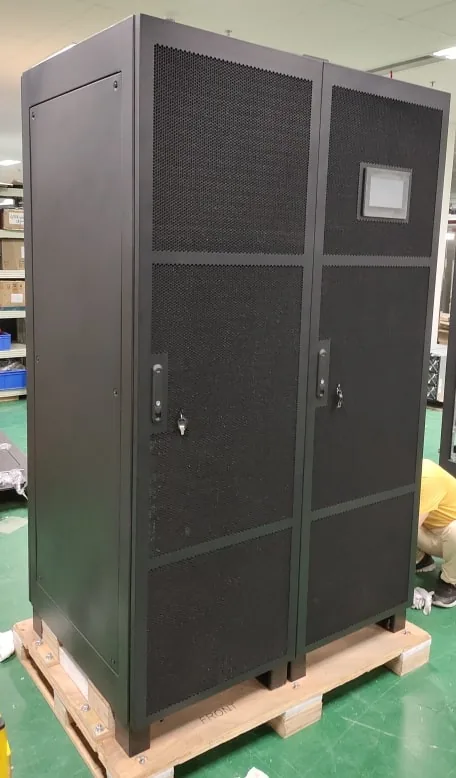

200–600 kVA three-level cabinet
| Model | H33-200K | H33-300K | H33-400K | H33-500K | H33-600K |
|---|---|---|---|---|---|
| Input | |||||
| Input wiring | Three-phase five-wire | ||||
| Rated input voltage | 380 / 400 / 415 Vac | ||||
| Input voltage range | 138–485 Vac | ||||
| Input frequency range | 40–70 Hz | ||||
| Input power factor | ≥ 0.99 | ||||
| Input current harmonic (THDi) | ≤ 3% | ||||
| Generator connection | Support | ||||
| Bypass | |||||
| Bypass voltage range | 220Vac: +25% / −45% / 230Vac: +20% / −45% / 240Vac: +15% / −45% | ||||
| Output | |||||
| Output wiring | Three-phase five-wire system | ||||
| Rated output voltage | 380 / 400 / 415 Vac | ||||
| Output power factor | 0.9 | ||||
| Voltage regulation | ±1% | ||||
| Frequency | Mains: ±1% / ±2% / ±4% / ±5% / ±10% adjustable / Battery: 50 / 60 Hz ±0.1% | ||||
| Peak current ratio | 3:1 | ||||
| Output voltage harmonic (THDv) | ≤2% (linear load) / ≤4% (non-linear load) | ||||
| Efficiency | |||||
| Overall efficiency | 95.5% | ||||
| Overload | |||||
| Overload capacity | 110%: 60 min · 125%: 10 min · 150%: 1 min | ||||
| Battery | |||||
| Battery voltage | ±180V / ±192V / ±204V / ±216V / ±228V / ±240V / ±252V / ±264V / ±276V / ±288V / ±300Vdc (30–50 cells optional) | ||||
| Transfer time | |||||
| Transfer time | Mains → Bypass: 0 ms (tracking) / Mains → Battery: 0 ms | ||||
| Environment | |||||
| Operating temperature | 0°C to 40°C | ||||
| Storage temperature | −25°C to 55°C | ||||
| Humidity range | 0–95% (non-condensation) | ||||
| Operating altitude | ≤1500 m | ||||
| Noise (1 m) | <65 dB | <68 dB | <68 dB | <70 dB | <70 dB |
| Other | |||||
| Alarm function | Overload, mains abnormal, UPS fault, battery under-voltage | ||||
| Protection function | Under/over voltage, short-circuit, overload, over-temperature, fan failure, lightning protection | ||||
| Parallel capability | 6 units (features) | ||||
| Display & communication | |||||
| Communication interface | CAN, RS485, dry contact, SNMP (optional), relay card (optional) | ||||
| Display | 7-inch color touch screen (features) | ||||
| Physical | |||||
| W × D × H (mm) | 850×600×2000 | 850×600×2000 | 850×600×2000 | 850×1200×2000 | 850×1200×2000 |
| Net weight (kg) | 335 | 400 | 638 | 740 | 843 |
Factory values. Specifications may change; confirm against the quotation.Swipe the table sideways.
