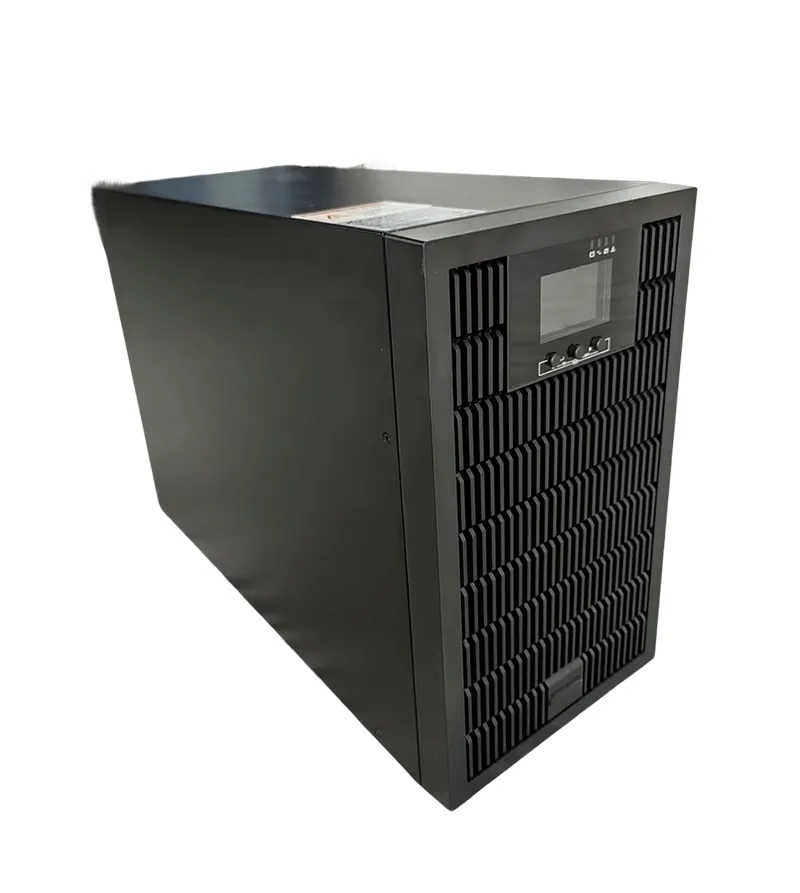

Holdvolt H11
Single-Phase Online UPS, 1–10 kVA
Tower double-conversion UPS for control cabinets, network rooms and medical carts. Standard or long-run (external battery).
- 1–10kVA
- Tower, standard and long-run
- 0ms
- Mains to battery
- 110–300V
- Input voltage range
- 1.0
- Output power factor (option)
- ≥0.99
- Input power factor
- ≤2%
- THDv, linear load
How it works
Mains lost. The load does not notice.
- 0 ms
- mains to battery
- DC bus
- battery always connected
- Inverter
- load never sees the grid
Conversion
- Online double conversion
- DSP control
- Active PFC, input PF ≥0.99
- ECO mode
Grid and generator
- Wide input voltage
- Generator compatible
- 50 / 60 Hz auto-sensing
- Selectable 208/220/230/240 V
Battery
- Adjustable battery quantity
- Multi-stage charging
- Cold start on battery
Monitoring
- LCD panel

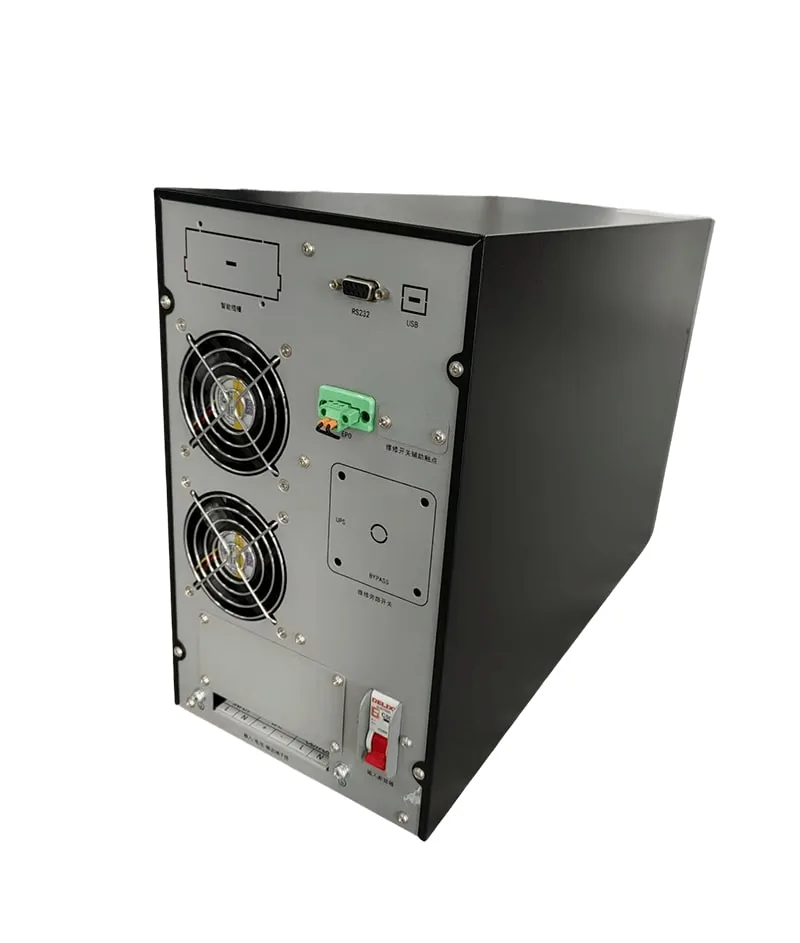

- RS-232 / USB
- SNMP card (option)
- EPO
Specifications
Factory catalog values, model by model.

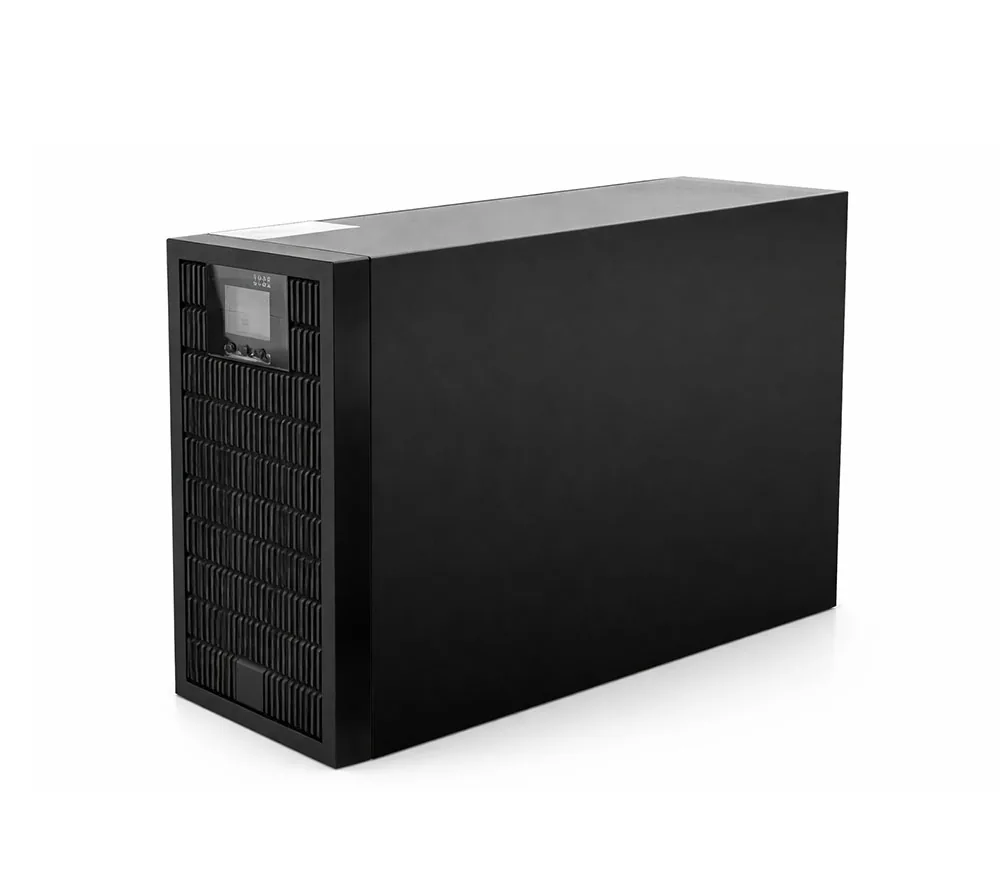

1–10 kVA tower
E = long-run model for external battery.
| Model | H11-1KE | H11-1K | H11-2KE | H11-2K | H11-3KE | H11-3K | H11-6KE | H11-6K | H11-10KE | H11-10K |
|---|---|---|---|---|---|---|---|---|---|---|
| Input | ||||||||||
| Input wiring | L+N+PE | |||||||||
| Rated voltage | 208/220/230/240VAC | |||||||||
| Voltage range | 110–300VAC | |||||||||
| Frequency range | 44–56Hz@50Hz/54Hz-66Hz@60Hz | |||||||||
| power factor | ≥0.99 | |||||||||
| Output | ||||||||||
| Output wiring | L+N+PE | |||||||||
| Output voltage | 208/220/230/240VAC | |||||||||
| Output accuracy | ±1% | |||||||||
| Output frequency | Online mode: follows utility frequency; Battery mode: 50/60 Hz ±0.05 | |||||||||
| THDv | ≤ 2% (linear load); ≤ 5% (non-linear load) | |||||||||
| power factor | 0.8/1.0 | |||||||||
| Transfer time | ||||||||||
| Transfer time | Utility → Battery: 0 ms; Inverter → Bypass: 4 ms | |||||||||
| Overload | ||||||||||
| Overload capability (utility mode) | Utility mode: 30 min@102%–110%load;10 min@110%–130%load;30 s@130%–150%load; 200 ms@>150%load | |||||||||
| Overload capability (battery mode) | Battery mode: 30 min@102%–110%load;10 min@110%–130%load;30 s@130%–150%load;200 ms@>150% load | |||||||||
| Efficiency | ||||||||||
| Efficiency (utility mode) | >94.5% | >94.5% | >95.5% | >95.5% | >95.5% | >95.5% | >95% | >95% | >95% | >95% |
| Battery | ||||||||||
| Battery voltage | 36Vdc | Built-in 2×12V7AH batteries | 72Vdc | Built-in 4×12V7AH batteries | 96Vdc | Built-in 6×12V7AH batteries | 192Vdc | Built-in 16×12V7AH batteries | 192Vdc | Built-in 16×12V7AH batteries |
| Charging current | 1-12A(max) | 1A | 1-12A(max) | 1A | 1-12A(max) | 1A | 1-12A(max) | 1A | 1-12A(max) | 1A |
| Display & communication | ||||||||||
| Display | LCD display shows mode/load/battery/input/output, etc. | |||||||||
| Communication | Standard RS232; optional SNMP card and USB | |||||||||
| Environment | ||||||||||
| Operating temperature | 0–40°C | |||||||||
| Relative humidity | 20%–95%RH (non-condensing) | |||||||||
| Altitude | ≤1000 m; above 1000 m, derate 1% per 100 m; max. 4000 m (ref. IEC 62040) | |||||||||
| Physical | ||||||||||

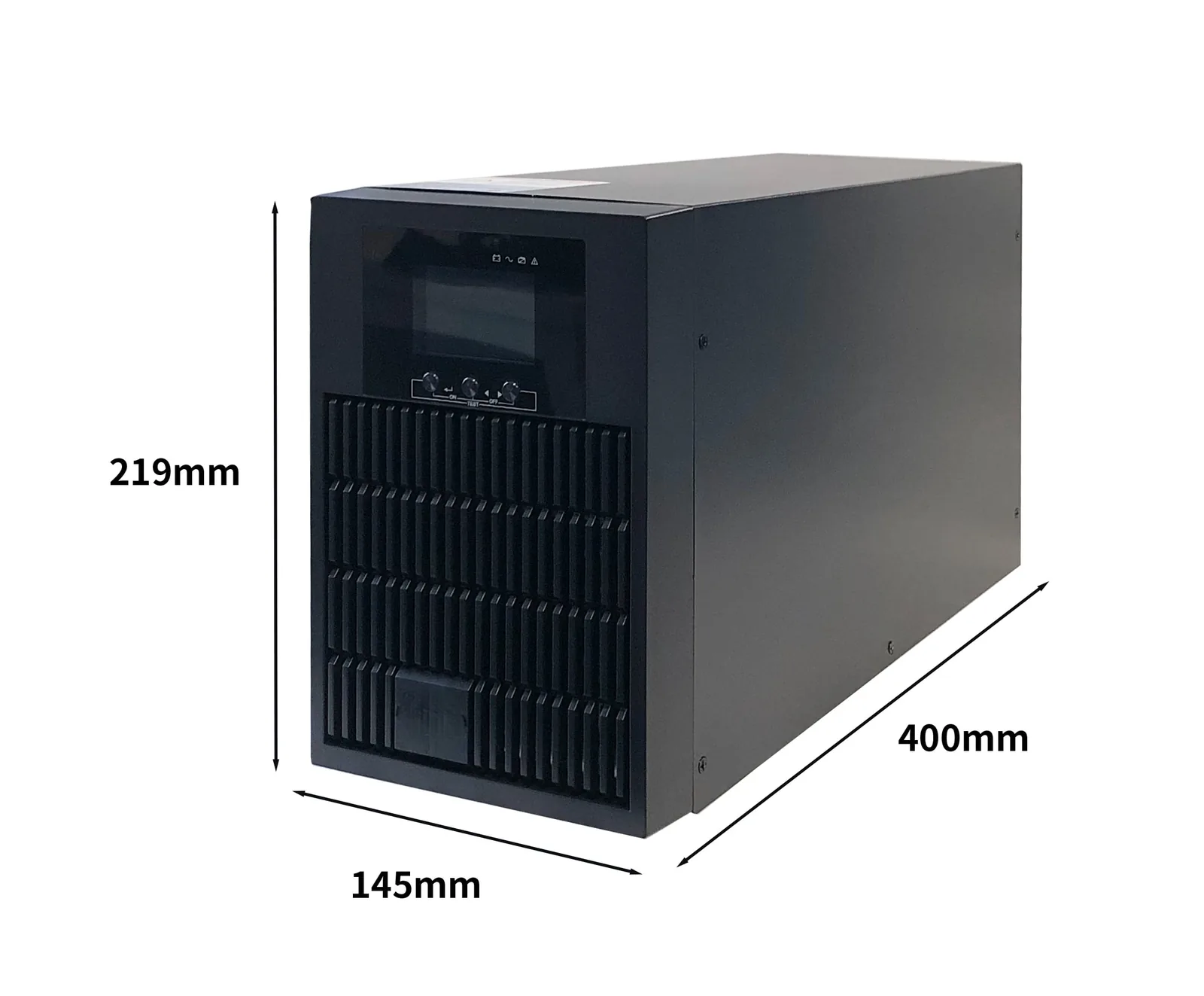

| Dimensions, Tower: L×W×H (mm) | 145×315×319 | 145×315×319 | 145×400×219 | 145×400×219 | 145×400×219 | 190×454×322 | 190×454×322 | 190×454×700 | 190×454×322 | 190×454×700 |
| Weight, Tower (kg) | 4.1 | 8.3 | 5.7 | 14.1 | 6.4 | 21 | 9.8 | 43.2 | 11.2 | 54.6 |
| Dimensions, Rack: L×W×H (mm) | 438×315×86.8 | 438×315×86.8 | 438×400×86.8 | 438×400×86.8 | 438×400×86.8 | 438×500×86.8 | 438×500×86.8 | / | 438×500×86.8 | / |
| Weight, Rack (kg) | 4.8 | 9.8 | 8 | 16.4 | 8 | 21 | 8.8 | / | 11 | / |
Factory values. Specifications may change; confirm against the quotation.Swipe the table sideways.
