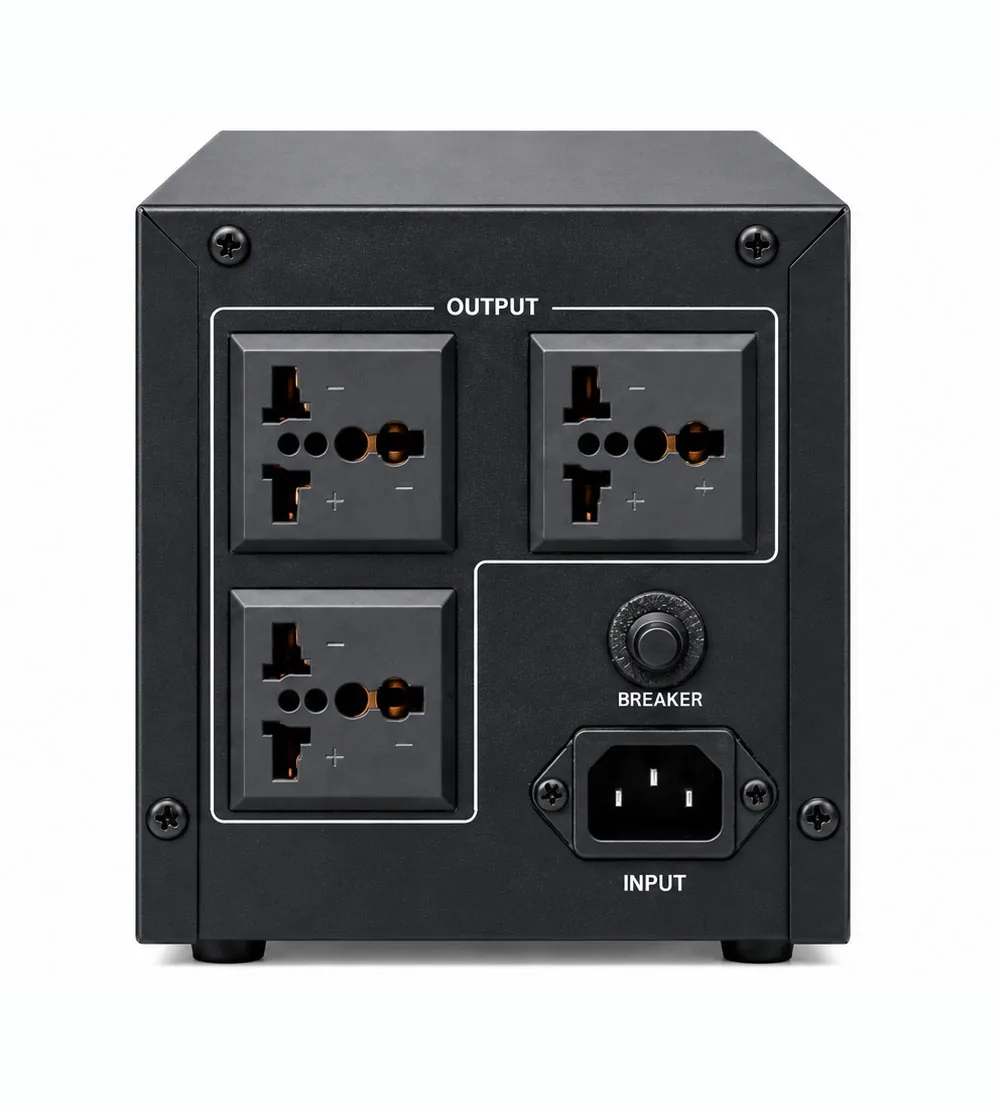

Holdvolt H11-1.5K-Li
All-in-One Lithium Online UPS, 1.5 kVA
Online UPS and LiFePO4 battery in a single desktop housing.
- 1.5kVA
- 1.2 kW output
- LiFePO4
- Built-in battery
- 0ms
- Transfer time
Features
1.5 kVA
Unit
- Online double conversion
- Built-in LiFePO4
- Pure sine wave
- RS-232 / USB
- SNMP (option)
Specifications
Factory catalog values, model by model.
1.5 kVA / 1.2 kW
| Model | H11-1.5K-Li |
|---|---|
| Input | |
| Phase | Single-phase (L+N+PE) |
| Rated voltage | 220VAC |
| Voltage range | 140-300VAC @100% load, 110VAC @60% load (derated) |
| Frequency range | 40-70Hz |
| Power factor | ≥0.99@rated voltage (full load) |
| Input connection | IEC 320 C20 |
| Other | |
| Capacity | 1500VA/1200W |
| Cables & accessories | Battery connection cable +communication cable +UPS-to-battery connection cable |
| Cabinet type(optional) | Standard outdoor cabinet / Air-conditioned cabinet |
| Distribution (optional) | Surge protection, input/output, maintenance bypass+ output feeder. Breaker brands:Schneider/Chint/domestic Liangxin |
| Output | |
| Output voltage | 220/230/240VAC (selectable) |
| Voltage regulation (battery mode) | ±1% |
| Frequency range (sync range) | 56-64Hz or 46-54Hz |
| Frequency range (battery mode) | 50Hz/ 50Hz±0.1Hz |
| Output connection | IEC 320 C13 |
| Crest factor | 3: 1 |
| Harmonic distortion | ≤3%THD (linear load) ; ≤6%THD(non-linear load) |
| Waveform (battery mode) | Pure sine wave |
| Battery | |
| Charging current | 10A |
| Battery voltage | 48V (LiFePO4) |
| LiFePO4 battery pack (optional) | 48V 7/9/20/50/100/150/200Ah or 51.2V 50/100/200/300Ah |
| Transfer time | |
| Mains to battery mode | 0ms |
| Overload | |
| Online mode(<35°C) | 105-125%: 2 min; 125-140%: 30 sec |
| Battery mode(<35°C) | 105-120%: 1min; >120%: immediate shutdown |
| Efficiency | |
| Online mode | 95% |
| Physical | |
| Dimensions DxWxH (mm) | 219*171mm*439mm |
| Net weight | 15kg |
| Environment | |
| Operating temp/ humidity | 0-95%RH @0-45°C (non-condensing) |
| Noise | <40dB @1m |
| Display & communication | |
| Intelligent port | RS-232/USB; supports Windows 2000/2003/XP/Vista/2008, Windows 7/8, Linux & MAC |
| SNMP(optional) | SNMP card+browser-based power management |
Factory values. Specifications may change; confirm against the quotation.Swipe the table sideways.
