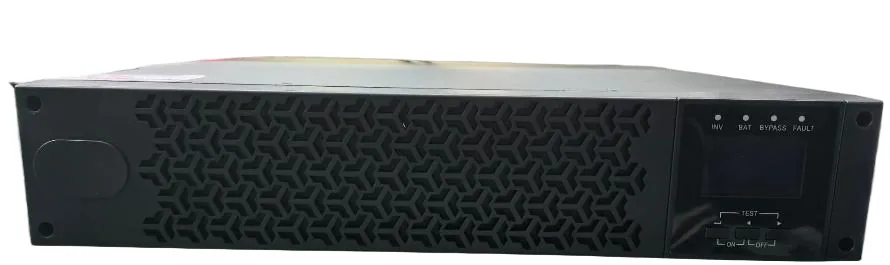

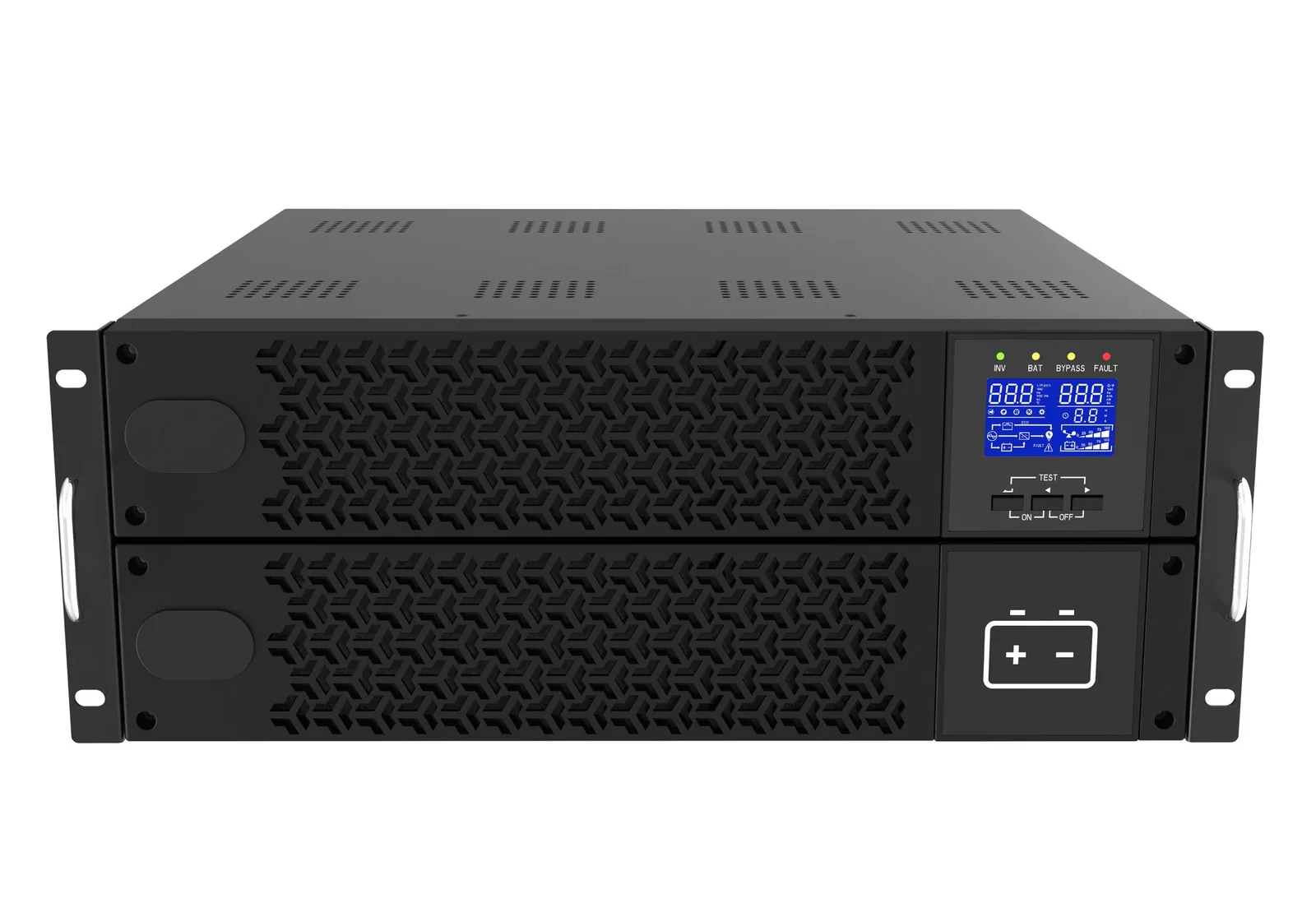

Holdvolt H11-Li
Single-Phase Lithium-ion Online UPS, 1–10 kVA
Rack-mount double conversion with a 48 V lithium iron phosphate battery.
- 1–10kVA
- Rack-mount
- 1
- Output PF (kVA = kW)
- 0ms
- Transfer time
- 98%
- ECO mode
How it works
Mains lost. The load does not notice.
- 0 ms
- mains to battery
- DC bus
- battery always connected
- Inverter
- load never sees the grid
Conversion
- Online double conversion
- DSP control
- Active PFC, input PF ≥0.99
- ECO mode
Grid and generator
- Wide input voltage
- Generator compatible
- 50 / 60 Hz auto-sensing
- LiFePO4 48 V
Battery
- Adjustable battery quantity
- Multi-stage charging
- Cold start on battery
Monitoring
- LCD panel
- RS-232 / USB
- SNMP card (option)
- EPO
Specifications
Factory catalog values, model by model.
1–10 kVA rack
| Model | H11-1KR-Li | H11-2KR-Li | H11-3KR-Li | H11-6KR-Li | H11-10KR-Li |
|---|---|---|---|---|---|
| Other | |||||
| Capacity | 1KVA/1KW | 2KVA/2KW | 3KVA/3KW | 6KVA/6KW | 10KVA/10KW |
| Input | |||||
| Rated voltage | 208/220/230/240Vac,L+N+PE | ||||
| Voltage range | 110-300Vac | ||||
| Frequency range | 40-70Hz | ||||
| Power factor | ≥0.99 | ||||
| THDi | ≤ 4% (linear); ≤ 5% (non-linear) | ≤ 4% (linear); ≤ 5% (non-linear) | ≤ 4% (linear); ≤ 5% (non-linear) | ≤ 5% (linear); ≤ 8% (non-linear) | ≤ 5% (linear); ≤ 8% (non-linear) |
| Output | |||||
| Rated voltage | 208/220/230/240Vac,L+N+PE | ||||
| Voltage regulation | ±1% | ||||
| Frequency | 50/60Hz±0.1% | ||||
| THDV | ≤ 2% (linear); ≤ 5% (non-linear) | ||||
| Waveform | Pure sine wave | ||||
| Crest factor | 3:1 | ||||
| Transfer time | |||||
| Transfer time | 0 | ||||
| Overload | |||||
| Overload capability (Utility mode) | 102%–110%: 30 min; 110%–130%: 10 min; 130%–150%: 30 s; >150%: 200 ms | 102%–110%: 30 min; 110%–130%: 10 min; 130%–150%: 30 s; >150%: 200 ms | 102%–110%: 30 min; 110%–130%: 10 min; 130%–150%: 30 s; >150%: 200 ms | 102%–105%: 30 min; 105%–125%: 10 min; 125%–150%: 30 s; >150%: 500 ms | 102%–105%: 30 min; 105%–125%: 10 min; 125%–150%: 30 s; >150%: 500 ms |
| Overload capability (Battery mode) | 102%–110%: 1 min; 110%–130%: 10 s; 130%–150%: 3 s; >150%: 200 ms | 102%–110%: 1 min; 110%–130%: 10 s; 130%–150%: 3 s; >150%: 200 ms | 102%–110%: 1 min; 110%–130%: 10 s; 130%–150%: 3 s; >150%: 200 ms | 102%–105%: 10 min; 105%–125%: 1 min; 125%–150%: 10 s; >150%: 500 ms | 102%–105%: 10 min; 105%–125%: 1 min; 125%–150%: 10 s; >150%: 500 ms |
| Efficiency | |||||
| Utility mode (AC) | 94.5% | 95.5% | 95.5% | 95% | 95% |
| Battery mode | 88.5% | 91.5% | 91.5% | 94.5% | 94.5% |
| ECO mode | 98% | ||||
| Battery | |||||
| Nominal voltage | 48Vdc | 48Vdc | 48Vdc | 192Vdc/240Vdc | 192Vdc/240Vdc |
| Battery Quantity | External | ||||
| Charging current | 1-12A | ||||
| Display & communication | |||||
| Ports | RS232 / USB / SNMP card (optional) / Dry contacts (optional) | ||||
| Environment | |||||
| Operating temperature | 0-40°C | ||||
| Relative humidity | 0–95%RH (non-condensing) | ||||
| Noise (1 m in front) | ≤50dB | ||||
| Altitude | Up to 1,000 m without derating (at rated output). | ||||
| Physical | |||||
| Dimensions (W×D×H) mm | 440x379×86 | 440×450x86 | 440×450x86 | 440x487x86 | 440x487x86 |
| Weight (kg) | 6 | 8 | 10.8 | 11 | 12 |
Factory values. Specifications may change; confirm against the quotation.Swipe the table sideways.
