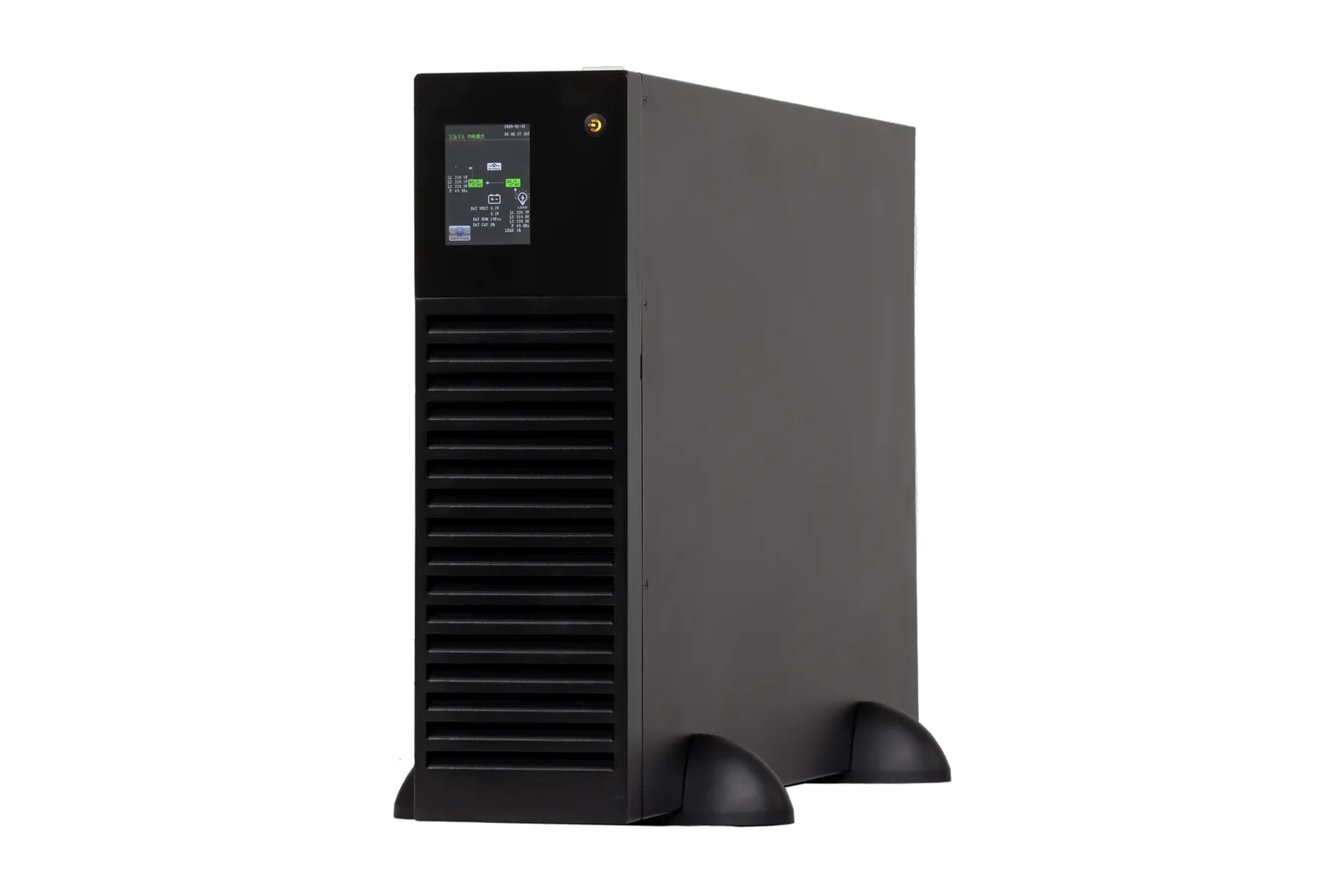

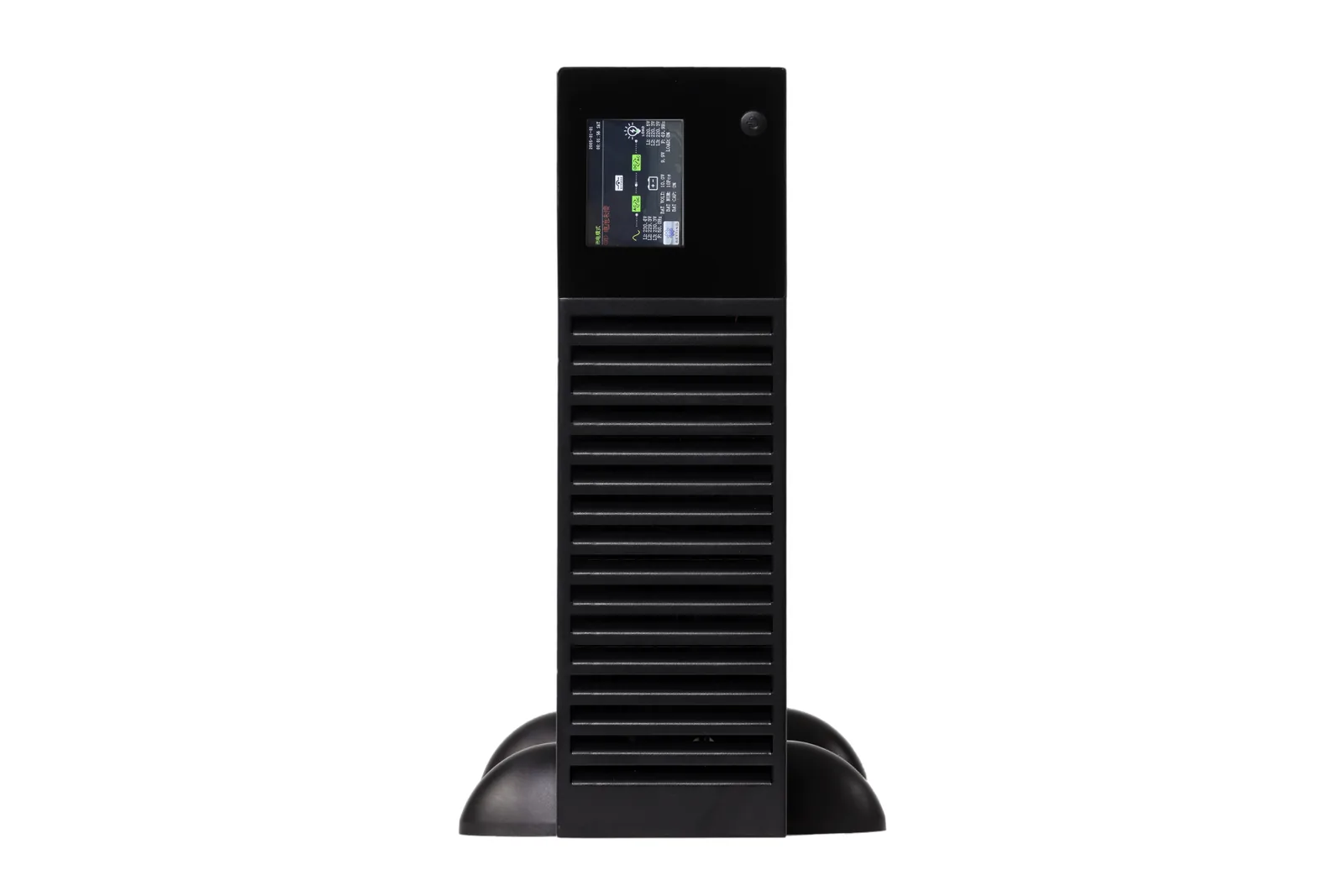

Holdvolt H33R-Li
Three-Phase Rack Lithium-ion UPS, 10–60 kVA
3U rack double conversion for edge rooms and network sites, three-phase or single-phase output.
- 10–60kVA
- Rack-mount, 3U
- 95.5%
- AC mode efficiency
- 98.5%
- ECO mode
- 4
- Units in parallel
How it works
Mains lost. The load does not notice.
- 0 ms
- mains to battery
- DC bus
- battery always connected
- Inverter
- load never sees the grid
Conversion
- Online double conversion
- DSP control
- Active PFC, input PF ≥0.99
- ECO mode
Grid and generator
- Wide input voltage
- Generator compatible
- 50 / 60 Hz auto-sensing
- 3/3, 3/1, 1/1 configurable
Battery
- Adjustable battery quantity
- Multi-stage charging
- Cold start on battery
Monitoring
- LCD panel
- RS-232 / USB
- SNMP card (option)
- EPO
Specifications
Factory catalog values, model by model.
10–60 kVA rack
| Model | H33-10KR-Li | H33-20KR-Li | H33-30KR-Li | H33-40KR-Li | H33-60KR-Li |
|---|---|---|---|---|---|
| Other | |||||
| Phase | 3P in 3P out/3P in 1P out/1P in 1P out | 3P in 3P out/3P in 1P out/1P in 1P out | 3P in 3P out | 3P in 3P out | 3P in 3P out |
| Capacity | 10kVA/10kW | 20kVA/20kW | 30kVA/30kW | 40KVA/40kW | 60kVA/60kW |
| Parallel capability | 4 | ||||
| Alarm: Battery mode | Buzzer beeps once every 4 seconds | ||||
| Alarm: Low battery | Buzzer beeps once every 1 second | ||||
| Alarm: Overload | Buzzer beeps twice every 1 second | ||||
| Alarm: Fault | Continuous buzzer | ||||
| Note | *Note: When output voltage is set to 3 × 360 VAC, output capacity is derated to 90%. | ||||
| Input | |||||
| Rated voltage | 3*380VAC | ||||
| Voltage range | 190–520 VAC (3Ph) @ 50% load; 305–478 VAC (3-phase) @ 100% load | ||||
| Frequency range | 46–54Hz or 56–64Hz | ||||
| Power factor | ≥0.99@100%load | ||||
| Output | |||||
| Output voltage | 3*360/380/400/415 VAC(3PH+N) | ||||
| Output accuracy (battery mode) | ±1% | ||||
| Frequency range (sync) | 46-54Hz or 56-64Hz | ||||
| Frequency range (battery mode) | 50Hz + 0.1 Hz or 60 Hz+ 0.1 Hz | ||||
| Crest factor | 3:1(max) | ||||
| THD | THD: ≤2% (linear load); ≤3% (non-linear load) | ||||
| Waveform (battery mode) | Pure sine wave | ||||
| Transfer time | |||||
| Transfer: Utility → Battery | 0 | ||||
| Transfer: Inverter → Bypass | 0 | ||||
| Overload | |||||
| Overload: Utility mode (AC) | 100-110%60min, 110-125%10min, 125%-150%1min; >150%immediate protection | ||||
| Overload: Battery mode | 100-110%60min, 110-125%10min, 125%-150%1min; >150%immediate protection | ||||
| Efficiency | |||||
| Utility mode (AC) | 95.5% | ||||
| ECO mode | 98.5% | ||||
| Battery mode | 94.5% | ||||
| Battery | |||||
| Battery type | Depends on application | ||||
| Quantity | 16-20Adjustable | 32-40Adjustable | 32-40Adjustable | 32-40Adjustable | 32-40Adjustable |
| Charging current (max.) | 1A–12A(Adjustable) | 1A–12A(Adjustable) | 1A–12A(Adjustable) | 1A–16A(Adjustable) | 1A–18A(Adjustable) |
| Charging voltage | ±13.65VDCxN(N=8-10) | ±13.65 VDC*N±1%(N=16-20) | ±13.65 VDC*N±1%(N=16-20) | ±13.65 VDC*N±1%(N=16-20) | ±13.65 VDC*N±1%(N=16-20) |
| Physical | |||||
| Dimensions (W×D×H) mm | 680×438×133[3U] | 680×438×133[3U] | 680×438×133[3U] | 680×438×133[3U] | 797×438×176(4U) |
| weight (kg) | 26 | 28 | 30 | 32 | 45 |
| Environment | |||||
| Operating temperature | 0-40°C | ||||
| Relative humidity | 0–95% RH (non-condensing) | ||||
| Noise (1 m in front) | ≤62dB | ≤62dB | ≤65dB | ≤65dB | ≤65dB |
| Display & communication | |||||
| RS-232/USB | Supports Windows 8 series, Linux, and Mac OS | ||||
| Optional SNMP | Power management via SNMP card and web browser | ||||
Factory values. Specifications may change; confirm against the quotation.Swipe the table sideways.
