Holdvolt P11 / P31 / P33
Power-Utility UPS for Substations, 1–120 kVA
Inverter-type UPS that runs from the station battery, for relay rooms, control buildings and plant DCS.
- 1–120kVA

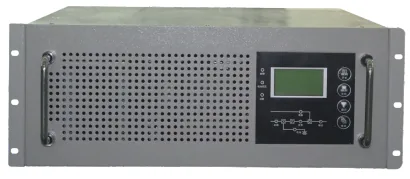

- Cabinet and rack
- DC 110 / 220V
- Station battery input
- 0ms
- Mains to DC
- ≤1ms
- Inverter to bypass
How it works
Double conversion, then an isolation transformer before the load.
- 0 ms
- mains to battery
- Isolation
- galvanic, inverter to load
- Neutral
- re-established at the transformer
Supply
- Station DC 110 / 220 V
- AC mains
- Static bypass
Environment
- -10 to 50 °C
- To 2000 m
Options
- Dry contacts
- RS-485
- SNMP
- Harmonic compensation
Specifications
Factory catalog values, model by model.
P11 / P31 / P33
| Model | P11 | P31 | P33 |
|---|---|---|---|
| Other | |||
| Capacity range | 1-30KVA | 6-120KVA | 10-120KVA |
| Protection: DC voltage (battery) | Low-battery auto shutdown; Auto restart when utility returns; Miniature circuit breaker protection | ||
| Protection: over-temperature | Internal temperature >85°C: auto transfer to bypass | ||
| Protection: output short circuit | Current limiting; Auto shutdown; Miniature circuit breaker protection | ||
| Protection: UPS fault | Auto transfer to bypass; load powered by utility. | ||
| Noise filter | 10–100KHz at 40dB;100KHz–100MHz at 70dB | ||
| Options | dry contact / RS485 / SNMP adapter / harmonic compensation cabinet / I/O distribution cabinet / I/O isolation cabinet; surge protection / bypass voltage stabilizer cabinet / custom cabinet size / 1–30 kVA TRS rack version | ||
| Input | |||
| Phase | Single-phase | 3-phase | 3-phase |
| Rated voltage | AC220V±25% | AC380V±25% | AC380V±25% |
| Rated frequency | 50HZ±5%,60HZ±5% | ||
| Bypass | |||
| Phase | Single-phase | 3-phase | 3-phase |
| Rated voltage | AC220V±25% | AC380V±25% | AC380V±25% |
| Rated frequency | 50HZ±5%,60HZ±5% | ||
| Frequency tracking rate | ≤1Hz/S | ||
| Output | |||
| Rated voltage | Single-phase AC220V±1% | Single-phase AC220V±1% | 3-phase AC380V±1% |
| Rated frequency | 50 Hz / 60 Hz ± 0.05 (battery mode) | ||
| Power factor | ≥0.8 | ||
| Waveform | Sine wave | ||
| THD | linear load <2%; non-linear load <3% | ||
| Crest factor | 3:1 (max) | ||
| Overload | |||
| Overload capability | 125% for 10 min; 150% for 1 min; auto recovery when load returns to normal | ||
| Protection: overload | Overload (120–150%): auto transfer to bypass after 60 s; auto recovery when load returns to normal. | ||
| Transfer time | |||
| Transfer time (utility failure) | 0ms | ||
| Transfer time (inverter/bypass) | ≤1ms | ||
| Battery | |||
| DC voltage (battery) | DC110/220V | ||
| DC voltage range | DC93-137V/184-275V | ||
| Display & communication | |||
| Alarm: utility failure | Buzzer beeps once every 4 seconds | ||
| Alarm: utility abnormal | Buzzer beeps once every 4 seconds; Utility-mode indicator flashes | ||
| Alarm: battery low | Buzzer beeps once every 1 second; Battery-mode indicator flashes; Low-battery LED on | ||
| Alarm: overload | Overload LED on; Continuous buzzer | ||
| Alarm: UPS fault | Fault LED on; Continuous buzzer | ||
| Control panel | LCD+LED | ||
| LCD display | Displays UPS status; input/output voltage, input/output frequency, battery voltage, output load (%), inverter temperature. | ||
| Low-battery indicator | On when battery voltage is low | ||
| Overload indicator | On when overloaded | ||
| Fault indicator | On when fault occurs | ||
| UPS status | Utility mode; Battery mode; Inverter; Bypass; UPS abnormal | ||
| Communication port | RS232/RS485 (optional remote network monitoring) | ||
| Efficiency | |||
| Efficiency (full load) | 91% | 92% | 95% |
| Environment | |||
| Operating temperature | -10°C–50°C | ||
| Relative humidity | 30%–90% RH (non-condensing) | ||
| Altitude | < 2000 m (derate 1% per +100 m; max. 4000 m) | ||
| Noise (1 m in front) | 48–55dB | 53–65dB | 55–65dB |
| Physical | |||
| Cabinet color | Grey-white (RAL 7032/7035); Black (optional) | ||
| Dimensions (W×D×H) mm | 800×600×2260/800×800×2260; 1000×800×2260/1200×800×2260 | ||
| Weight (kg) | Depends on configuration | ||
Factory values. Specifications may change; confirm against the quotation.Swipe the table sideways.
Where it fits
Applications and guides for this range.
Power Substations
Relays, SCADA, RTUs and communication equipment in a substation need clean AC power when station supply is disturbed. Our P-series power utility UPS is built for that control-room duty.
GuideIndustrial Isolation Transformer UPS: When Galvanic Isolation Matters
An isolation transformer breaks the direct conductive path between mains and load. In an industrial uninterruptible power supply it lets you create a clean new neutral, block common-mode noise and ride out the earthing problems that high-frequency units pass straight through.
