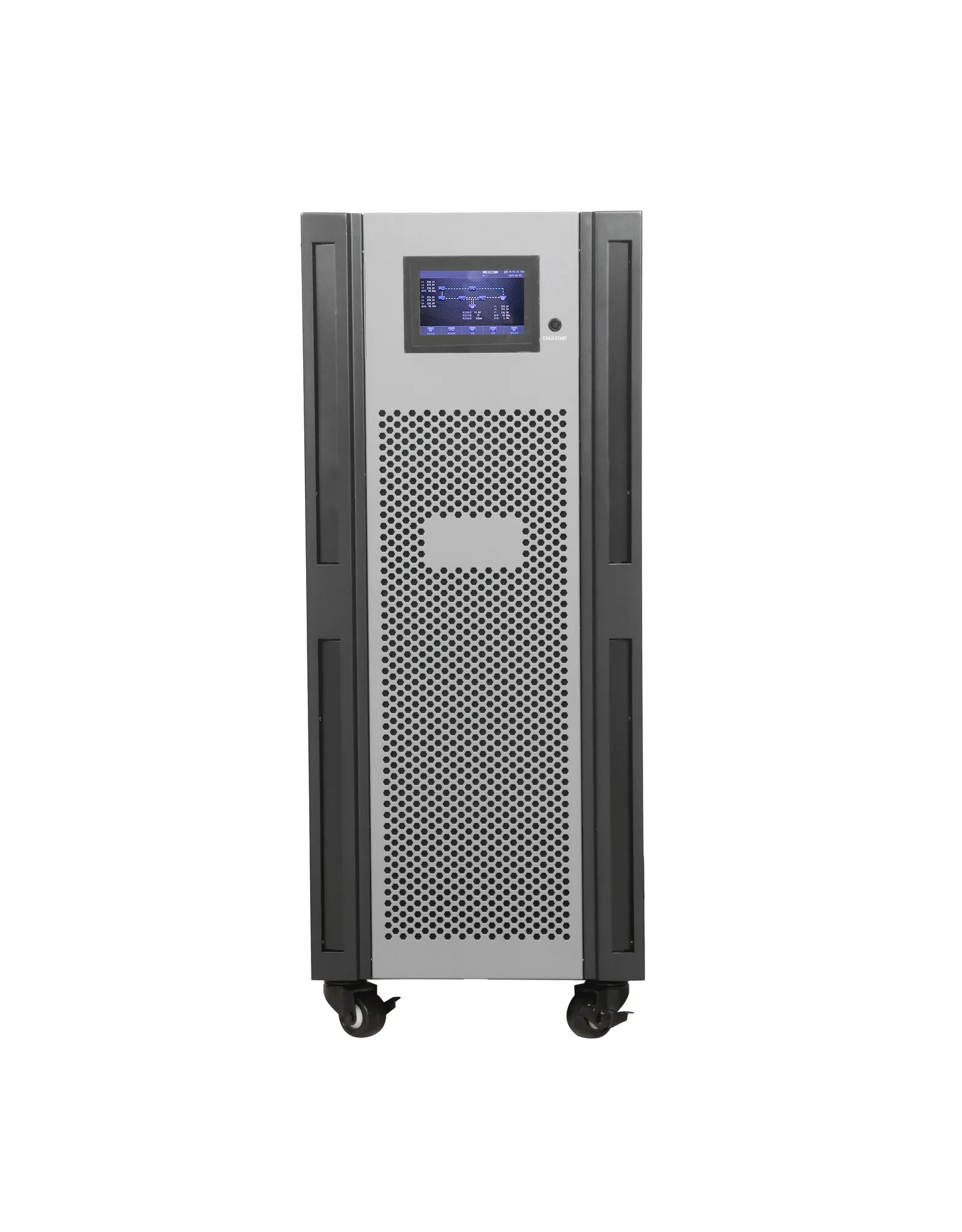

Holdvolt X33
Three-Phase Industrial UPS, 10–200 kVA
Three-phase double conversion with isolation transformer for plants, process lines and hard grids.
- 10–200kVA
- Cabinet
- 0.8
- Output power factor
- 0ms
- Transfer time
- Iso
- Output transformer

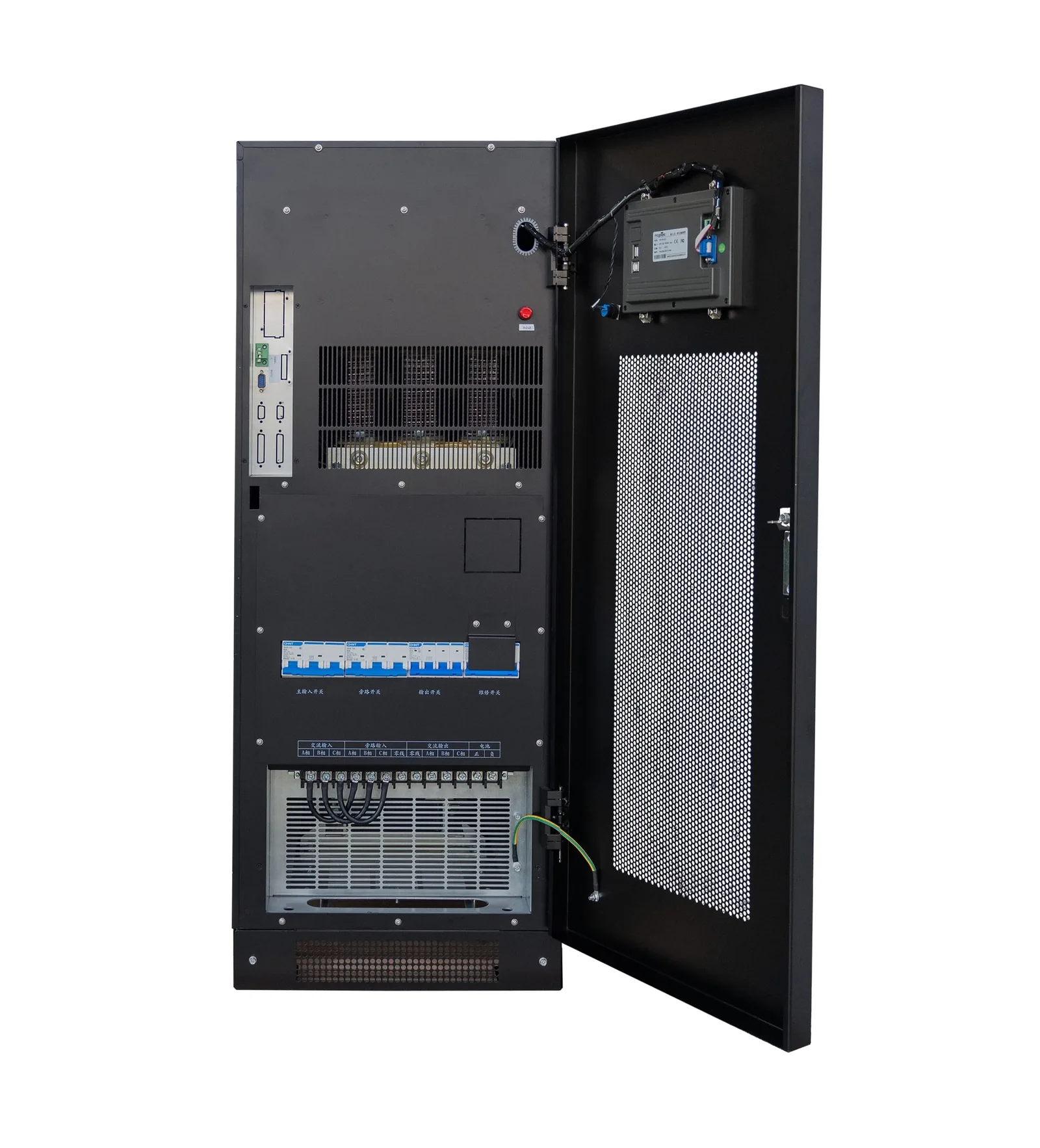

How it works
Double conversion, then an isolation transformer before the load.
- 0 ms
- mains to battery
- Isolation
- galvanic, inverter to load
- Neutral
- re-established at the transformer
Isolation
- Output isolation transformer
- Galvanic isolation
- High short-circuit capacity
Rectifier
- 6-pulse
- 12-pulse (option)
- Harmonic filter (option)
Control
- Touch screen
- RS-232 / RS-485
- Dry contacts
- SNMP (option)
Specifications
Factory catalog values, model by model.
10–200 kVA
| Model | X33-10K | X33-15K | X33-20K | X33-30K | X33-40K | X33-60K | X33-80K | X33-100K | X33-120K | X33-160K | X33-200K |
|---|---|---|---|---|---|---|---|---|---|---|---|
| Other | |||||||||||
| Capacity | 10KVA/8KW | 15KVA/12KW | 20KVA/16KW | 30KVA/24KW | 40KVA/32KW | 60KVA/48KW | 80KVA/64KW | 100KVA/80KW | 120KVA/96KW | 160KVA/128KW | 200KVA/160KW |
| Protections | output short circuit, overload, over-temp, low battery, output over/under-voltage, fan fault, lightning protection | ||||||||||
| ECO mode | Supported | ||||||||||
| EPO mode | Supported | ||||||||||
| Walk-in function | Supported | ||||||||||
| Parallel quantity | Up to 4 units | ||||||||||
| Input | |||||||||||
| Input voltage range | 380/400/415Vac;165-280(Ph-N)/285-485(Ph-Ph) | ||||||||||
| Input wiring | 3Ph+N+PE | ||||||||||
| Input frequency range | 50Hz±5(10%)/60Hz±5(10%) | ||||||||||
| Input power factor | ≥0.7 (without filter); ≥0.97 (with filter) | ||||||||||
| Rectifier technology | SCR (thyristor) | ||||||||||
| THDi | <50% (without filter); <15% (with filter) | ||||||||||
| Rectifier type | 6 pulse | ||||||||||
| Bypass | |||||||||||
| Bypass voltage range | 176-264Vac(Ph-N)/304-456Vac(Ph-Ph) | ||||||||||
| Bypass wiring | 3Ph+N+PE | ||||||||||
| Frequency tracking range | 50±5(10%)/60Hz±5(10%) | ||||||||||
| Bypass overload capability | 150%-180%1H-300s;>180%300S | ||||||||||
| Output | |||||||||||
| Output voltage | 3×380VAC/400VAC/415VAC 3Ph+N | ||||||||||
| Voltage regulation | ±1% | ||||||||||
| Output power factor | 0.8 | ||||||||||
| Frequency sync range | Utility mode / Battery mode: 50/60 Hz ± 0.01 Hz | ||||||||||
| Waveform | Sine wave | ||||||||||
| THDv | ≤2%(linear load);≤4%(non-linear load) | ||||||||||
| Phase unbalance | 120° ±1% (balanced load); 120° ±2% (50% unbalanced load) | ||||||||||
| Recovery time | Recover to 90% of rated value within 3 cycles | ||||||||||
| Crest factor | 3:1 (max) | ||||||||||
| Load power factor range | 0.6–1 (capacitive or inductive) | ||||||||||
| Unbalanced output voltage @ 100% unbalanced load | <1% | ||||||||||
| Current limiting | Severe overload, short circuit; RMS voltage limiting; inrush current; peak voltage limiting. | ||||||||||
| Transfer time | |||||||||||
| Transfer time (Utility → Battery) | 0ms | ||||||||||
| Transfer time (Inverter → Bypass) | Synchronized mode: seamless transfer; Non-synchronized mode: 10 ms. | ||||||||||
| Transfer to bypass | Immediate; overload 160%. | ||||||||||
| Return to inverter | Auto transfer after alarm is cleared | ||||||||||
| Overload | |||||||||||
| Overload capability | ≤110%60min;≤125%10min;≤150%1min;>150%200ms | ||||||||||
| Efficiency | |||||||||||
| Efficiency (online mode) | 89% | 89% | 90% | 90% | 91% | 91% | 92% | 92% | 92% | 92% | 92% |
| Efficiency (battery mode) | 90% | 90% | 91% | 91% | 92% | 92% | 93% | 93% | 93% | 93% | 93% |
| Battery | |||||||||||
| Rated DC voltage | 384VDC | ||||||||||
| Charging voltage | 395VDC-435VDC (Adjustable) | ||||||||||
| Battery quantity (12 V) | 29/30/31/32 Pcs (Adjustable) | ||||||||||
| Charging current | Max. = Capacity (kW) / Battery voltage (real-time) × max. current; max. current never exceeds 40 A. Max. 40 A; 5 A @ full load | ||||||||||
| Battery type | Sealed lead-acid; Ni-Cd | ||||||||||
| Display & communication | |||||||||||
| Communication ports | Dry contact, USB, RS232, RS485; 1 slot for communication card; optional SNMP | ||||||||||
| Control panel | 3.5" LCD; optional 5" color touch screen | ||||||||||
| Alarms | output overload, utility abnormal, UPS fault, low battery; history log supported | ||||||||||
| Environment | |||||||||||
| Operating temperature | 0-55°C | ||||||||||
| Storage temperature | -25–55°C(no battery) | ||||||||||
| Relative humidity | <95% RH(non-condensing) | ||||||||||
| Altitude | 0–1500 m at 100% load; above 1000 m, derate output power by 1% per 100 m. | ||||||||||
| Noise (1 m in front) | 70dB@100%load | ||||||||||
| IP rating | IP20 | ||||||||||
| Conformal coating (3-proof) | Standard | ||||||||||
| Dust filter | Standard | ||||||||||
| Physical | |||||||||||

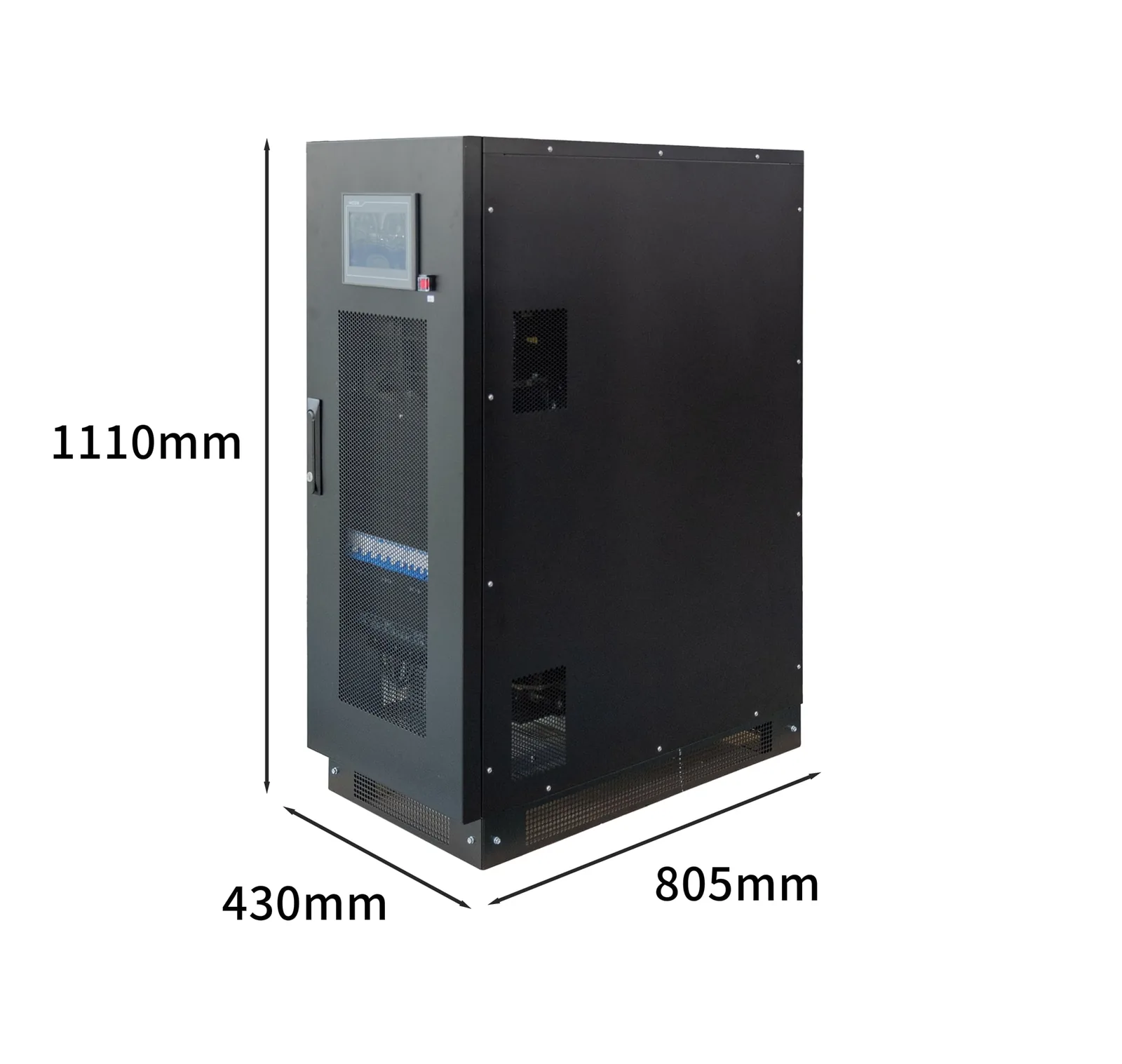

| Dimensions (W×D×H) mm | 560×360×900 | 560×360×900 | 560×360×900 | 683×450×1100 | 683×450×1100 | 821×432×1159 | 975×554×1286 | 975×554×1286 | 975×554×1286 | 1051×705×1646 | 1051×705×1646 |
| Weight (kg) | 108 | 146 | 146 | 220 | 256 | 297 | 400 | 472 | 573 | 720 | 790 |
Factory values. Specifications may change; confirm against the quotation.Swipe the table sideways.
