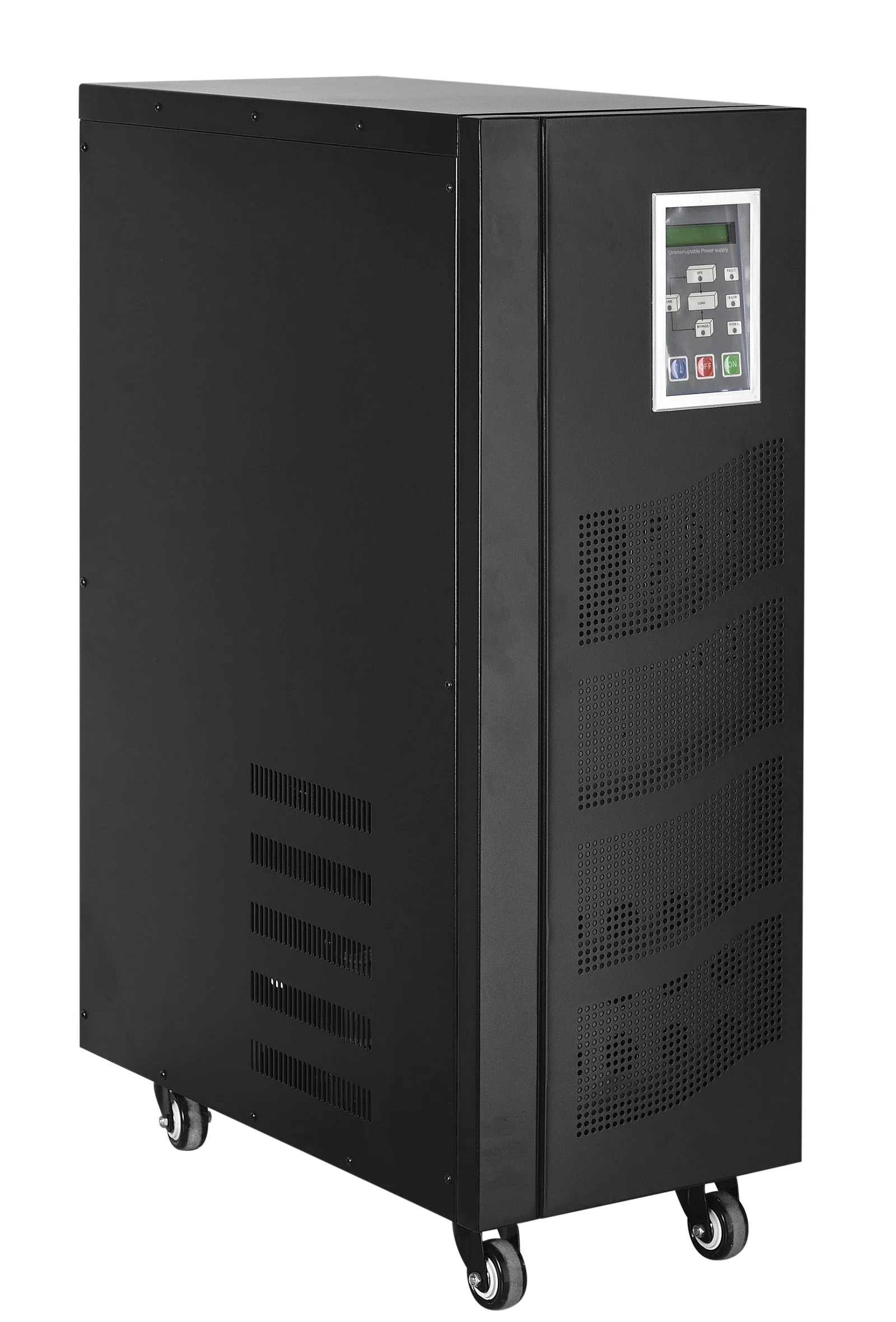

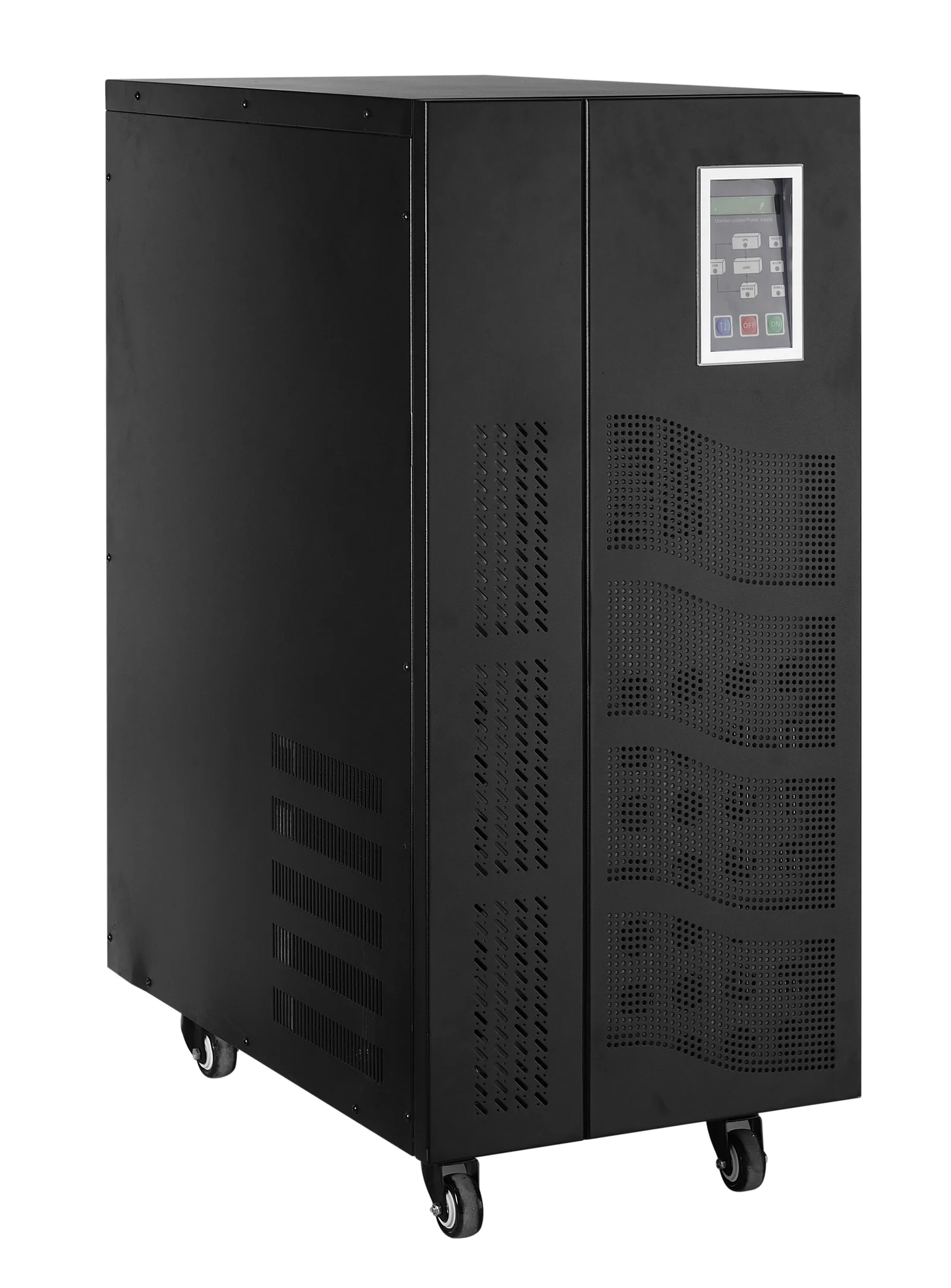

Holdvolt X11
Single-Phase Industrial UPS, 1–40 kVA
Online double conversion with an isolation transformer, for control panels, instruments and harsh rooms.
- 1–40kVA
- Tower
- 0ms
- Transfer time
- -10–50°C
- Operating temperature
- ±1%
- Output voltage regulation
How it works
Double conversion, then an isolation transformer before the load.
- 0 ms
- mains to battery
- Isolation
- galvanic, inverter to load
- Neutral
- re-established at the transformer
Isolation
- Output isolation transformer
- Galvanic isolation
- Solid neutral
Environment
- -10 to 50 °C
- To 2000 m
- EMI filtering
Options
- Input isolation transformer
- 110 / 220 VAC conversion
- Surge protection
Specifications
Factory catalog values, model by model.
1–40 kVA
| Model | X11-1K | X11-2K | X11-3K | X11-4K | X11-6K | X11-8K | X11-10K | X11-15K | X11-20K | X11-30K | X11-40K |
|---|---|---|---|---|---|---|---|---|---|---|---|
| Other | |||||||||||
| Capacity | 1KVA | 2KVA | 3KVA | 4KVA | 6KVA | 8KVA | 10KVA | 15KVA | 20KVA | 30KVA | 40KVA |
| Protection: battery | Low-battery auto shutdown; auto restart when utility returns; miniature circuit breaker protection | ||||||||||
| Protection: over-temperature | Internal temperature > 85°C: transfer to bypass automatically | ||||||||||
| Protection: output short circuit | Current limiting; auto shutdown; miniature circuit breaker protection | ||||||||||
| Protection: UPS abnormal | Transfer to bypass automatically; load powered by utility | ||||||||||
| Noise filter | 10–100KHz at 40dB;100KHz–100MHz at 70dB | ||||||||||
| Note (custom options) | Custom options available: input isolation transformer, surge protector, 220 VAC input / 110 VAC output or 110 VAC input / 220 VAC output, non-standard special versions, and medical UPS. | ||||||||||
| Input | |||||||||||
| Input voltage | Single-phase 160–275 VAC (optional AVR: 110–300 VAC) | ||||||||||
| Input frequency | 50(60)Hz±5% | ||||||||||
| Bypass | |||||||||||
| Voltage range | Single-phase 160–275 VAC (optional AVR: 110–300 VAC) | ||||||||||
| Frequency tracking range | 50(60)Hz±5% | ||||||||||
| Max. current | 6A | 12A | 18A | 24A | 34A | 45A | 56A | 82A | 110A | 160A | 220A |
| Output | |||||||||||
| Output voltage | Single-phase 220VAC | ||||||||||
| Output frequency | 50(60)Hz±5% | ||||||||||
| Voltage regulation | ±1% | ||||||||||
| Frequency stability | ±0.5%(when utility fails) | ||||||||||
| Waveform | SPWM sine wave | ||||||||||
| Power factor | 0.8 (lagging) (optional 0.9) | ||||||||||
| THD | <3%(linear load) | ||||||||||
| Transient response | Voltage change ≤ 3% (100% load step on/off) | ||||||||||
| Crest factor | 3:1(Max.) | ||||||||||
| Battery | |||||||||||
| Battery voltage | 48VDC (optional 192VDC) | 48VDC (optional 192VDC) | 48VDC (optional 192VDC) | 192VDC | 192VDC | 192VDC | 192VDC | 192VDC | 192VDC | 192VDC | 192VDC |
| Battery type | Maintenance-free lead-acid battery | ||||||||||
| Recharge time | 8–10 hours to reach 90% capacity | ||||||||||
| Display & communication | |||||||||||
| Alarm: utility failure | Buzzer beeps once every 4 seconds | ||||||||||
| Alarm: utility abnormal | Buzzer beeps once every 4 seconds; utility mode indicator flashes | ||||||||||
| Alarm: battery low | Buzzer beeps once every 1 second; battery mode indicator flashes; low-battery LED on | ||||||||||
| Alarm: overload | Overload LED on; continuous buzzer | ||||||||||
| Alarm: UPS fault | Fault LED on; continuous buzzer | ||||||||||
| Control panel | LED+LCD | ||||||||||
| LCD display | UPS status; input/output voltage; input/output frequency; battery voltage; output load (%); inverter temperature | ||||||||||
| Low-battery indicator | On when battery voltage is low | ||||||||||
| Overload indicator | On when overloaded | ||||||||||
| Fault indicator | On when fault occurs | ||||||||||
| UPS status | Utility mode; Battery mode; Inverter; Bypass; UPS abnormal | ||||||||||
| Communication port | RS232 (external SNMP card supported); optional RS485 and DB9 dry contacts | ||||||||||
| Overload | |||||||||||
| Protection: overload | 110%: normal; 125%: transfer to bypass after 10 min; 150%: after 1 min; >150%: after 200 ms; auto recovery when load returns to normal | ||||||||||
| Environment | |||||||||||
| Operating temperature | -10–50°C | ||||||||||
| Relative humidity | 20–90% RH (non-condensing) | ||||||||||
| Altitude | < 2000 m (derate output by 2% for every +500 m) | ||||||||||
| Noise (1 m in front) | <55dB | ||||||||||
| Physical | |||||||||||
| Wiring method (I/O) | Terminal block | ||||||||||
| Net weight (no battery), kg | 46 | 63 | 75 | 68 | 75 | 110 | 115 | 150 | 200 | 245 | 285 |
| Dimensions (W×D×H) mm | 200×530×460 | 200×620×540 | 200×620×540 | 230×580×550 | 230×580×550 | 230×580×700 | 310×590×870 | 310×590×870 | 435×680×900 | 435×680×1000 | 435×680×1000 |
| Efficiency | |||||||||||
| Overall efficiency | >85% (optional 90–95%) | ||||||||||
| Transfer time | |||||||||||
| Transfer time (utility failure) | 0ms | ||||||||||
Factory values. Specifications may change; confirm against the quotation.Swipe the table sideways.
Where it fits
Applications and guides for this range.
Manufacturing
A half-second dip can stop a line, scrap a batch and reset every PLC. We size industrial and online UPS systems for controls, drives and process loads, not just the office IT room.
ApplicationOil, Gas and Petrochemical
Control systems, safety instrumentation and telemetry must stay powered through grid faults and generator changeovers. We build transformer-based UPS systems for the electrical and control rooms of process sites.
GuideIndustrial Isolation Transformer UPS: When Galvanic Isolation Matters
An isolation transformer breaks the direct conductive path between mains and load. In an industrial uninterruptible power supply it lets you create a clean new neutral, block common-mode noise and ride out the earthing problems that high-frequency units pass straight through.
GuideTransformer-Based vs Transformerless Online UPS: How to Choose
Choose a transformer-based online UPS for motors, heavy inrush, poor or generator-fed supplies and sites that need galvanic isolation. Choose a transformerless high-frequency unit for IT, control and electronic loads where size and efficiency count for more.
