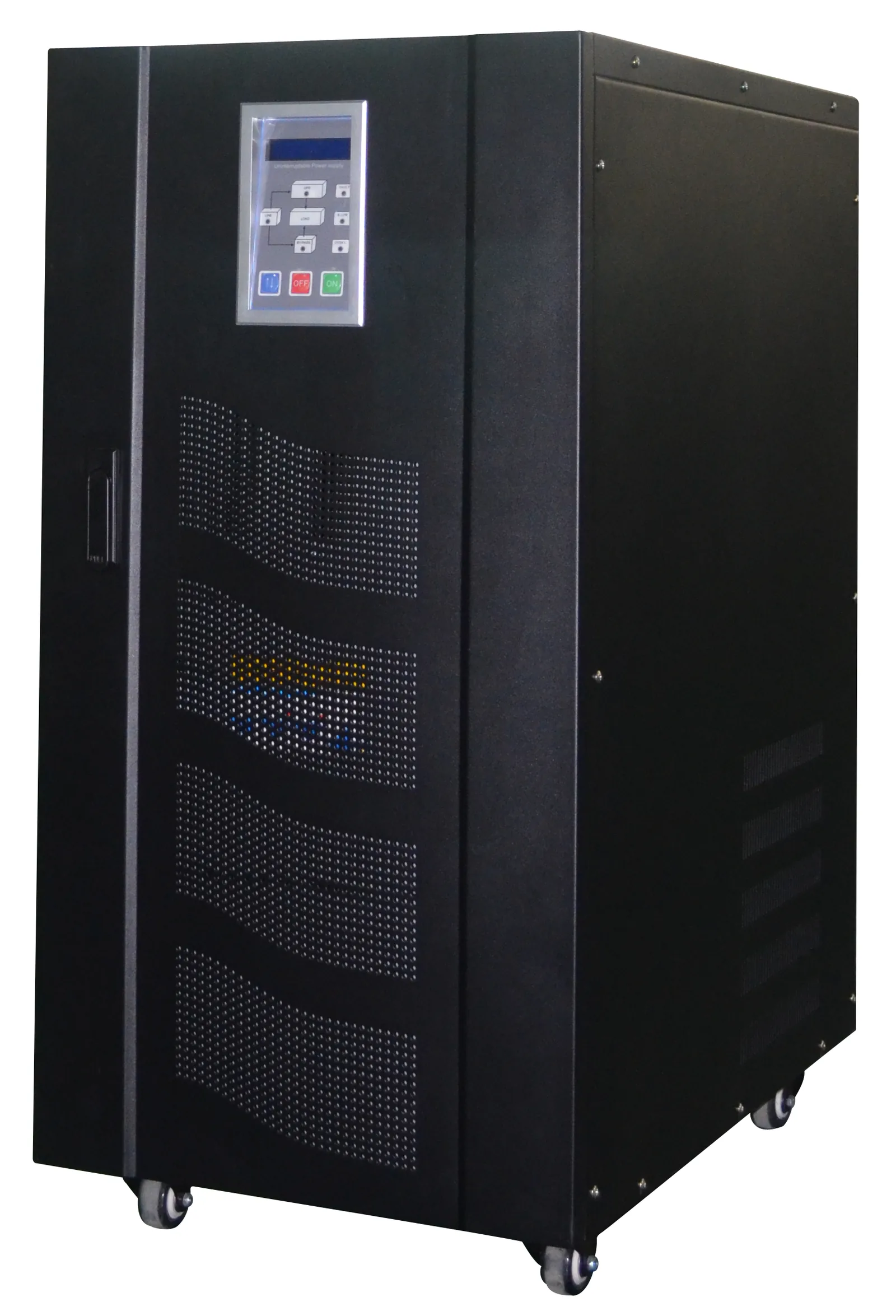

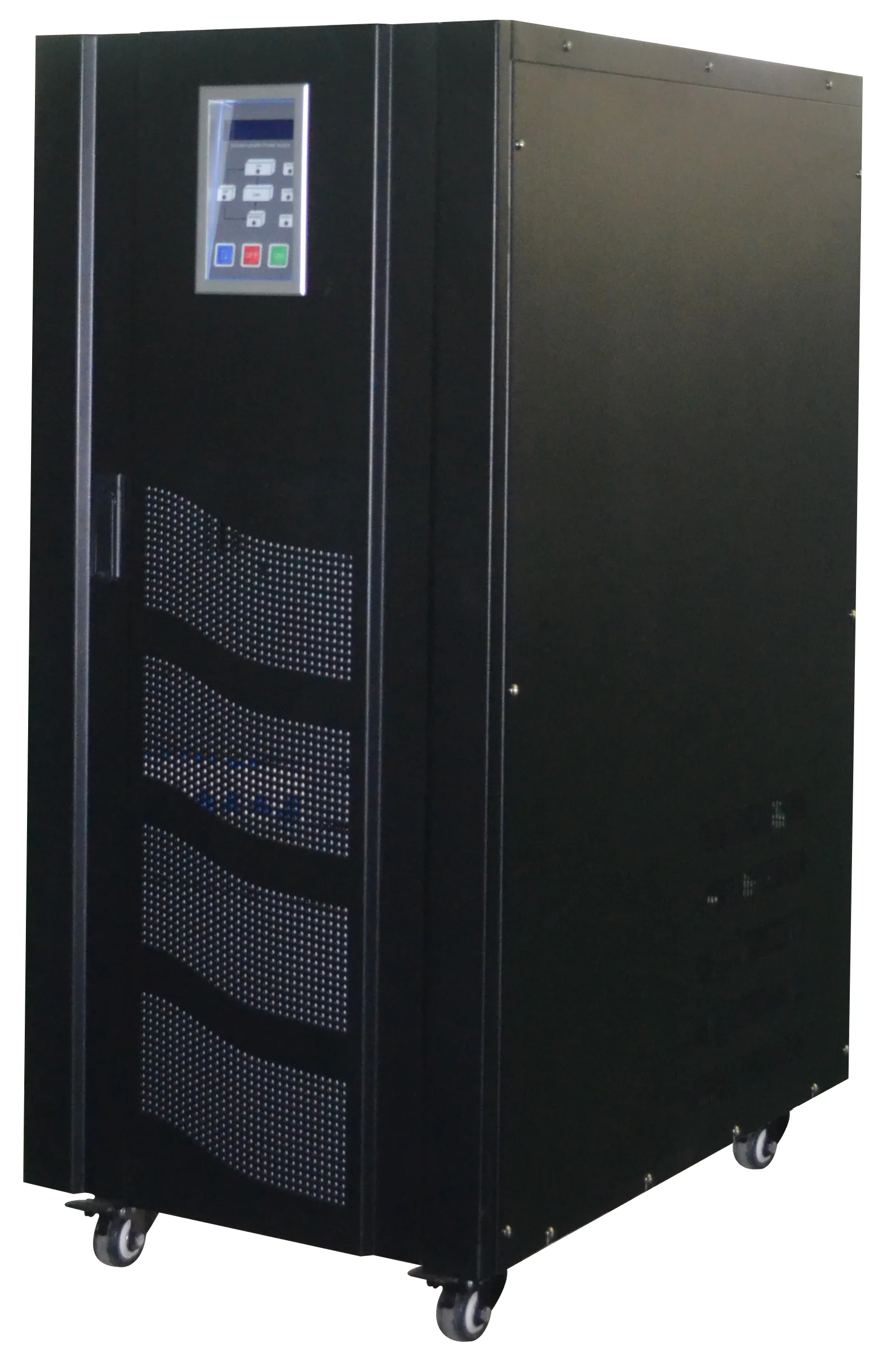

Holdvolt X31
Three-In, Single-Out Industrial UPS, 6–120 kVA
Three-phase feed, single-phase isolated output, for large single-phase process and control loads.
- 6–120kVA
- Tower and cabinet
- 0ms
- Transfer time
- 1Ph
- Isolated single-phase output
How it works
Double conversion, then an isolation transformer before the load.
- 0 ms
- mains to battery
- Isolation
- galvanic, inverter to load
- Neutral
- re-established at the transformer
Isolation
- Output isolation transformer
- Galvanic isolation
Environment
- Wide temperature range
- EMI filtering
Specifications
Factory catalog values, model by model.
6–120 kVA
| Model | X31-6K | X31-10K | X31-15K | X31-20K | X31-25K | X31-30K | X31-40K | X31-60K | X31-80K | X31-100K | X31-120K |
|---|---|---|---|---|---|---|---|---|---|---|---|
| Other | |||||||||||
| Capacity | 6KVA | 10KVA | 15KVA | 20KVA | 25KVA | 30KVA | 40KVA | 60KVA | 80KVA | 100KVA | 120KVA |
| Protection: battery | Low-battery auto shutdown; auto restart when utility returns; miniature circuit breaker protection | ||||||||||
| Protection: over-temperature | Internal temperature > 85°C: transfer to bypass automatically | ||||||||||
| Protection: output short circuit | Current limiting; auto shutdown; miniature circuit breaker protection | ||||||||||
| Protection: UPS abnormal | Transfer to bypass automatically; load powered by utility | ||||||||||
| Noise filter | 10–100KHz at 40dB;100KHz–100MHz at 70dB | ||||||||||
| Note (custom options) | Custom options available: input isolation transformer, surge protector, 220 VAC input / 110 VAC output or 110 VAC input / 220 VAC output, non-standard special versions, and medical UPS. | ||||||||||
| Input | |||||||||||
| Input voltage | 3-phase 380VAC±25% | 3-phase 380VAC±25% | 3-phase 380VAC±25% | 3-phase 380VAC±25% | 3-phase 380VAC±25% | 3-phase 380VAC±25% | 3-phase 380VAC±25% | 3-phase 380VAC±15%, ±25% (optional) | 3-phase 380VAC±15%, ±25% (optional) | 3-phase 380VAC±15%, ±25% (optional) | 3-phase 380VAC±15%, ±25% (optional) |
| Input frequency | 50(60)Hz±5% | ||||||||||
| Bypass | |||||||||||
| Voltage range | Single-phase 160–275 VAC (optional AVR: 110–300 VAC) | ||||||||||
| Frequency tracking range | 50(60)Hz±5% | ||||||||||
| Output | |||||||||||
| Output voltage | Single-phase 220VAC | ||||||||||
| Output frequency | 50(60)Hz±5% | ||||||||||
| Voltage regulation | ±1% | ||||||||||
| Frequency stability | ±0.5%(when utility fails) | ||||||||||
| Waveform | SPWM sine wave | ||||||||||
| Power factor | 0.8 (lagging) (optional 0.9) | ||||||||||
| THD | <3%(linear load) | ||||||||||
| Transient response | Voltage change ≤ 3% (100% load step on/off) | ||||||||||
| Crest factor | 3:1(max) | ||||||||||
| Max. current | 10A | 16A | 24A | 32A | 46 | 56A | 76A | 95A | 126A | 160A | 190A |
| Battery | |||||||||||
| Battery voltage | 192VDC | 192VDC | 192VDC | 192VDC | 192/240VDC (optional) | 192/240VDC (optional) | 192/240VDC (optional) | 384VDC | 384VDC | 384VDC | 384VDC |
| Battery type | Maintenance-free lead-acid battery | ||||||||||
| Recharge time | 8–10 hours to reach 90% capacity | ||||||||||
| Display & communication | |||||||||||
| Alarm: utility failure | Buzzer beeps once every 4 seconds | ||||||||||
| Alarm: utility abnormal | Buzzer beeps once every 4 seconds; utility mode indicator flashes | ||||||||||
| Alarm: battery low | Buzzer beeps once every 1 second; battery mode indicator flashes; low-battery LED on | ||||||||||
| Alarm: overload | Overload LED on; continuous buzzer | ||||||||||
| Alarm: UPS fault | Fault LED on; continuous buzzer | ||||||||||
| Control panel | LCD+LED | ||||||||||
| LCD display | UPS status; input/output voltage; input/output frequency; battery voltage; output load (%); inverter temperature | ||||||||||
| Low-battery indicator | On when battery voltage is low | ||||||||||
| Overload indicator | On when overloaded | ||||||||||
| Fault indicator | On when fault occurs | ||||||||||
| UPS status | Utility mode; Battery mode; Inverter; Bypass; UPS abnormal | ||||||||||
| Communication port | RS232 (external SNMP card supported); optional RS485 and DB9 dry contacts | ||||||||||
| Overload | |||||||||||
| Protection: overload | 110%: normal; 125%: transfer to bypass after 10 min; 150%: after 1 min; >150%: after 200 ms; auto recovery when load returns to normal | ||||||||||
| Environment | |||||||||||
| Operating temperature | -10–50°C | ||||||||||
| Relative humidity | 20–90% RH (non-condensing) | ||||||||||
| Altitude | < 2000 m (derate output by 2% for every +500 m) | ||||||||||
| Noise (1 m in front) | <58dB | ||||||||||
| Physical | |||||||||||
| Wiring method (I/O) | Terminal block | ||||||||||
| Net weight (no battery), kg | 85 | 130 | 140 | 220 | 260 | 300 | 330 | 479 | 504 | 640 | 700 |
| Dimensions (W×D×H) mm | 230×580×700 | 310×590×870 | 310×590×870 | 435×680×900 | 435×680×1000 | 435×680×1000 | 435×680×1000 | 800×800×1480 | 800×800×1480 | 800×800×1800 | 800×800×1800 |
| Efficiency | |||||||||||
| Overall efficiency | >87% | ||||||||||
| Transfer time | |||||||||||
| Transfer time (utility failure) | 0ms | ||||||||||
| Transfer time (inverter / bypass) | ≤1ms | ||||||||||
Factory values. Specifications may change; confirm against the quotation.Swipe the table sideways.
