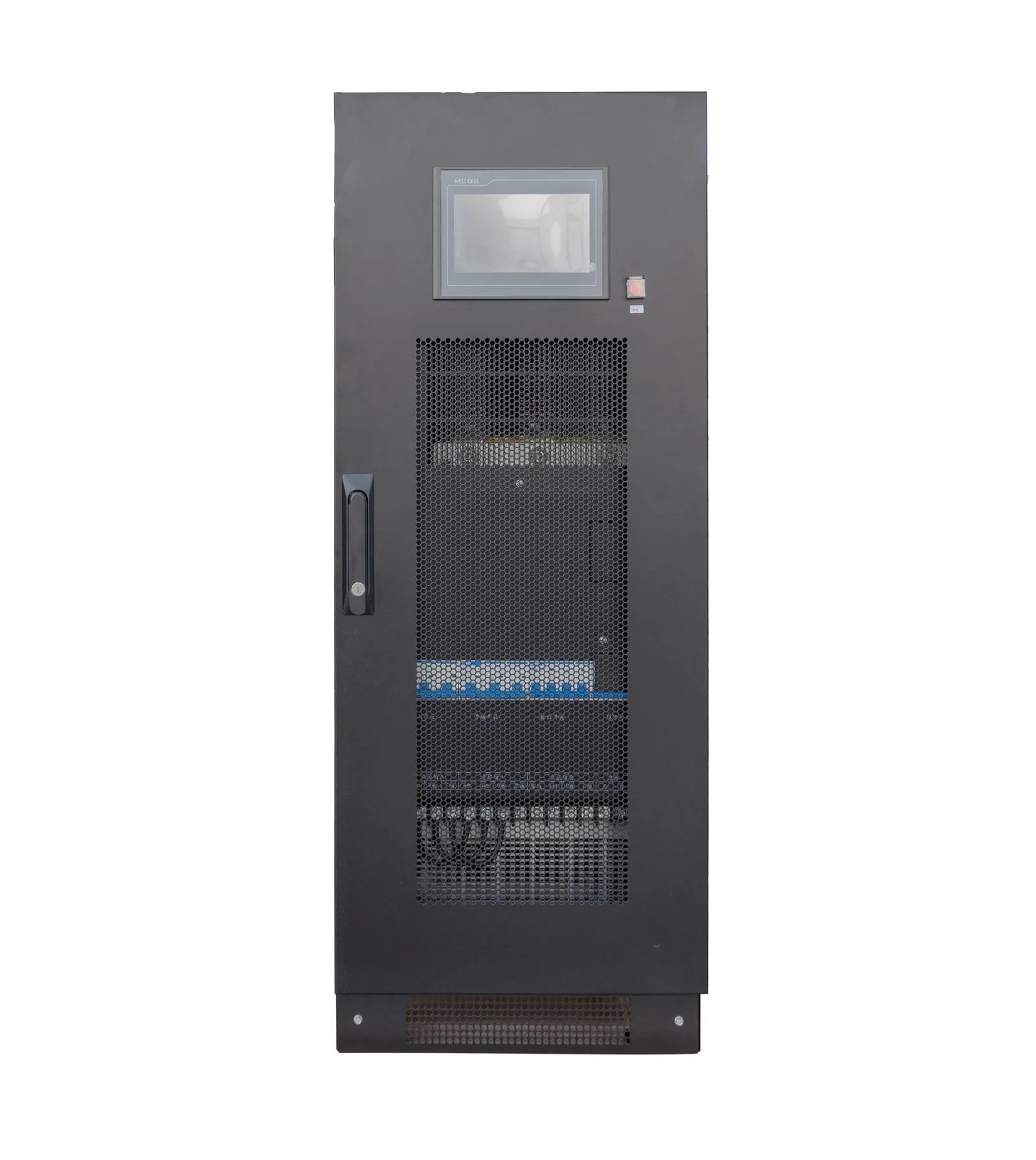

Holdvolt X33
High-Power Industrial UPS, 300–800 kVA
Large-frame transformer-based systems for whole plants and process buildings, built per project.
- 300–800kVA
- Cabinet
- 6 / 12
- Pulse rectifier
- ≥0.97
- Input power factor
- 98%
- ECO mode, up to
How it works
Double conversion, then an isolation transformer before the load.
- 0 ms
- mains to battery
- Isolation
- galvanic, inverter to load
- Neutral
- re-established at the transformer
Rectifier
- 6-pulse
- 12-pulse
- Harmonic filter (option)
Isolation
- Output isolation transformer
Control
- RS-232 / RS-485
- Dry contacts
- SNMP (option)
Specifications
Factory catalog values, model by model.
300–800 kVA
| Model | X33-300K | X33-400K | X33-500K | X33-600K | X33-800K |
|---|---|---|---|---|---|
| Other | |||||
| Capacity | 300kVA | 400kVA | 500KVA | 600KVA | 800kVA |
| Output isolation transformer | Built-in (from product introduction / features) | ||||
| Capacity | 300KVA/270KW | 400KVA/360KW | 500KVA/450KW | 600KVA/540KW | 800KVA/720KW |
| Input | |||||
| Wiring method | 3Ph+N+PE | ||||
| Rated input voltage | 380/400/415Vac±25% | ||||
| Input frequency range | 45–55Hz/55–65Hz | ||||
| Power factor | ≥0.97 | ||||
| Rectifier pulse | 6 pulse / 12 pulse | 6 pulse / 12 pulse | 12 pulse | 12 pulse | 12 pulse |
| Rated voltage | 380/400/415VAC 3Ph+N+PE | ||||
| Rated frequency | 50/60Hz | ||||
| Voltage range | ±15%; ±25% (optional) | ||||
| Frequency range | 45-65Hz | ||||
| Input power soft start | 0–100%, 5–300s adjustable | ||||
| Power factor | >0.98 (with filter) | ||||
| THDi | <4.5% (with filter) | ||||
| Bypass | |||||
| Wiring method | 3Ph+N+PE | ||||
| Input frequency | 50/60Hz | ||||
| Frequency range | ±2 (±0.5, ±1, ±2, ±3 optional) | ||||
| Voltage range | ±15%; ±25% (optional) | ||||
| Frequency range | 50/60Hz±10% | ||||
| Max. static bypass current | Bypass current capacity: 1000% for 100 ms | ||||
| Output | |||||
| Rated output voltage | 380/400/415Vac±1% | ||||
| Output frequency | automatic tracking of input frequency | ||||
| Waveform | Sine wave | ||||
| Power factor | 0.8 or 0.9 | ||||
| Output voltage harmonics | ≤1%(100% linear load) | ||||
| Crest factor | 3:1 (MAX.) | ||||
| Inverter voltage | 380/400/415VAC 3Ph+N+PE | ||||
| Voltage regulation | ±1% (steady-state); ±3% (transient) | ||||
| Output frequency | 50/60Hz | ||||
| Frequency (battery mode) | 50/60Hz±0.05Hz | ||||
| Power factor | PF 0.9 (90 kW per 100 kVA) | ||||
| Steady-state response time | <5ms | ||||
| Phase shift | Balanced load <1°, 100% unbalanced load <1° | ||||
| THDv | 100% linear load <1%; 100% non-linear load <3% | ||||
| Overload | |||||
| Overload capacity | Bypass activation at ≤110% load for 60 minutes; at ≤125% load for 10 minutes; and at ≤150% load for 1 minute. | ||||
| Overload capability | At PF 0.9: 110% 1 h; 125% 10 min; 150% 1 min | ||||
| Short-circuit current limiting | 3-phase: 150% for 5 s; Single-phase: 290% for 5 s | ||||
| Efficiency | |||||
| Efficiency | ≥93% | ||||
| System efficiency (full load) | Up to 94%; ECO mode up to 98% | ||||
| Battery | |||||
| Battery voltage | 360–408Vdc | 360–408Vdc | 480Vdc | 480Vdc | 480Vdc |
| DC voltage regulation (charging) | 1% | ||||
| Battery voltage | 384VDC | 384VDC | 480VDC | 480VDC | 480VDC |
| Display & communication | |||||
| Display | Input and output voltage, frequency, capacity, battery voltage, current, battery status, load percentage, UPS status, record | ||||
| Communication | RS232, RS485, dry contact, SNMP (optional) | ||||
| Environment | |||||
| Operating temperature | 0–40°C | ||||
| Storage temperature | -25-55 (No battery included) | ||||
| Altitude | < 1000m (non-condensable) | ||||
| Relative humidity | 0–95% (non-condensing) | ||||
| Noise (1 m in front) (dB) | <72dB | <72dB | <75dB | <75dB | <75dB |
| Operating temperature | 0–40°C | ||||
| Relative humidity | 0–95% RH (non-condensing) | ||||
| Storage temperature | -25–70°C (no battery) | ||||
| Altitude | ≤ 1000 m at rated load; above 1000 m, derate load by 1% per 100 m | ||||
| Noise (1 m in front) | 55–65dB | ||||
| IP rating | IP20 | ||||
| Physical | |||||
| Dimensions (D×W×H) mm | 1000*1400*1900 (6 pulse); 1000*1640*1900 (12 pulse) | 1000*1400*1900 (6 pulse); 1000*1640*1900 (12 pulse) | 1000*2580*1900 (12 pulse) | 1040*2800*1900 (12 pulse) | 1040*2800*1900 (12 pulse) |
| Net weight (kg) | 1560 (6 pulse); 2395 (12 pulse) | 1640 (6 pulse); 2510 (12 pulse) | 3510 (12 pulse) | 3950 (12 pulse) | 5000 (12 pulse) |
| Weight (kg) | 1600 | 2100 | 3890 | 4160 | 5390 |
| Dimensions (W×D×H) mm | 1400X1100X2000 | 1640X850X1900 | 2938X1100X1900 | 2938X1100X1900 | 3955X1100X1900 |
Factory values. Specifications may change; confirm against the quotation.Swipe the table sideways.
